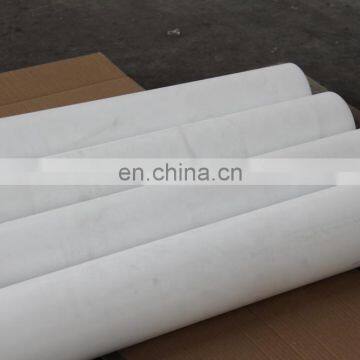

Natural plastic UHMWPE Solid round Bar/HDPE Solid Bar /Polyethylene Solid Bar
Specifications
UHMW PE Bar
1.Superior impact resistance
2.Non-Toxic
3.Non-sticking
4.Outstanding abrasion resistance

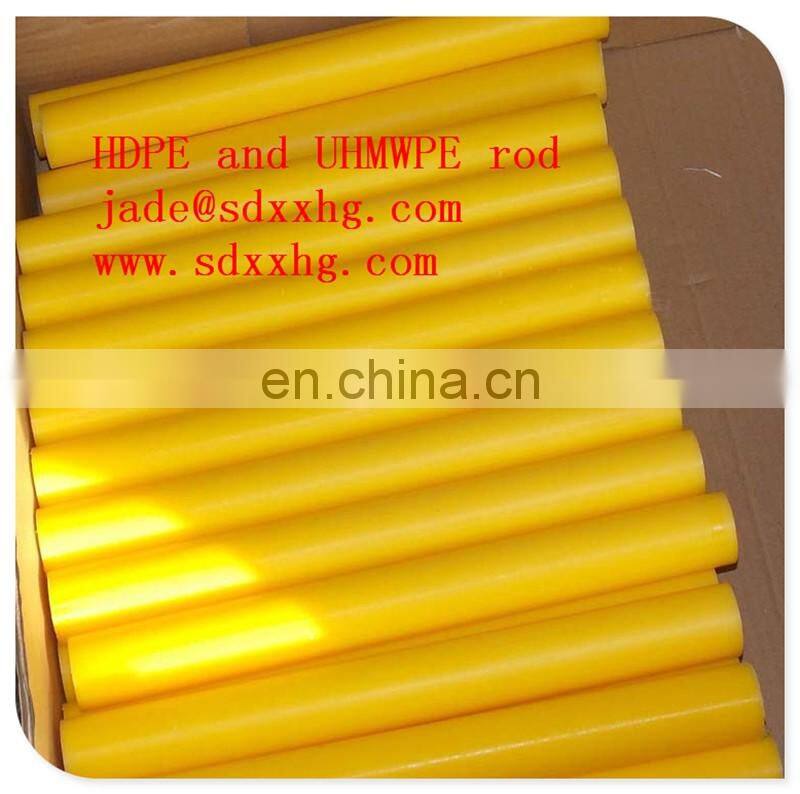

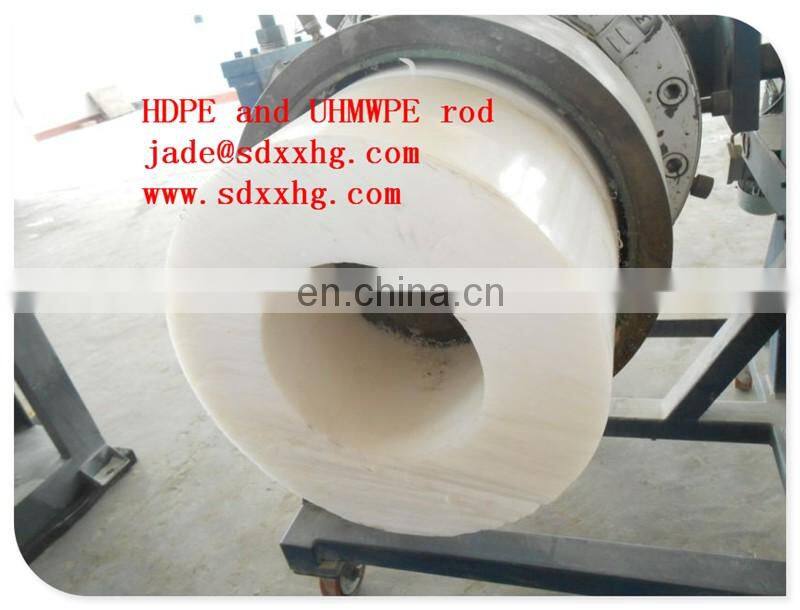

Natural plastic UHMWPE Solid round Bar/HDPE Solid Bar /Polyethylene Solid Bar

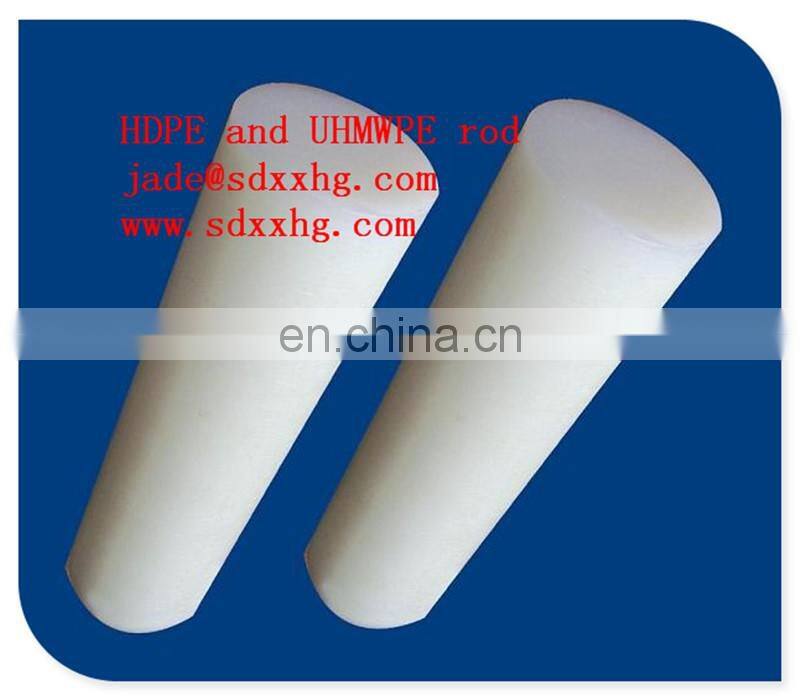

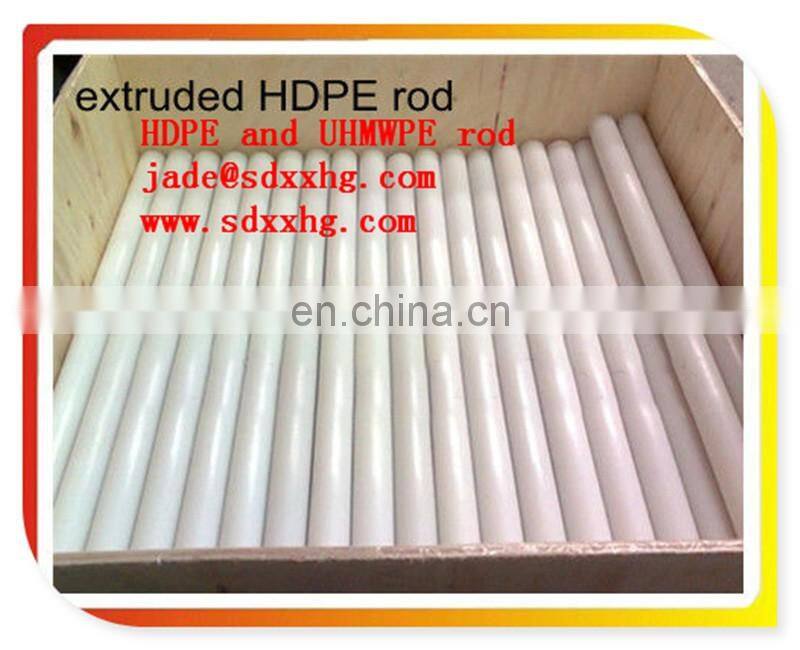

Natural plastic UHMWPE Solid round Bar/HDPE Solid Bar /Polyethylene Solid Bar

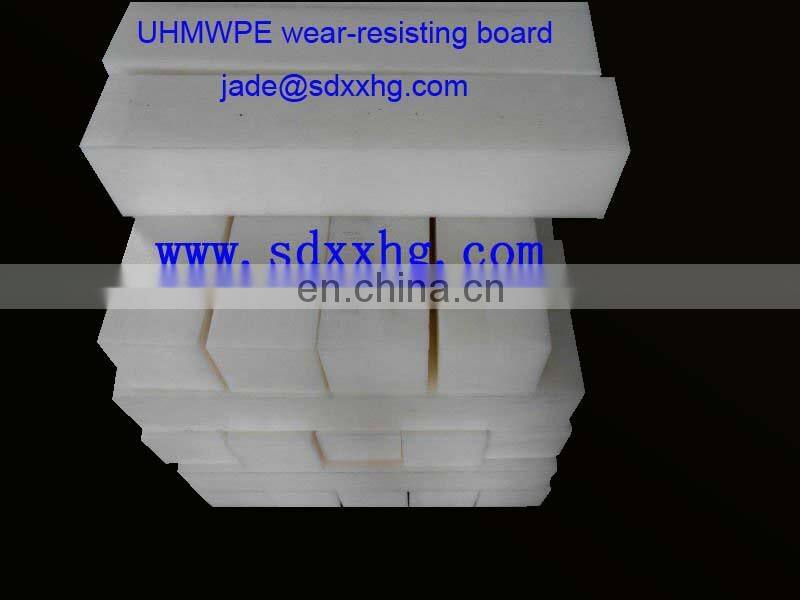

Natural plastic UHMWPE Solid round Bar/HDPE Solid Bar /Polyethylene Solid Bar

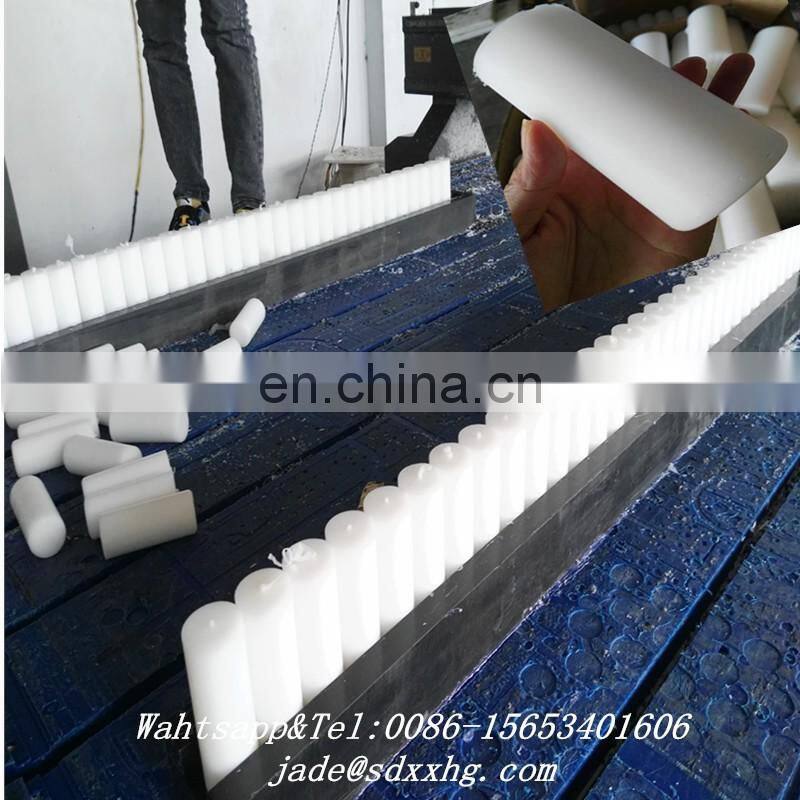

Natural plastic UHMWPE Solid round Bar/HDPE Solid Bar /Polyethylene Solid Bar

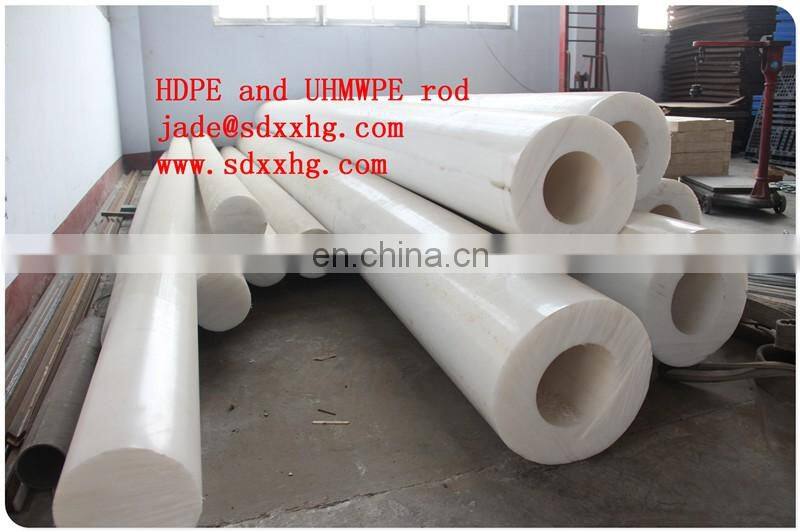

Natural plastic UHMWPE Solid round Bar/HDPE Solid Bar /Polyethylene Solid Bar

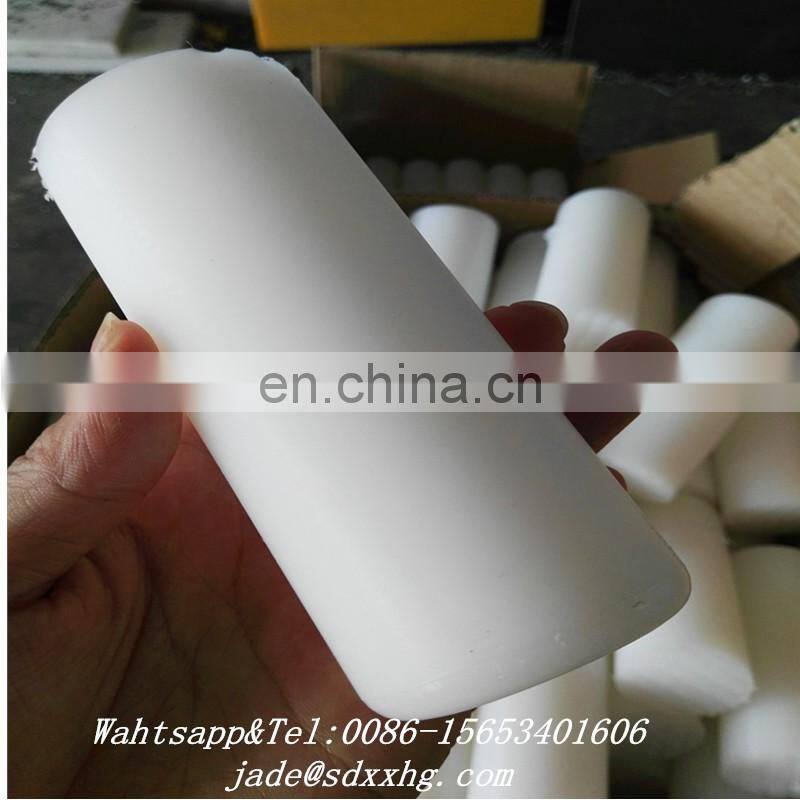

Natural plastic UHMWPE Solid round Bar/HDPE Solid Bar /Polyethylene Solid Bar

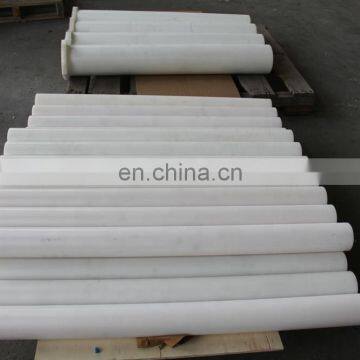

Natural plastic UHMWPE Solid round Bar/HDPE Solid Bar /Polyethylene Solid Bar
Natural plastic UHMWPE Solid round Bar/HDPE Solid Bar /Polyethylene Solid Bar
UHMW PE Bar
Name: Ultra High Molecular Weight Polyethylene

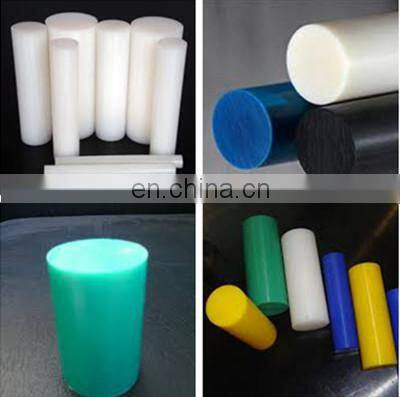

Color: White, Black,Blue,Green, other color can be customized.
Diameter:2mm-250mm
Length:Max.1000mm,other length can be customized.
I. UHMW PE Description
UHMW-PE is a super engineering plastic that is probably not as well known as some other engineering plastics but can out perform its relatives in a number of important areas. UHMW (aka UHMW-PE) offers a combination of excellent properties outstanding abrasion resistance, superior impact resistance, non-sticking and self-lubricating properties and excellent mechanical properties, even in cryogenic conditions. UHMW product reduces noise from impact & vibration. It is a self-lubricating material that is chemical, corrosion, and wear-resistant. And its food safe. The weight is light, the is 1/8 of the rolled steel. Lifespan is longer than steel. The wear resistance is 3 to 7 times than that of carbon steel and stainless steel.
II. UHMW PE Characteristics
1. UHMW exhibits virtually no water absorption
2, Non-Toxic
3. Low coefficient of friction
4. Corrosion resistant
5. Abrasion and impact resistant
6. Wear Resistant
7. Great liner material for industrial material handling applications
8. no stickness ,food safe
III. UHMW PE Application
1. Chemical Engineering: Corrosion and wear resistantance mechanical parts
2. Thermal power: coal handling, storage of coal, warehousing chute lining
3. Coal processing: sieve plate, filter, U-underground coal chute
4. Concrete: cement raw and finished product silo silo lining
5. Grain: food storage or chute lining
6. Mining: sieve plate, chute linings, wear anti-bonding part
7. Food industry: star-shaped wheel, transmission timing bottle screw, bearings, guide
rollers, guides, slide blocks, etc.
IV. UHMW PE Certificate
. UHMW PE Data Sheet
UHMWPE Typical Properties
Specific Gravity, 73°F | .944 |
|
Tensile Strength @ Yield, 73°F | 3250 | psi |
Tensile Modulus of Elasticity, 73°F | 155,900 | psi |
Tensile Elongation (at break), 73°F | 330 | % |
Flexural Modulus of Elasticity | 107,900 | psi |
Compresive Strength at 2% deformation | 400 | psi |
Compressive Strength 10% Deformation | 1200 | psi |
Deformation Under Load | 6-8 | % |
Compressive Modulus of Elasticity, 73°F | 69,650 | psi |
Hardness, Durometer (Shore "D" scale) | 69 |
|
Izod Impact, Notched @ 73°F | 30 | ft.lbs./in. of notch |
Coefficient of Friction (Dry vs Steel) Static | .17 |
|
Coefficient of Friction (Dry vs Steel) Dynamic | .14 |
|
Sand Wheel Wear/Abrasion Test | 95 | UHMW=100 |
Coefficient of Linear Thermal Expansion | 11.0 | in/in/°F x 10-5 |
Melting Point (Crystaline Peak) | 279-289 | °F |
Volume Resistivity | >1015 | ohm-cm |
Surface Resistivity | >1015 | ohm-cm |
Water Absorption, Immersion 24 Hours | Nil | % |
Water Absorption, Immersion Saturation | Nil | % |
Machinability Rating | 5 | 1 = easy, 10 = difficult |
Sheet Thickness Availability (Off the Shelf) | .250 - 2.0 | inches |
Why Choose Us
l More than 15 years' professional manufacturing experience with own factory.
l Virgin 100% material produced, high quality with good surface and color make ensured
l GB/T 19001-2008 ; ISO 9001:2008 certification.
l Competitive price, In stock, Fast delivery, and Excellent service.
l OEM available. Special character is available :According to different requirements with different application, color, size, shape and special specifications can be customized, such as anti-UV, anti-static and so on.
Our UHMW-PE sheet Characters:
1.very flat on the surface
2.The thickness tolerance is +2 -0,some made according to your requirements.
3.The color is pure and any color can be made by us.
4.We can give you an accurate size of UHMW-PE Sheet with advanced machine.
5.Different shaped UHMW-PE Sheets also can be made by us like bending sheet.
6.According to different requirements with different application, special specifications can be customized, like anti-UV, fire-resistant,anti-static and with other characters.
UHMWPE Advantages & Key Features:
--Highest abrasion resistance of any polymer, 6 times more wear resistant than steel
--Anti-Weather & Anti-Aging
--Self-lubricating, Very low coefficient of friction
--Excellent chemical & corrosion resistant
--superior impact resistant, Noise- absorption, Vibration-absorption
--Temperature range: -2600C ~ +800C; Very high resistance to cold,doesn't become fragile even under -1800C
--High tensile Strength
--Non-Toxic and smell
--UV resistance
--Flame Retardant; Relatively low in water absorption
--Excellent electrical properties
--Good performance in resisting environment stress crack, 200 times of ordinary PE
--No adhesion
--Light weight and easier to handle and fix
--Cost efficient; Resulting in low energy consumption
--Does not rot, split or crack; 100% recyclable
--Great liner material for industrial material handling applications
--Easy Reprocessed

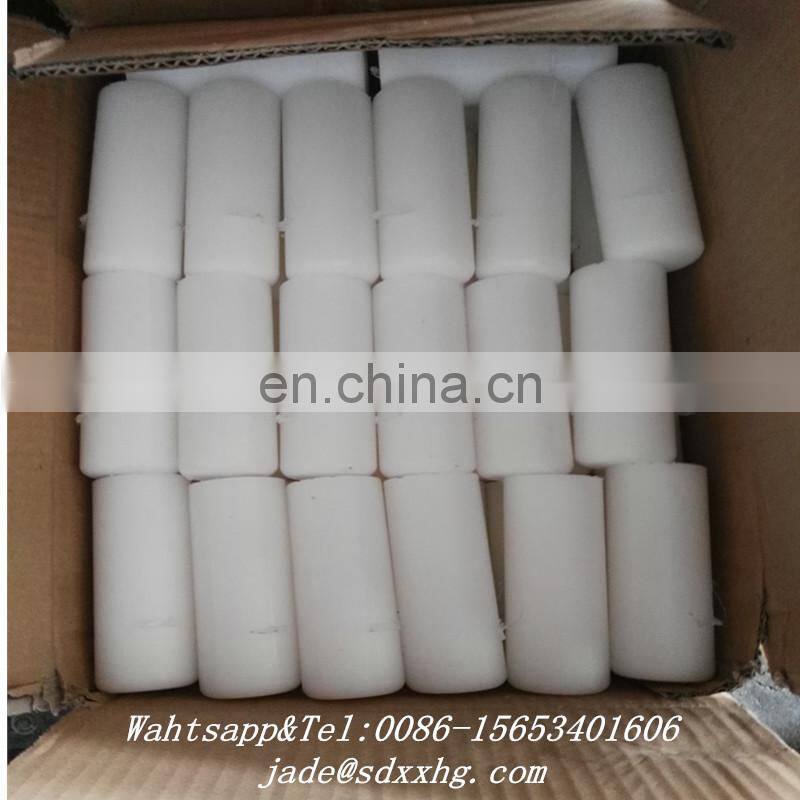

Packaging : pallet packing or as client need.
XINXING Other products :
XINXING can provide various UHMWPE & HDPE products with the good quality at reasonable price according to your requirement.
Any questions, please feel free to contact us.
Many thanks for you visit us !
