Brand:Xinxing

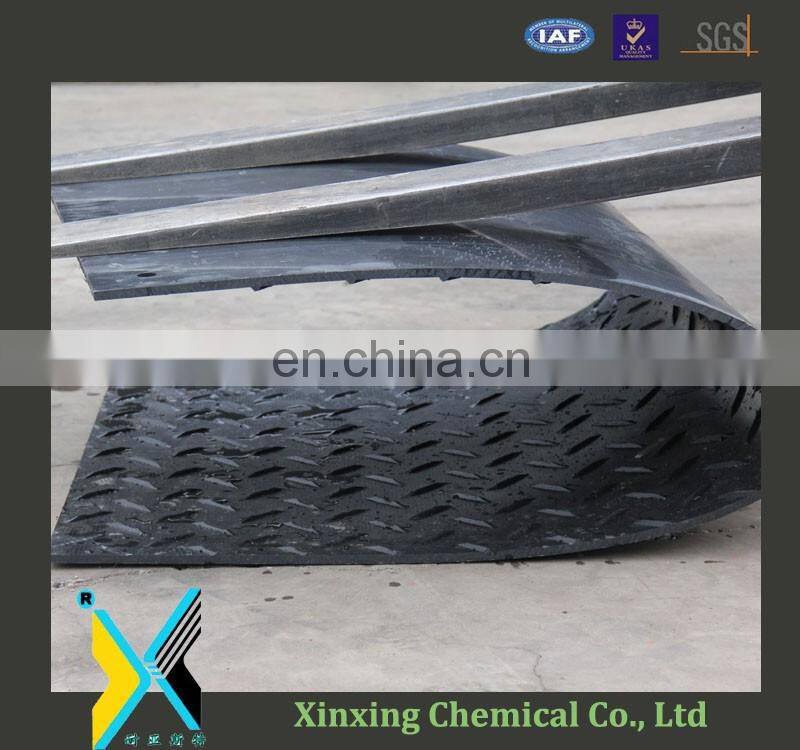

1. anti-slip HDPE outdoor ground mats
Ground protection mat is designed to preserve soft and sensitive ground conditions for machinery and vehicles, which are reusable for many times and 100% recyclable after use. It is an ideal alternative of the highly expensive aluminum protection systems or the "rot and replace" culture of timber for ground protection.
2. Details of 1220X2440X12.7MM Durable HDPE composite trakway panel:
a. The standard size of our ground protection mat:
(1)Extruted ground mat Size available:
SIZE (MM ) |
SIZE (Foot) |
1220*2440mm |
4’*8’ |
910*2440mm |
3’*8’ |
610*2440mm |
2’*8’ |
910*1830mm |
3’*6’ |
610*1830mm |
2’*6’ |
610*1220mm |
2’*4’ |
1100*2440mm |
|
1100*2900mm |
|
1000*2440mm |
|
1000*2900mm |
|
|
Thickness: 12.7mm, 15mm, 18mm, 20mm Cleat height: 7mm | |
(2)Pressed ground mat size available:
3000X1500MM |
3050X1220MM |
2000X1000MM |
4500X2000MM |
2000X3000MM |
|
Thickness :10mm -200mm Pattern both sides OR smooth on one side |
we can adjust the size of ground mat according to your demand.
b. :Benefits of our ground protection mat:
- Creat an instant roadway over virtually any type of terrain mud, sand, marshy, uneven or soft terrain
- Protects valuable turf during landscaping projects
- Superior alternative to plywood and fiberglass will not warp, rot, crack or delaminate
- Save time & labor getting vehicles and equipment traversed over difficult terrain
- Avoid potential injuries to workers incurred while dislodging vehicles & equipment from mud
- Protects vehicles & equipment from excessive wear and damage due to operating on unstable ground conditions
- Easily handled and laid by two men no need for expensive crane wagons
- Lay as two parallel tracks or a single roadway
- Link together with metal connectors.
- Easily cleaned due to less aggressive lug pattern
- Extremely durable to withstand vehicle weights up to 80 tons
- Tested in extremes of hot and cold climates
- Can be used hundreds of times
- Made in China
c. Advantage of HDPE ground protection mat:
- Highest abrasion resistance of any polymer, 6 times more wear resistant than steel
- Anti-Weather & Anti-Aging
- Self-lubricating, Very low coefficient of friction
- Excellent chemical & corrosion resistant
- superior impact resistant, Noise- absorption, Vibration-absorption
- Temperature range: -2600C ~ +800C; Very high resistance to cold,doesn't become fragile even under -1800
- High tensile Strength
- Non-Toxic and smell
- UV resistance
- Flame Retardant; Relatively low in water absorption
- Excellent electrical properties
- Good performance in resisting environment stress crack, 200 times of ordinary PE
- No adhesion
- Light weight and easier to handle and fix
- Cost efficient; Resulting in low energy consumption
- Does not rot, split or crack; 100% recyclable
- Great liner material for industrial material handling applications
- Easy Reprocessed
3,Application oF 1220X2440X12.7MM Durable HDPE composite trakway panel.
weed control barrier
garden ground cover
weed control mat
ground protection mat
polypropylene weed mat
safety ground bath mat
2440x1220x12.7mm HDPE plastic ground protection mat/Heavy duty crane mat
HDPE plastic ground protection mat
Heavy duty crane mat
UHMWPE Heavy Duty Ground Protection Temporary Access Mats Supplier
Heavy Duty Temporary Access Mats
Temporary Access Mats
ground protection mat
rod mat
91
ground protection mat
trackway mat
plastic groud mat
ground protection mat
drilling rig floor mat
hdpe road mat
temporary protection ground mats
folding camping mat
Custom Injection ground mat
UHMWPE heavy duty ground protection mats anti slip mats
non slip mat
grounding earthing mat
High Quality Heavy-duty Temporary Ground Mat
HDPE Heavy-Duty temporary ground protection construction road crane Matting
hdpe plastic sheet for floor
bathroom high quality ground mat
2.4x1.2x10mm HDPE plastic ground protection mat/Heavy duty crane mat
HDPE plastic ground protection mat
Heavy duty crane mat
Road System HDPE Ground construction Protection Temporary Road Mat
Temporary Road Mat
HDPE Ground construction Protection mat
ground protection mat
rod mat
Ground protection mats for road mats/temporary walkways mat/Portable roadway mats
15
ground protection mat
trackway mat
plastic groud mat
Ground protection mats for road mats/temporary walkways mat/Portable roadway mats
ground protection mat
grounding earthing mat
hdpe road mat
competitive price of Polyethylene ground mat with good quality
HDPE ground mat with anti-slip texture
High Density ground mat with anti-slip texture
price of uhmwpe ground protection mat
china uhmwpe ground protection mat
uhmwpe plastic ground mat
Temporary road HDPE plastic ground protection plastic floor mat
Temporary road HDPE plastic ground protection plastic floor mat
Temporary road HDPE plastic ground protection plastic floor mat
ground protection mats hdpe road mats for crane truck
ground protection mats
PE temporary ground ma
outdoor ground mats
heavy duty road mats
UHMW-PE ground protection mat
UHMW-PE portable prayer mat
outrigger pads
hdpe abrasion resistant plate
ground protection mat
temporary road mats
ground protection mat
Ground protection mats for road mats/temporary walkways mat/Portable roadway mats
hdpe road mat
Ground protection mats for road mats/temporary walkways mat/Portable roadway mats
Outrigger Pad
crane outrigger pad
ground protection mats
HDPE temporary road mat
hdpe plastic road mat
HDPE ground protection mats
anti-stip ground mat
ground protection mat
playground uhmwpe ground mat
plastic ground mat
door mats outdoor
large plastic mats
ground protection mat
surfboards foot pad
truck brake pads
kids foam floor mats
children foam floor mats
eva foam ground mat
modular door mat
door mat
Ground protection mats for road mats/temporary walkways mat/Portable roadway mats
interlock mat
weed mat
weed mat ground cover
heavy duty weed mat
plastic ground mat
sand proof mat
beach mat outdoor mat sand mat
2014 new plastic ground cover mat
weed mat ground cover
2014 new plastic ground cover mat
100% pp black color weed mat
ground protection mat
outdoor playground mats
Chenille mat
ground protection table chenille mat
Chenille carpets
garden ground cover fabric lawn protection mats weed control fabric
garden ground cover fabric lawn protection mats weed control fabric membrane
garden ground cover fabric lawn protection mats weed control fabric membrane
PP woven landscape fabric
weed control barrier
garden ground cover
pp ground mat
ground protection mat
grounding earthing mat
Ground protection mats for road mats/temporary walkways mat/Portable roadway mats
non-slip esd grounding mat
heavy-duty hdpe temporary ground protection solutions / hdpe mats
ground protection mats
HDPE ground protection mats
4. The technical data of UHMW-PE and HDPE ground protection mats/temporary road mat :
Data of Xinxing UHMWPE stabilizer board
Physical Properties |
Test Method |
Unit |
Value |
Density |
ASTMD792 |
g/cm3 |
0.93 -0.97 |
Water Absorption |
ASTMD570 |
% |
< 0.01 |
Mechanical Properties |
Test Method |
Unit |
Value |
Max Working Temperature |
- |
°C |
90 |
Minimum Working Temperature |
- |
°C |
-269 |
Tensile Strength |
ASTMD638 |
MPa |
40 |
Elongation at Break |
ASTMD638 |
% |
300-500 |
E-Modulus |
GB1040-79 |
MPa |
820 |
Bending Strength |
GB9341-88 |
MPa |
26 |
Bending E-Modulus |
GB9341--88 |
MPa |
760 |
Compression Strength (deformation 10%) |
ASTMD695 |
MPa |
21-25 |
Compression E-Modulus |
GB1041-79 |
MPa |
550 |
Shear Strength |
GB1041-79 |
MPa |
33 |
Hardness |
ASTMD240 |
Shore D |
65 -68 |
Coefficient of Friction |
- |
- |
0.12-0.15 |
Dynamic Coefficient Friction |
GB10006-88 |
- |
0.07-0.11 |
Thermal Properties |
Test Method |
Unit |
Value |
Coefficient of Linear Expansion |
GB1036-89 |
°C-1 |
1.5×10-4 |
Coefficient of Heat Conductivity ( 23 °C ) |
GB3399-82 |
Cal/cm sec °C |
8.5×10-4 |
Special Heat ( 23 °C) |
GB3399-82 |
Cal/g°C |
0.44 |
Electrical Properties |
Test Method |
Unit |
Value |
Volume Resistivity |
GB1410-78 |
Ohm cm |
>1015 |
Surface Resistivity |
GB1410-78 |
Ohm |
>1015 |
Dielectric Constant ( 1MHZ ) |
GB1409-78 |
- |
3 |
Dielectric Strength |
GB1408-78 |
Kv/mm |
70 |
We Can Offer The Products As Follows:
- UHMW-PE sheets
- UHMW-PE fender pads
- UHMW-PE liners
- UHMW-PE outrigger pads
- UHMW-PE road protection mat
- UHMW-PE chain guide
- UHMW-PE cutting board
- UHMW-PE skating rink,
- UHMW-PE suction box cover
- UHMW-PE machined parts
- we can offer the HDPE GOODS according to your requirment
Our Products Applications:
--Highly abrasion-resistance board : store/bucket interior lining,port machinery, mining machinery, building machinery,chute, and hopper.
--Pure ultra-high sheet : transport machinery,food, packing, paper making, environmental protection, and ceramics.
--Anti-static electric board : electrostatic protecting positions for mining in the pit, wharf,and foods processing.
--Flaming retarding board : mining in the pit, mainly used in easily self-inflammation parts, such as coal storehouse.
--Color board : packaging, decorative material, board fender.
--Double-color board: being component to check any wear and tear easily.
--Anti-UV board : storehouse or funnel in the open air, board fender.
--Micro-hole board : filter-board, anti-skid plate.
--Medical : UHMWPE is the only plastic approved for medical implants. Global Polymer Industries has medical grade UHMWPE available for molding various orthopedic joints such as hips, knees, and shoulders. UHMW-PE’s unique self-lubricating properties make it ideal for many medical applications.
--Owing to its excellent abrasion resistance, impact resistance,self-lubricating, it is suitable for making many types of machinery parts, such as rollers, shaft bushes, nozzles, mixing blade and other products.
Why Choose Us
l More than 15 years' professional manufacturing experience with own factory.
l Virgin 100% material produced, high quality with good surface and color make ensured
l GB/T 19001-2008 ; ISO 9001:2008 certification.
l Competitive price, In stock, Fast delivery, and Excellent service.
l OEM available. Special character is available :According to different requirements with different application, color, size, shape and special specifications can be customized, such as anti-UV, anti-static and so on.
HDPE ground protection mats mobile crane mat temporary road mat
High density Polyethylene track mats trackway mats:
HDPE is an engineering plastic that is often underestimated and although HDPE is popular, it is sometimes confused with other engineering plastics. HDPE is a shortened name for High Density Polyethylene and available in two main grades, 300 and 500 grade. The higher the HDPE grade number the higher the density of the plastic is which improves the performance of the product.
HDPE offers resistance to almost all acids and bases, detergents and hot water. HDPE is an excellent engineering plastic that has many unique and useful properties to offer users who need a varied and combined range of beneficial features.
General packaging is carton plus stretch film, Pallets, wood packaging. Of course, any packaging can be made according to customer requirements.
Our Company Introduction:
Shandong Ningjin Xinxing Chemical Co.,Ltd. is the leading professional Engineering Plastic products manufacture in China which specialized in producing UHMWPE and HDPE products according to the requirement from customers. XINXING has been specializing in this area since 1995, and the products are selling in more than 30 countries and area, such as North America, Europe and Southeast Asia and so on.
In the recent years,XINXING become the one of the largest UHMWPE Products manufacture in the world.
Xinxing focus on what our customers demand and dedicate to produce satisfying products and innovate new types products to our customers:
- In processing of products, we strictly manager our workers to pay attention to every details, asking there is no any error in products.
- We have strict Quality Control(QC) in order to make sure that all details of products meet customers’ requirement.
- Before delivery, we will be responsible for package all products perfectly in order to make sure there is no anydamage of products in transportation.
- In transportation, we will track the details of shipment and feedback to our customers timely and make sure our customers will receive the products on time.
- After receiving products, if you have any question, we will try our best to serve you. And welcome to your more orders in the future.
We can modify our service to your requirements and supply it at your convenience.
Send Inquiry to This Supplier
You May Also Like
-
Hdpe Ground Protection Mats/endura Ground Protection Mats/ Road Plastic MatsUS$ 3 - 10MOQ: 1 Kilogram
-
Textured HDPE Plastic Ground Mat/ Turf Protection Mat/ Tent Flooring MatUS$ 2.6 - 5.5MOQ: 1 Kilogram
-
Crane Excavator PE Grounding Earthing MatUS$ 3 - 10MOQ: 1 Kilogram
-
Extremely Rigid Outdoor Ground Mat Hdpe Temporary Road Mat Cnc Machined Pad for Grund Protecting MatUS$ 3 - 10MOQ: 1 Kilogram
-
UHMW-PE Ground Temporary Roadways/car Anti Slip MatUS$ 2.6 - 5.5MOQ: 1 Kilogram
-
Plastic Plate /temporary Grass Protection Mat /HDPE Track MatUS$ 3 - 9MOQ: 500 Kilograms
-
Recycled Rubber Heavy Duty Ground Protection Mat Temporary Road Mats and Rig MatsUS$ 3 - 9MOQ: 500 Kilograms
-
Temporary Composite pe Road Plate / Plastic Road Plates / Hdpe Ground Temporary RoadUS$ 95 - 120MOQ: 100 Pieces
-
UHMWPE Crane Truck Mats/ground Protection Mat for CompositePE Rig Mats/uhmw Plastic WalkwaysUS$ 3 - 10MOQ: 1 Kilogram
-
Beach Access Landing Mat Portable Landing Boat Ramp Ground MatUS$ 2.6 - 5.5MOQ: 1 Kilogram
