Peristaltic Metering Pump
- 500000 Piece / Pieces per Month
- 3-7 working days
- T/T
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | China |
Product Description

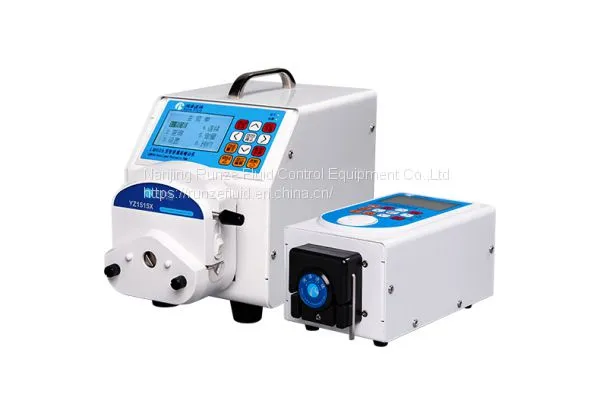

Peristaltic metering pump is an intelligent peristaltic pump that be able to preset dispensing volume, dispensing time, cycle times, waiting time to process a regular filling procedures, LED screen will show some important parameters of what pump is working on, foot pedals are optional to freedom your hands in labs or surgeries.
Metering Mode of Peristaltic Tubing of Peristaltic Metering Pump
a. Continuous mode - For continuous liquid transfer with no specific requirements
b. Rationing Mode - Realize one-off liquid dispensing in a specific volume
c. Booking Mode - Realize liquid dispensing in a specific volume at N times
d. Calibration Mode - Proceed calibration model before starting any other working model to ensure high accuracy of the test result
Specification of Peristaltic Tubing of Peristaltic Metering Pump
Product name | LM60A/LM60B Intelligent Peristaltic Pump |
Language | Chinese/English |
Pump head | LM60A: YZ1515X/YZ2515X/SN15/SN25; LM60B: RZ1030-4 |
Motor type | Stepper motor |
Pump Roller | YZ/SN: SST 3 rollers/6 rollers 1030-4: 4rollers |
Speed range | 0.1-400rpm, reversible |
Speed resolution | 0.1rpm |
Flow range | LM60A: 0.027-1385ml/min LM60B: 0-161ml/min |
External control | Foot pedal, RS232, RS485 |
Working mode | calibration mode, continuous mode, metering mode, booking mode |
Latency time | 0-999999s |
Dispensing volume | Pre-settable |
Dispensing time | Pre-settable |
Interval time | 0-999999s Pre-settable |
Full speed | One button to make it full speed (filling or empty) |
Power supply | AC100-240V, 50/60Hz |
Maximum power | LM60A: 35W LM60B: 20W |
Working temperature | 0-40℃ |
Working humidity | <80%RH relative humidity, non-condensing |
Protection grade | IP31 |
Ne weight | LM60A: 3.5kg LM60B: 1.45kg |
1. Tubing life measured by pumping pure water under continuous working at the room temperature 20℃ and no extra pressure until it cracks.
2. Tubing life vary from different medium, motor speed, working environment, the lower motor speed helps to extend the service life of tubing.
3. Please replace new pump tube regularly to achieve higher precision liquid transfer.
LM60A Flow Rate Instruction (Media: water)
Model No. | Color | Rollers | Tubing | Maximum Flow Rate |
LM60A-YZ1515X-3B | White | 3 | #14 #16 #25 #17 | 1385ml/min (400rpm) |
LM60A-YZ1515X-3H | Black | |||
LM60A-YZ1515X-6B | White | 6 | #14 #16 | 265ml/min (400rpm) |
LM60A-YZ1515X-6H | Black | |||
LM60A-YZ2515X-3B | White | 3 | #15 #24 | 747ml/min (400rpm) |
LM60A-YZ2515X-3H | Black | |||
LM60A-SN15-3 |
Transparent | 3 | #14 #16 #25 #17 | 1097ml/min (300rpm) |
LM60A-SN15-6 | 6 | #14 #16 | 180ml/min (300rpm) | |
LM60A-SN25-3 | 3 | #15 | 750ml/min (300rpm) |
LM60B Flow Rate Instruction (Media: water)
Model No. | Color | Rollers | Tubing | Maximum Flow Rate |
LM60B-RZ1030-4 |
Black |
4 |
ID0.64-3.0mm WT0.8-1.0mm OD≤5.0mm | 125ml/min (ID2.54*WT0.8mm rubber tube) 145ml/min (ID2.79*WT0.8mm rubber tube) 161ml/min (ID3.0*WT1.0mm silicone tube) |
Nanjing Runze Fluid Control Equipment Co., LTD. is a professional pump company, we provide Stepper Motor Peristaltic Pump, DC Motor Peristaltic Pump, Laboratory Peristaltic Pump, luer to tubing connector, digital peristaltic pump and etc. Want to know more? Please contact us.
