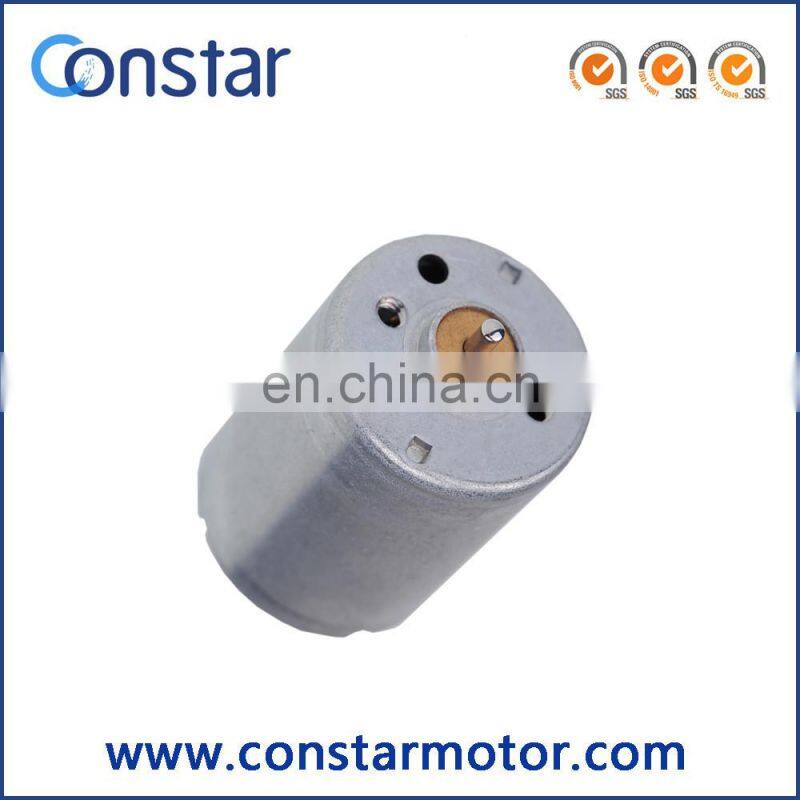

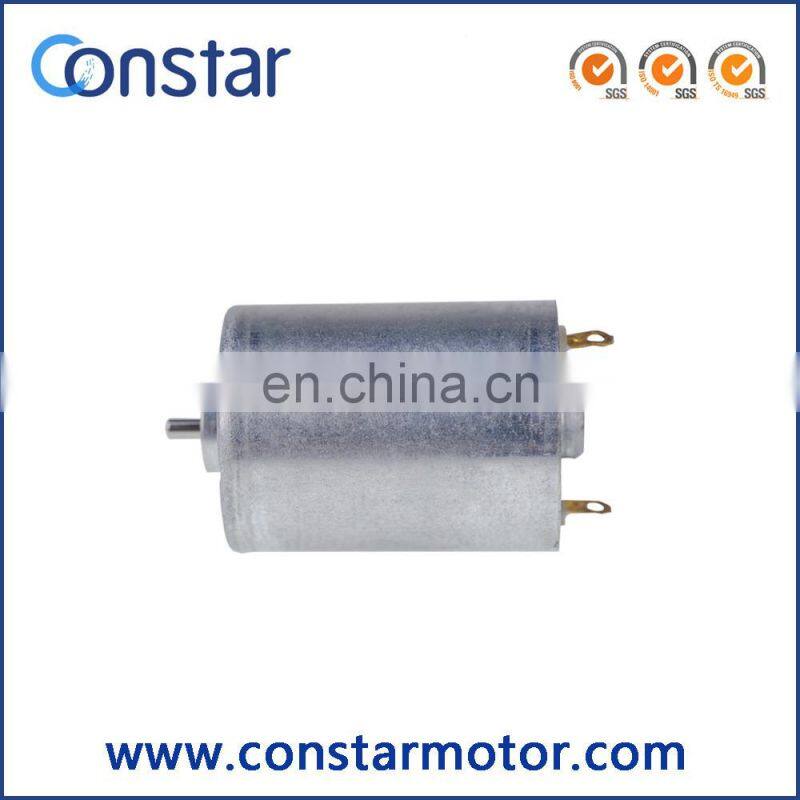

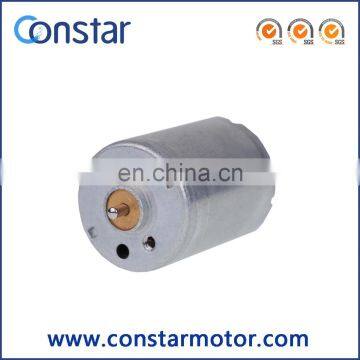

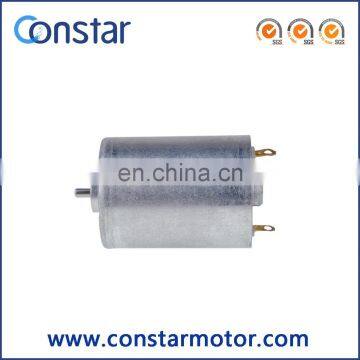

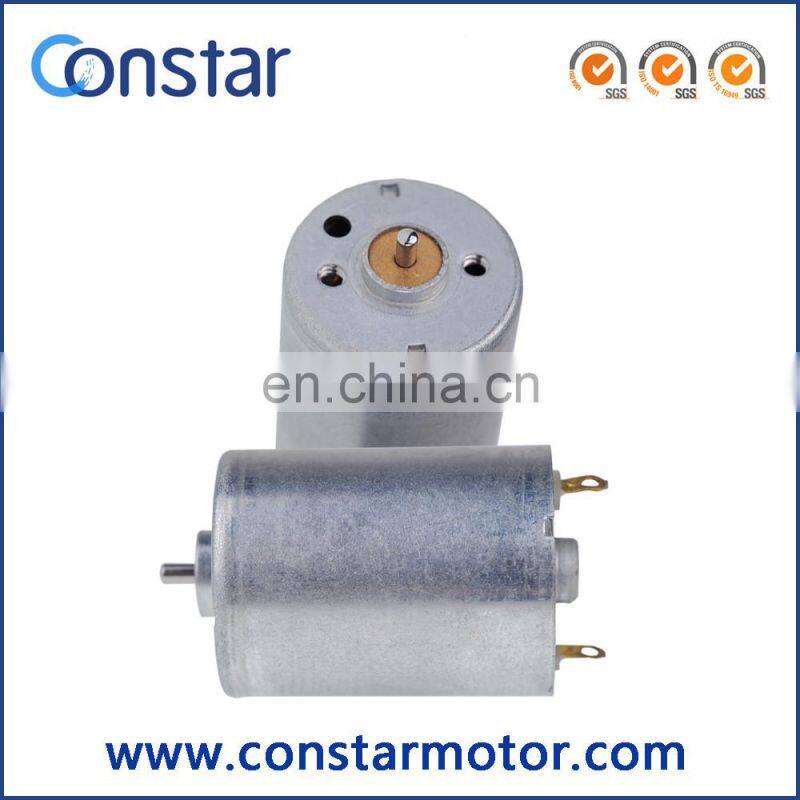

Guangdong Factory 17mm 4.5v Micro Dc Core Motor
US$ 1 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Constar
Place of Origin:
Guangdong, China
Model Number:
1723R14
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sales 12mm Flat 6V Micro Iron Core dc Motor for Toys and CarsUS$ 0.5 - 5MOQ: 5 Pieces -
20mm 3V Carbon Brush Motor for Metal Cutting Machine ToolUS$ 1 - 10MOQ: 1 Piece
-
1.5V Small Electric Motor for Toy Cars and Model TrainsUS$ 0.8 - 10MOQ: 2 Pieces
-
10mm 1.5V DC Electric Motor For Toy Cars And MoreUS$ 1 - 10MOQ: 2 Pieces
-
High Torque Permanent Magnet DC Electric Brush Motor 9V 13200rpmUS$ 0.7 - 10MOQ: 1 Piece
Brand Name
Constar
Place of Origin
Guangdong, China
Model Number
1723R14
Type
Micro Motor
Torque
4.7mNm
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Voltage(V)
4.5V
Output Power
11.7W
Continuous Current(A)
2.66A
Speed(RPM)
12000rpm
Commutation
Brush
Guangdong factory 17mm 4.5v micro Dc Core Motor
Security equipment, mini electronic products, remote control aerocrafts, personal caring products, portable tools and so on.
| 0.71 | 19120 | ||
| 1 | Voltage | V | 4.5 |
| 2 | Terminal resistance | Ω | 1.7 |
| 3 | No-load speed | rpm | 12000 |
| 4 | No-load current | mA | 85 |
| 5 | Stall torque | mNm | 4.70 |
| 6 | Stall current | mA | 2665 |
| 7 | Load torque | mNm | 0.39 |
| 8 | Load speed | rpm | 11000 |
| 9 | Load current | mA | 300 |
| 10 | Max output power | W | 1.48 |
| 11 | Max efficiency | % | 35.5 |
| 12 | Back-EMF constant | mV/rpm | 0.36 |
| 13 | Torque constant | mNm/A | 1.82 |
| 14 | Speed/torque gradient | rpm/mNm | 2551 |
| 15 | Varistor | Yes/No | Yes |
| 16 | Weight | g | 18.5 |
| 17 | Operating temperature range | ℃ | -20~+80 |
Lead wires length, shaft length, special coils, gearheads

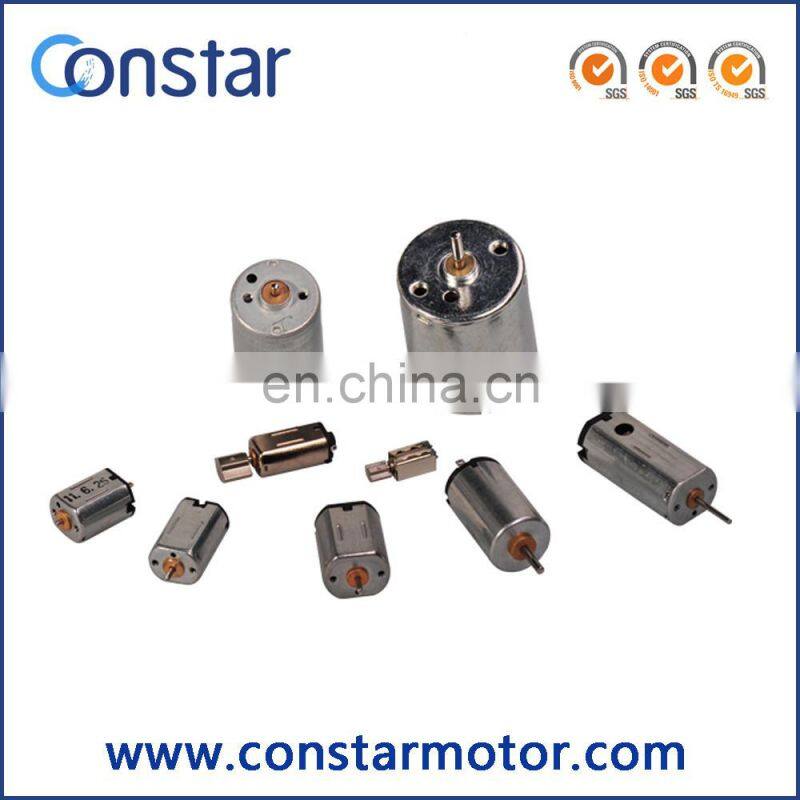

| Series | Dimension (mm) |
Voltage (V) |
Termanal resistence (Ω) |
No-load Speed (rpm) |
No-Load Current (mA) |
Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 1012F43 | Φ10*12 | 4.5 | 3.7 | 32000 | 80 | 1.14 |
| 1015F13 | Φ10*15 | 1.5 | 0.9 | 17500 | 110 | 0.45 |
| 1215F13 | Φ12*15 | 3.5 | 1.7 | 25000 | 100 | 1.28 |
| 1220F35 | Φ12*20 | 6 | 7.4 | 13800 | 50 | 3.27 |
| 1718R14 | Φ17*18 | 4.5 | 3.5 | 14000 | 65 | 1.6 |
| 1723R14 | Φ17*23 | 4.5 | 1.7 | 12000 | 85 | 1.82 |
Guangdong factory 17mm 4.5v micro Dc Core Motor
