Home > Electrical & Electronics > Electric Motor > DC Motor > 4000rpm Brushless dc Motor Pdf 12v Brushless dc Motor Efficiency
4000rpm Brushless dc Motor Pdf 12v Brushless dc Motor Efficiency
US$ 5 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Constar
Place of Origin:
Guangdong, China
Model Number:
BO3862NH
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Customized High Speed 12v Bldc Motor 20000rpmUS$ 5 - 45MOQ: 2 Pieces -
Constar 4316 Brushless Motor Handheld Bldc Motor GimbalUS$ 5 - 45MOQ: 2 Pieces
-
Constar High Power 36V Bldc Motor for EbikeUS$ 5 - 50MOQ: 2 Pieces
-
High Torque 43mm Dc Brushless Motor For Blender Long Life 22.2V Brushless Motor BlenderUS$ 5 - 50MOQ: 3 Pieces
-
12v Large Gimbal Motor 43mm Brushless dc Motor for QuadcopterUS$ 5 - 45MOQ: 10 Pieces
Brand Name
Constar
Place of Origin
Guangdong, China
Model Number
BO3862NH
Type
Micro Motor
Torque
Huge
Usage
Boat, Car, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Voltage(V)
12V
Output Power
50W
Continuous Current(A)
0.5A
Speed(RPM)
4000rpm
Commutation
Brushless
4000rpm brushless dc motor pdf 12v brushless dc motor efficiency
| CONSTAR MICROMOTOR | ||
|
|
|
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
|
|
|
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
Applications
UAV, Aeromodelling, etc.

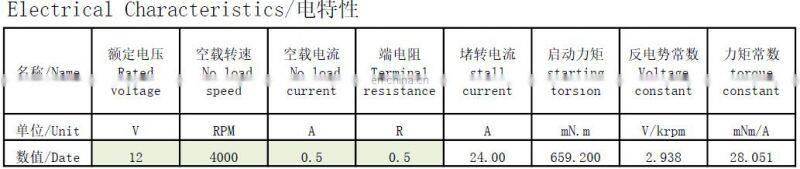

Specifications

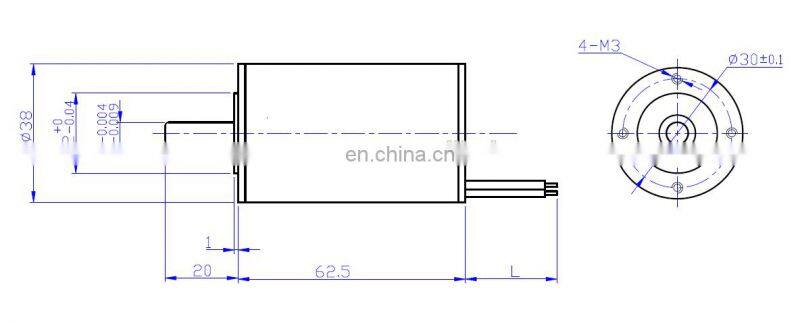

Outline Drawing
Customized Motor
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!

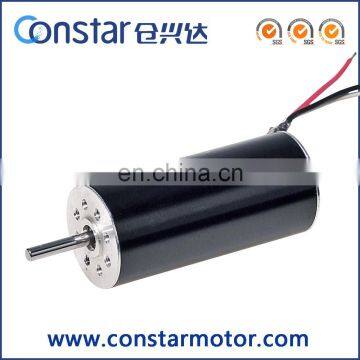

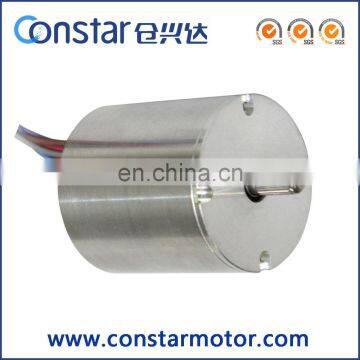

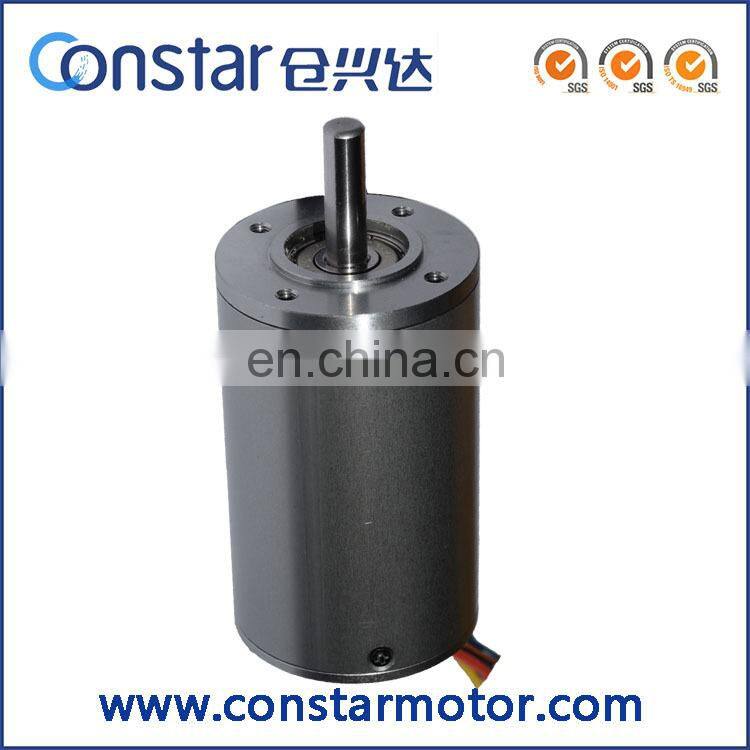

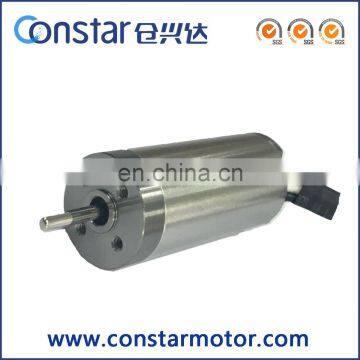

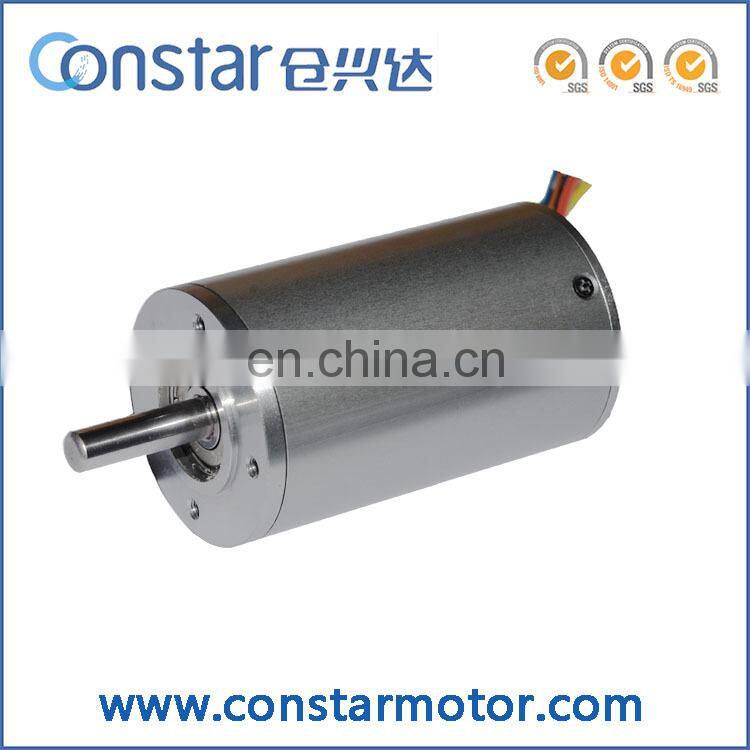

Product Show
Other Item
| eries | Dimension | Voltage | Terminal resistance | Speed | Current | Load Current |
| (mm) | (V) | (Ω) | (rpm) | (mA) | (mA) | |
| 1308ZWW | Φ13*08 | 3.7 | 39000 | 700 | 10500 | 0.85 |
| 1511ZWW | Φ15*11 | 7.4 | 35000 | 400 | 4700 | 1.97 |
| 1709ZWW | Φ17*9 | 10 | 26000 | 110 | 2600 | 3.5 |
| 1814ZWW | Φ18*14 | 6.4 | 18500 | 270 | 2900 | 3.3 |
| Φ18*14 | 6.4 | 22000 | 350 | 3440 | 2.7 | |
| 1816ZWW | Φ18*16 | 7.4 | 12000 | 160 | 1620 | 5.8 |
| 2010ZWW | Φ20*10 | 10 | 24000 | 110 | 2400 | 3.9 |
| 2015ZWW | Φ20*15 | 12 | 11300 | 80 | 940 | 9.9 |
| 2316ZWW | Φ23*16 | 12 | 19500 | 450 | 1625 | 5.8 |
| 2414ZWW | Φ24*14 | 12 | 6400 | 40 | 530 | 16.7 |
| 2814ZWW | Φ28*14 | 11.1 | 22000 | 650 | 2000 | 4.8 |
| 2820ZWW | Φ28*20 | 10.5 | 13500 | 450 | 1290 | 7.4 |
| 2824ZWW | Φ28*24 | 11.1 | 10200 | 400 | 920 | 10.3 |
| 2826ZWW | Φ28*26 | 14.8 | 13500 | 550 | 910 | 10.4 |
| 2828ZWW | Φ28*28 | 14.8 | 13000 | 650 | 880 | 10.8 |
| 2830ZWW | Φ28*30 | 14.8 | 13300 | 750 | 900 | 10.6 |
| 2914ZWW | Φ29*14 | 24 | 5500 | 100 | 230 | 40 |
| 3212ZWW | Φ32*12 | 12 | 22000 | 500 | 1833 | 5 |
| 3216ZWW | Φ32*16 | 12 | 3200 | 500 | 270 | 35 |
| 3517ZWW | Φ35*17 | 24 | 4450 | 60 | 185 | 50 |
| 3518ZWW | Φ35*18 | 12 | 10000 | 500 | 830 | 11.3 |
| 3825ZWW | Φ38*25 | 14.8 | 10400 | 560 | 700 | 13.5 |
| 3828ZWW | Φ38*28 | 24 | 29000 | 700 | 1200 | 7.8 |
| 4316ZWW | Φ43*16 | 12 | 4350 | 180 | 360 | 26 |
| 4321ZWW | Φ43*21 | 24 | 6700 | 200 | 280 | 34 |
| 4326ZWW | Φ43*26 | 24 | 6100 | 300 | 260 | 37 |
| 4834ZWW | Φ48*34 | 22.2 | 10400 | 1300 | 470 | 20 |
| 6133ZWW | Φ61*33 | 22.2 | 6400 | 930 | 290 | 33 |
| 8724ZWW | Φ87*24 | 36 | 3600 | 200 | 100 | 95 |
4000rpm brushless dc motor pdf 12v brushless dc motor efficiency
