Home > Electrical & Electronics > Electric Motor > DC Motor > 48mm 10000rpm 1.5kw Brushless Dc Motor
US$ 10 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
constar
Place of Origin:
Guangdong, China
Model Number:
4834ZWW
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Design High Quality 24v Bldc Outrunner Motor 1.5KW Brushless Motor For Mega DroneUS$ 7 - 50MOQ: 2 Pieces -
Factory Price Hot Sale Brushless 24v dc Motor 3000rpmUS$ 6 - 25MOQ: 2 Pieces
-
Factory Price Electric dc Motor 12v 200w High Quality Brushless dc Motor 12v 14.8v 24vUS$ 5 - 43MOQ: 1 Piece
-
China Suppliers Brushless dc Electric Motor 48v,BLDC Motor 48v 1000wUS$ 8 - 50MOQ: 1 Piece
-
Wholesale 12v dc Motor High Torque 1500rpmUS$ 5.5 - 35MOQ: 1 Piece
Brand Name
constar
Place of Origin
Guangdong, China
Model Number
4834ZWW
Type
Micro Motor
Torque
504mNm
Construction
Permanent Magnet
Efficiency
IE 1
Continuous Current(A)
26.2A
Speed(RPM)
10000rpm
Commutation
Brushless
48mm 10000rpm 1.5kw Brushless Dc Motor
|
|||
| CONSTAR MICROMOTOR | |||
|
|
|
|
| Brushless DC Motor | DC Coreless Motor | Gearmotor | Sonic Motor |
1. Applications:Medical equipment, industrial equipment, navigation models, electricaltools and mini household appliances
2. Operating Environment:-40~+100°C
3. Characteristics :
The following are our standard products, we also provide customized products and service.
| -1-22.2 | |||
| 1 | Voltage | V | 22.2 |
| 2 | Terminal resistance | Ω | 0.08 |
| 3 | No-load speed | rpm | 10400 |
| 4 | No-load current | A | 1.3 |
| 5 | Nominal torque | mNm | 504 |
| 6 | Nominal speed | rpm | 9500 |
| 7 | Nominal current | A | 26.2 |
| 8 | Max. output power | W | 1527 |
| 9 | Max. efficiency | % | 87 |
| 10 | Back-EMF constant | mV/rpm | 2.1 |
| 11 | Torque constant | mNm/A | 20 |
| 12 | KV Value | rpm/V | 470 |
4. Options:Lead wires length, shaft length, special coils, gearheads,bearing type, driver,encoder

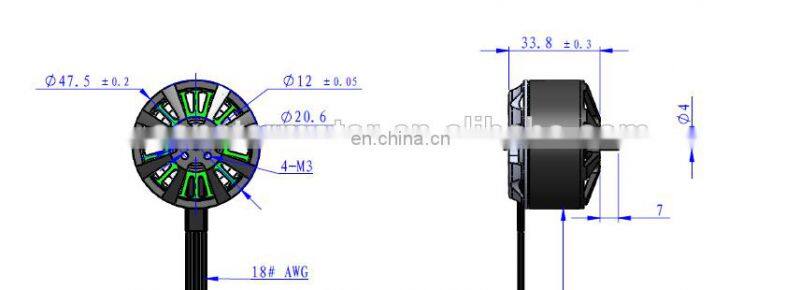

5,Outline Drawing:

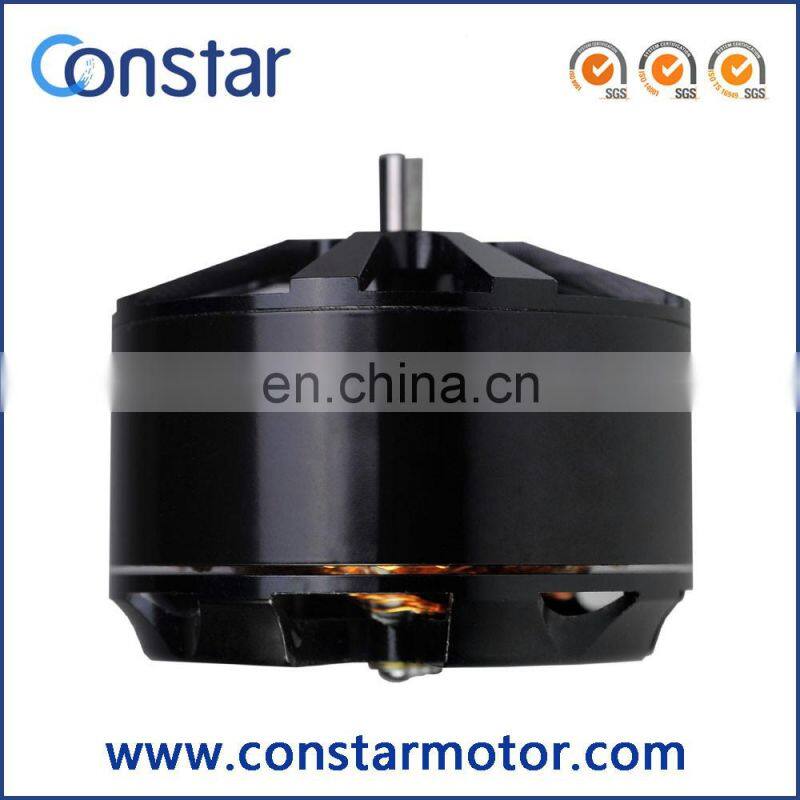

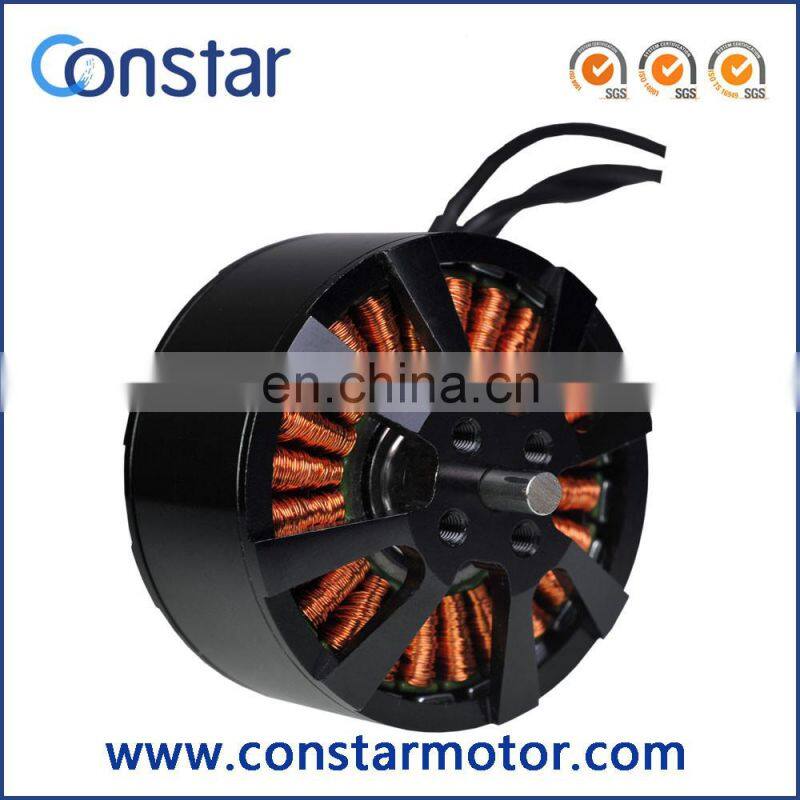

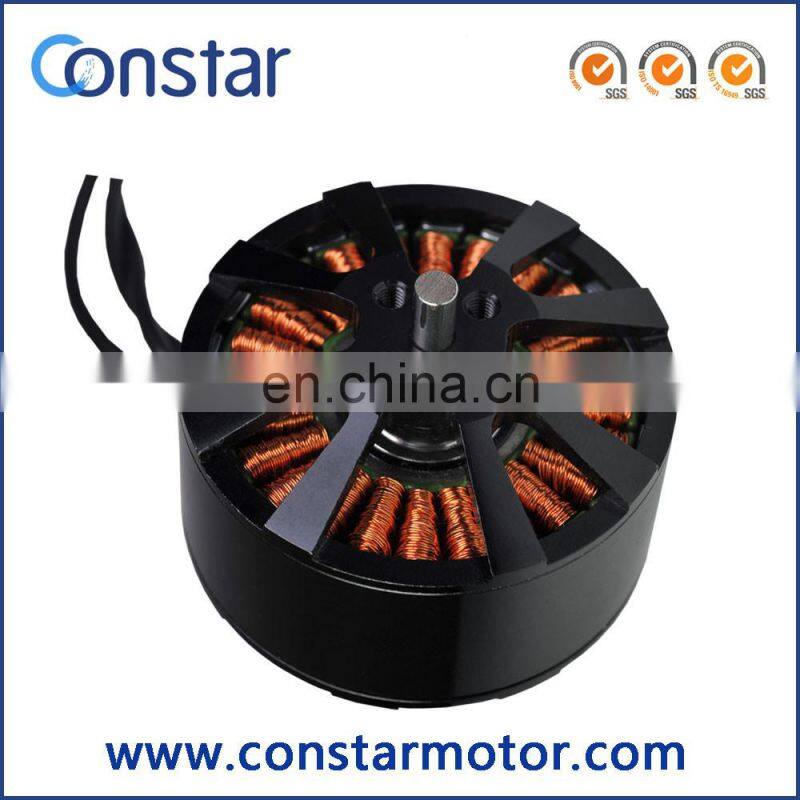

6,PHOTO:
8,Other Item:
| Series | Dimension
(mm) |
Voltage
(V) |
No-load Speed
(rpm) |
No-Load Current
(mA) |
KV Value
(rpm/V) |
Torque Constant
(mNm/A) |
|---|---|---|---|---|---|---|
| 1308ZWW | Φ13*8 | 3.7 | 39000 | 700 | 10500 | 0.85 |
| 1511ZWW | Φ15*11 | 7.4 | 35000 | 400 | 4700 | 1.97 |
| 1709ZWW | Φ17*9 | 10 | 26000 | 110 | 2600 | 3.5 |
| 1814ZWW | Φ18*14 | 6.4 | 18500 | 270 | 2900 | 3.3 |
| Φ18*14 | 6.4 | 22000 | 350 | 3440 | 2.7 | |
| 1816ZWW | Φ18*16 | 7.4 | 12000 | 160 | 1620 | 5.8 |
| 2010ZWW | Φ20*10 | 10 | 24000 | 110 | 2400 | 3.9 |
| 2015ZWW | Φ20*15 | 12 | 11300 | 80 | 940 | 9.9 |
| 2316ZWW | Φ23*16 | 12 | 19500 | 450 | 1625 | 5.8 |
| 2414ZWW | Φ24*14 | 12 | 6400 | 40 | 530 | 16.7 |
| 2814ZWW | Φ28*14 | 11.1 | 22000 | 650 | 2000 | 4.8 |
| 2820ZWW | Φ28*20 | 10.5 | 13500 | 450 | 1290 | 7.4 |
| 2824ZWW | Φ28*24 | 11.1 | 10200 | 400 | 920 | 10.3 |
| 2826ZWW | Φ28*26 | 14.8 | 13500 | 550 | 910 | 10.4 |
| 2828ZWW | Φ28*28 | 14.8 | 13000 | 650 | 880 | 10.8 |
| 2830ZWW | Φ28*30 | 14.8 | 13300 | 750 | 900 | 10.6 |
| 2914ZW | Φ29*14 | 24 | 5500 | 100 | 230 | 40 |
| 2914ZWW | Φ29*14 | 24 | 5500 | 100 | 230 | 40 |
| 3212ZWW | Φ32*12 | 12 | 22000 | 500 | 1833 | 5.0 |
| 3216ZWW | Φ32*16 | 12 | 3200 | 500 | 270 | 35 |
| 3517ZWW | Φ35*17 | 24 | 4450 | 60 | 185 | 50 |
| 3518ZWW | Φ35*18 | 12 | 10000 | 500 | 830 | 11.3 |
| 3825ZWW | Φ38*25 | 14.8 | 10400 | 560 | 700 | 13.5 |
| 3828ZWW | Φ38*28 | 24 | 29000 | 700 | 1200 | 7.8 |
| 4316ZWW | Φ43*16 | 12 | 4350 | 180 | 360 | 26 |
| 4321ZWW | Φ43*21 | 24 | 6700 | 200 | 280 | 34 |
| 4326ZWW | Φ43*26 | 24 | 6100 | 300 | 260 | 37 |
| 4834ZWW | Φ48*34 | 22.2 | 10400 | 1300 | 470 | 20 |
| 6133ZWW | Φ61*33 | 22.2 | 6400 | 930 | 290 | 33 |
| 8724ZWW | Φ87*24 | 36 | 3600 | 200 | 100 | 95 |
48mm 10000rpm 1.5kw Brushless Dc Motor
