Home > Electrical & Electronics > Electric Motor > DC Motor > 13mm Diameter 39000rpm Mini Brushless Motor 3.7v
US$ 4 - 45
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Constar
Place of Origin:
Guangdong, China
Model Number:
1308ZWW
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
200W High Power Brushless Outrunner DC Motor Bldc Motor PriceUS$ 4 - 60MOQ: 2 Pieces -
32mm High Quality Outrunner Brushless Gimbal MotorUS$ 5 - 50MOQ: 1 Piece
-
8724 36v Multicopter Outrunner DC Brushless MotorUS$ 5 - 50MOQ: 1 Piece
-
87mm Outrunner Brushless dc Motor for RC Drone and UAV Quadcopter / FPV HelicoptersUS$ 20 - 50MOQ: 5 Pieces
-
Constar High Speed 10000rpm Brushless dc Motor for RC Quadcopter DroneUS$ 8 - 50MOQ: 2 Pieces
Brand Name
Constar
Place of Origin
Guangdong, China
Model Number
1308ZWW
Type
Micro Motor
Torque
2mNm
Construction
Permanent Magnet
Efficiency
IE 1
Voltage(V)
3.7v
Output Power
11.1W
Continuous Current(A)
0.7A
Speed(RPM)
39000rpm
Commutation
Brushless

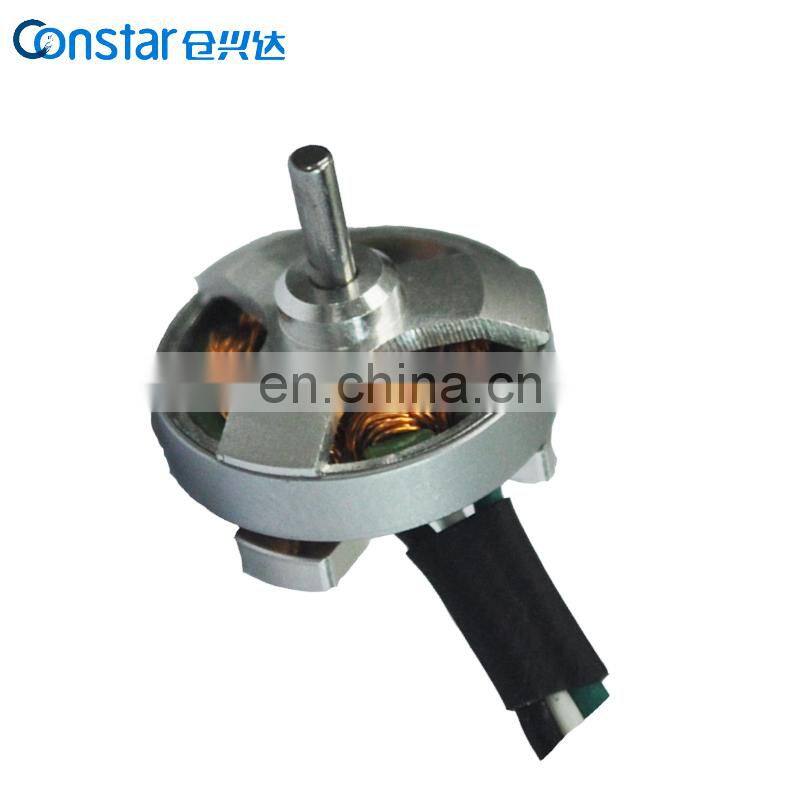

13mm Diameter 39000rpm Mini Brushless Motor 3.7v
| CONSTAR MICROMOTOR | ||
| | |
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
| | |
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
Applications
UAV, Aeromodelling, etc.
Specifications
| -1-3.7 | |||
| 1 | Voltage | V | 3.7 |
| 2 | Terminal resistance | Ω | 0.36 |
| 3 | No-load speed | rpm | 39000 |
| 4 | No-load current | A | 0.7 |
| 5 | Nominal torque | mNm | 2 |
| 6 | Nominal speed | rpm | 29000 |
| 7 | Nominal current | A | 3 |
| 8 | Max. output power | W | 8.3 |
| 9 | Max. efficiency | % | 55 |
Options
Lead wires length, Shaft length, Special coils, Gearheads, Bearing type, Encoder, Driver
Customized Motor
Customized Motor Solutions
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!

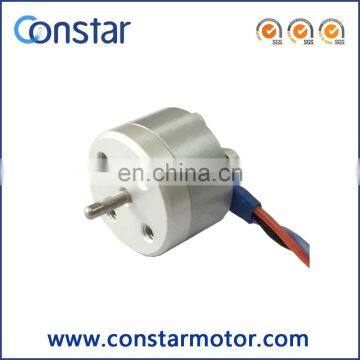

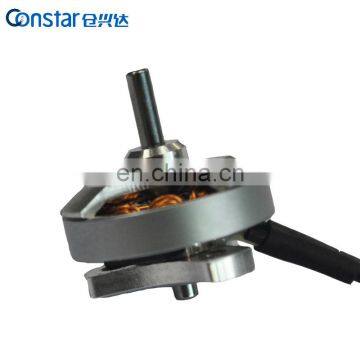

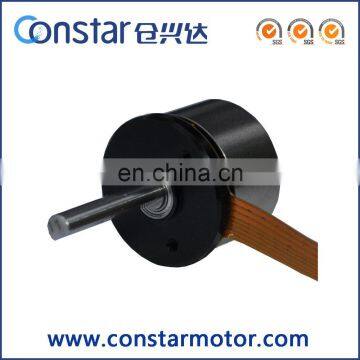

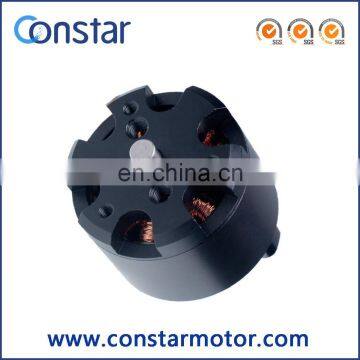

Product Show

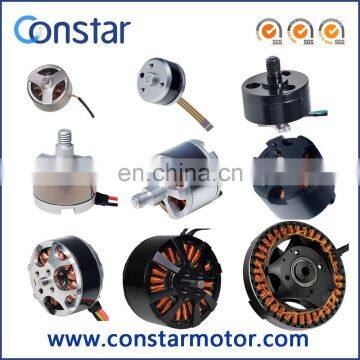

Other Item
| Series | Dimension (mm) | Voltage (V) | No-load Speed (rpm) | No-Load Current (mA) | KV Value (rpm/V) | Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 1308ZWW | Φ13*8 | 3.7 | 39000 | 700 | 10500 | 0.85 |
| 1511ZWW | Φ15*11 | 7.4 | 35000 | 400 | 4700 | 1.97 |
| 1709ZWW | Φ17*9 | 10 | 26000 | 110 | 2600 | 3.5 |
| 1814ZWW | Φ18*14 | 6.4 | 18500 | 270 | 2900 | 3.3 |
| Φ18*14 | 6.4 | 22000 | 350 | 3440 | 2.7 | |
| 1816ZWW | Φ18*16 | 7.4 | 12000 | 160 | 1620 | 5.8 |
| 2010ZWW | Φ20*10 | 10 | 24000 | 110 | 2400 | 3.9 |
| 2015ZWW | Φ20*15 | 12 | 11300 | 80 | 940 | 9.9 |
| 2316ZWW | Φ23*16 | 12 | 19500 | 450 | 1625 | 5.8 |
| 2414ZWW | Φ24*14 | 12 | 6400 | 40 | 530 | 16.7 |
| 2814ZWW | Φ28*14 | 11.1 | 22000 | 650 | 2000 | 4.8 |
| 2820ZWW | Φ28*20 | 10.5 | 13500 | 450 | 1290 | 7.4 |
| 2824ZWW | Φ28*24 | 11.1 | 10200 | 400 | 920 | 10.3 |
| 2826ZWW | Φ28*26 | 14.8 | 13500 | 550 | 910 | 10.4 |
| 2828ZWW | Φ28*28 | 14.8 | 13000 | 650 | 880 | 10.8 |
| 2830ZWW | Φ28*30 | 14.8 | 13300 | 750 | 900 | 10.6 |
| 2914ZW | Φ29*14 | 24 | 5500 | 100 | 230 | 40 |
| 2914ZWW | Φ29*14 | 24 | 5500 | 100 | 230 | 40 |
| 3212ZWW | Φ32*12 | 12 | 22000 | 500 | 1833 | 5.0 |
| 3216ZWW | Φ32*16 | 12 | 3200 | 500 | 270 | 35 |
| 3517ZWW | Φ35*17 | 24 | 4450 | 60 | 185 | 50 |
| 3518ZWW | Φ35*18 | 12 | 10000 | 500 | 830 | 11.3 |
| 3825ZWW | Φ38*25 | 14.8 | 10400 | 560 | 700 | 13.5 |
| 3828ZWW | Φ38*28 | 24 | 29000 | 700 | 1200 | 7.8 |
| 4316ZWW | Φ43*16 | 12 | 4350 | 180 | 360 | 26 |
| 4321ZWW | Φ43*21 | 24 | 6700 | 200 | 280 | 34 |
| 4326ZWW | Φ43*26 | 24 | 6100 | 300 | 260 | 37 |
| 4834ZWW | Φ48*34 | 22.2 | 10400 | 1300 | 470 | 20 |
| 6133ZWW | Φ61*33 | 22.2 | 6400 | 930 | 290 | 33 |
| 8724ZWW | Φ87*24 | 36 | 3600 | 200 | 100 | 95 |
13mm Diameter 39000rpm Mini Brushless Motor 3.7v
