28mm 10.5V Low Noise Precision Brushless High Speed High Torque Dc Motor
US$ 5 - 35
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Constar
Place of Origin:
Guangdong, China
Model Number:
2820ZWW
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
28mm 10000rpm Low Noise Precision Electric Flat Brushless Motor China ManufacturerUS$ 5 - 50MOQ: 2 Pieces -
43mm 5000rpm Outer Runner Sensored dc Brushless High Torque 12V dc Industrial MotorUS$ 5 - 45MOQ: 2 Pieces
-
18mm 12000rpm Micro Outrunner Brushless Dc MotorUS$ 5 - 45MOQ: 1 Piece
-
2020 New Design High Torque 61mm Brushless Outrunner MotorUS$ 5 - 50MOQ: 50 Pieces
-
48*30MM 10000rpm 24v DC Brushless Motor Electric Thrust MotorUS$ 9 - 50MOQ: 5 Pieces
Brand Name
Constar
Place of Origin
Guangdong, China
Model Number
2820ZWW
Type
Micro Motor
Certification
CE, ROHS
Torque
74.2mNm
Usage
Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Other
Voltage(V)
10.5V
Output Power
110.25W
Continuous Current(A)
0.45A
Speed(RPM)
13500rpm
Commutation
Brushless
28mm 10.5V Low Noise Precision Brushless High Speed High Torque Dc Motor
| CONSTAR MICROMOTOR | ||
| | |
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
| | |
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
1. Applications:UAV,Aeromodelling,etc
2. Operating Environment:-40~+100°C
3. Characteristics :
The following are our standard products, we also provide customized products and service.
...
| Characteristics | |||
| -4-10.5 | |||
| 1 | Voltage | V | 10.5 |
| 2 | Terminal resistance | Ω | 0.13 |
| 3 | No-load speed | rpm | 13500 |
| 4 | No-load current | A | 0.45 |
| 5 | Nominal torque | mNm | 74.2 |
| 6 | Nominal speed | rpm | 11800 |
| 7 | Nominal current | A | 10.5 |
| 8 | Max. output power | W | 210 |
| 9 | Max. efficiency | % | 86 |
| 10 | Back-EMF constant | mV/rpm | 0.77 |
| 11 | Torque constant | mNm/A | 7.4 |
| 12 | KV Value | rpm/V | 1290 |
4. Options:Lead wires length, shaft length, special coils, gearheads,bearing type,
driver,encoder

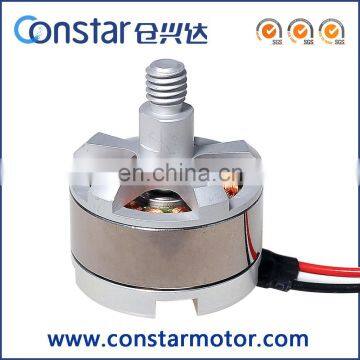

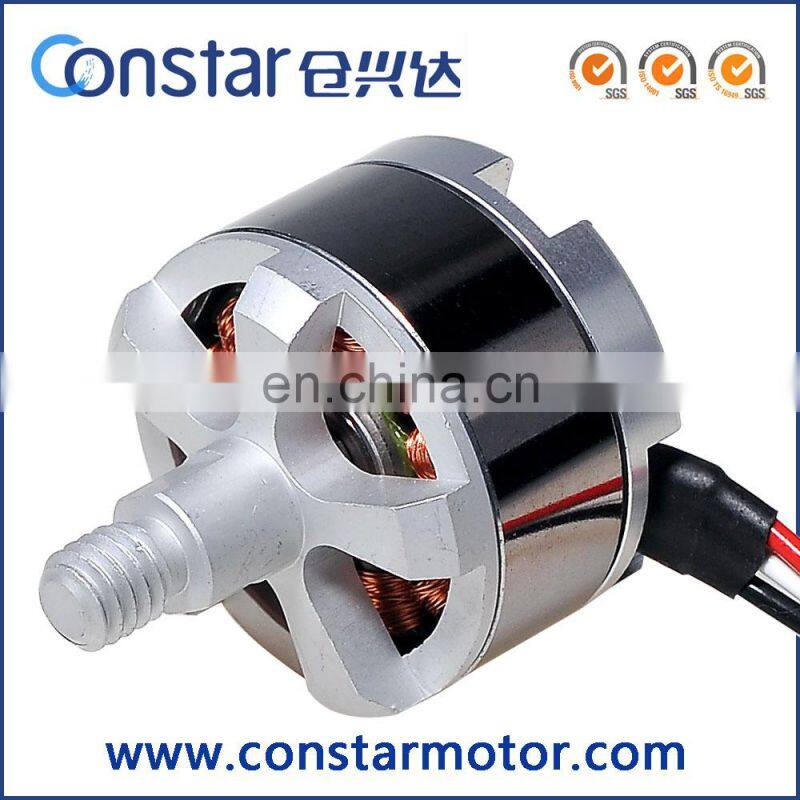

5.PHOTO:

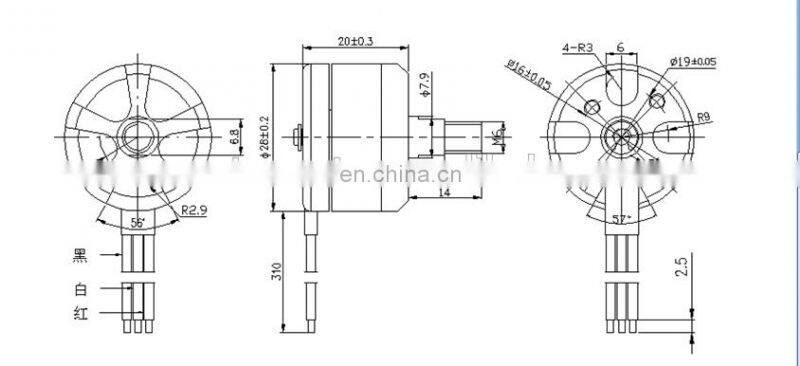

6.Outline Drawing:
7.Other Item:
| Series | Dimension (mm) | Voltage (V) | No-load Speed (rpm) | No-Load Current (mA) | KV Value (rpm/V) | Torque Constant (mNm/A) |
|---|---|---|---|---|---|---|
| 1308ZWW | Φ13*8 | 3.7 | 39000 | 700 | 10500 | 0.85 |
| 1511ZWW | Φ15*11 | 7.4 | 35000 | 400 | 4700 | 1.97 |
| 1709ZWW | Φ17*9 | 10 | 26000 | 110 | 2600 | 3.5 |
| 1814ZWW | Φ18*14 | 6.4 | 18500 | 270 | 2900 | 3.3 |
| Φ18*14 | 6.4 | 22000 | 350 | 3440 | 2.7 | |
| 1816ZWW | Φ18*16 | 7.4 | 12000 | 160 | 1620 | 5.8 |
| 2010ZWW | Φ20*10 | 10 | 24000 | 110 | 2400 | 3.9 |
| 2015ZWW | Φ20*15 | 12 | 11300 | 80 | 940 | 9.9 |
| 2316ZWW | Φ23*16 | 12 | 19500 | 450 | 1625 | 5.8 |
| 2414ZWW | Φ24*14 | 12 | 6400 | 40 | 530 | 16.7 |
| 2814ZWW | Φ28*14 | 11.1 | 22000 | 650 | 2000 | 4.8 |
| 2820ZWW | Φ28*20 | 10.5 | 13500 | 450 | 1290 | 7.4 |
| 2824ZWW | Φ28*24 | 11.1 | 10200 | 400 | 920 | 10.3 |
| 2826ZWW | Φ28*26 | 14.8 | 13500 | 550 | 910 | 10.4 |
| 2828ZWW | Φ28*28 | 14.8 | 13000 | 650 | 880 | 10.8 |
| 2830ZWW | Φ28*30 | 14.8 | 13300 | 750 | 900 | 10.6 |
| 2914ZW | Φ29*14 | 24 | 5500 | 100 | 230 | 40 |
| 2914ZWW | Φ29*14 | 24 | 5500 | 100 | 230 | 40 |
| 3212ZWW | Φ32*12 | 12 | 22000 | 500 | 1833 | 5.0 |
| 3216ZWW | Φ32*16 | 12 | 3200 | 500 | 270 | 35 |
| 3517ZWW | Φ35*17 | 24 | 4450 | 60 | 185 | 50 |
| 3518ZWW | Φ35*18 | 12 | 10000 | 500 | 830 | 11.3 |
| 3825ZWW | Φ38*25 | 14.8 | 10400 | 560 | 700 | 13.5 |
| 3828ZWW | Φ38*28 | 24 | 29000 | 700 | 1200 | 7.8 |
| 4316ZWW | Φ43*16 | 12 | 4350 | 180 | 360 | 26 |
| 4321ZWW | Φ43*21 | 24 | 6700 | 200 | 280 | 34 |
| 4326ZWW | Φ43*26 | 24 | 6100 | 300 | 260 | 37 |
| 4834ZWW | Φ48*34 | 22.2 | 10400 | 1300 | 470 | 20 |
| 6133ZWW | Φ61*33 | 22.2 | 6400 | 930 | 290 | 33 |
| 8724ZWW | Φ87*24 | 36 | 3600 | 200 | 100 | 95 |
