Micro Motor For Helicopters,Hair Dryer Dc Motor
US$ 5 - 50
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Constar
Place of Origin:
Guangdong, China
Model Number:
2030ZWWN-2-12.0
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
28mm 1290kv Outrunner Without Sensor Long Lifetime Electric rc Helicopter Toy Brushless dc MotorUS$ 5 - 50MOQ: 10 Pieces -
23mm High Quality Micro Brushless dc Aeromodelling Motor, UAV Propulsion MotorUS$ 5 - 45MOQ: 5 Pieces
-
12v Micro Dc PTZ And UAV Brushless Gimbal MotorUS$ 5 - 45MOQ: 2 Pieces
-
12v 24v Gimbal Brushless MotorUS$ 5 - 50MOQ: 2 Pieces
-
Customized High Torque Electric Motor For Bicycle 1.9KW Electric Bicycle MotorUS$ 25 - 50MOQ: 10 Pieces
Brand Name
Constar
Place of Origin
Guangdong, China
Model Number
2030ZWWN-2-12.0
Type
Micro Motor
Certification
CE, ROHS
Torque
5.0mNm
Usage
Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Voltage(V)
12V
Output Power
27.6W
Continuous Current(A)
0.37A
Speed(RPM)
43300rpm
Commutation
Brushless
Micro Motor For Helicopters,Hair Dryer Dc Motor
| CONSTAR MICROMOTOR | ||
|
|
|
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
|
|
|
| GEAR MOTOR | STEP MOTOR | MINI CORELESS MOTOR |
Applications
Precision driving field in medical equipment, industrial automation, etc.
Specifications
he following are our standard products, we also provide customized products and service.
| -2-12.0 | -3-12.0 | -4-12.0 | |||
| 1 | Voltage | V | 12 | 12 | 12 |
| 2 | Terminal resistance | Ω | 0.37 | 11 | 6.2 |
| 3 | No-load speed | rpm | 43300 | 7000 | 9200 |
| 4 | No-load current | A | 0.37 | 0.1 | 0.25 |
| 5 | Nominal torque | mNm | 5.0 | 9.4 | 6.6 |
| 6 | Nominal speed | rpm | 40700 | 2555 | 5900 |
| 7 | Nominal current | A | 2.3 | 0.7 | 0.9 |
| 8 | Max. output power | W | 95 | 2.7 | 4.4 |
| 9 | Max. efficiency | % | 80 | 49 | 41 |
| 10 | Back-EMF constant | mV/rpm | 0.27 | 1.6 | 1 |
| 11 | Torque constant | mNm/A | 2.6 | 14.9 | 11 |
| 12 | KV Value | rpm/V | 3600 | 580 | 770 |
Options
Lead wires length, Shaft length, Special coils, Gearheads, Bearing type, Hall sensor, Encoder,Driver

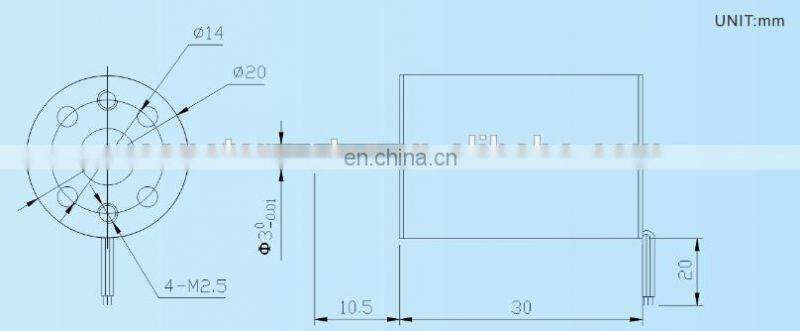

Outline Drawing

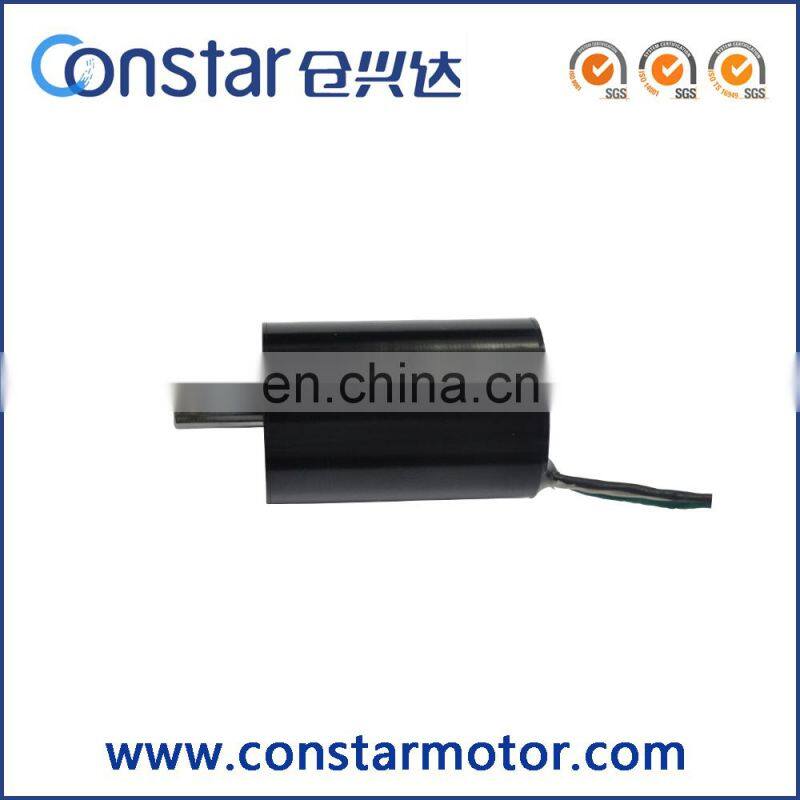

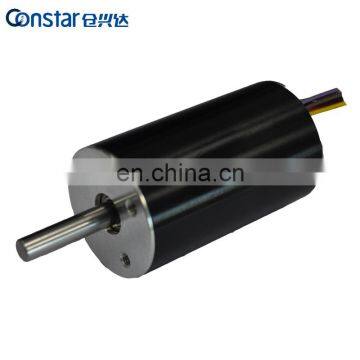

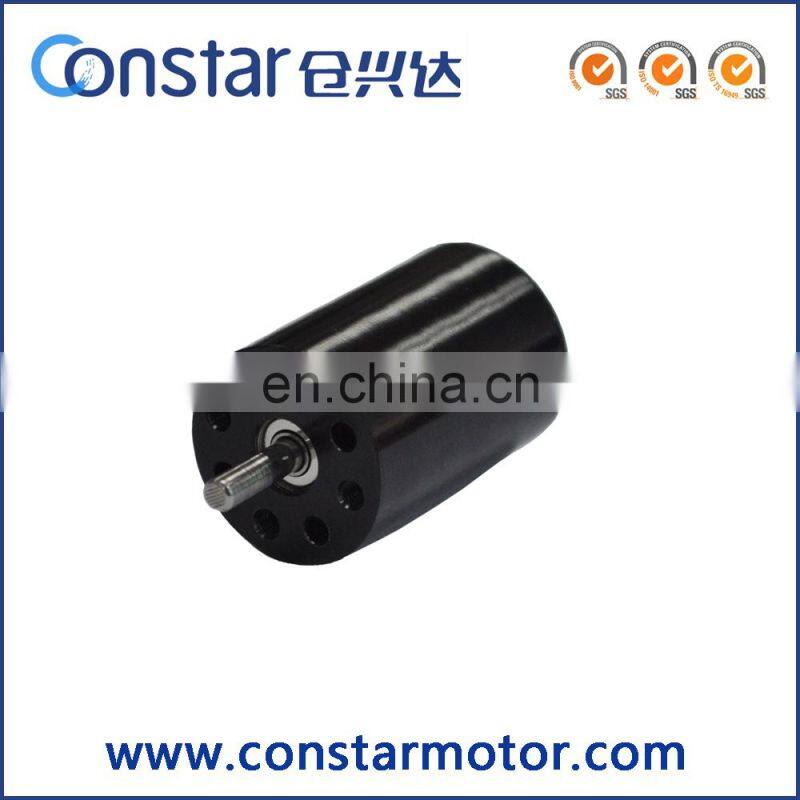

Product Show
Customized Motor
CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
Other Item
| Series | Dimension | Voltage | Terminal resistance | Speed | Current | Load Current |
| (mm) | (V) | (Ω) | (rpm) | (mA) | (mA) | |
| 1215ZWWN | Φ12*15 | 3.6 | 35000 | 300 | 9720 | 0.93 |
| Φ12*15 | 4.5 | 14500 | 100 | 3220 | 2.62 | |
| Φ12*15 | 7.4 | 42500 | 200 | 5740 | 1.55 | |
| 1220ZWWN | Φ12*20 | 5 | 17500 | 210 | 3500 | 2.5 |
| Φ12*20 | 6 | 17200 | 150 | 2900 | 3 | |
| Φ12*20 | 7.4 | 23000 | 100 | 3100 | 2.9 | |
| 1230ZWWN | Φ12*30 | 3.7 | 18000 | 230 | 4860 | 1.9 |
| Φ12*30 | 9 | 18000 | 150 | 2000 | 4.6 | |
| Φ12*30 | 12 | 11500 | 50 | 960 | 9.6 | |
| 1329ZWWN | Φ13*29 | 12 | 25000 | 100 | 2100 | 4.3 |
| 1635ZWWN | Φ16*35 | 12 | 45000 | 350 | 3750 | 2.5 |
| 2030ZWWN | Φ20*30 | 12 | 43300 | 370 | 3600 | 2.6 |
| Φ20*30 | 12 | 7000 | 100 | 580 | 14.9 | |
| Φ20*30 | 12 | 9200 | 250 | 770 | 11 | |
| 2040ZWWN | Φ20*40 | 9 | 6700 | 200 | 745 | 12.1 |
| Φ20*40 | 12 | 15000 | 250 | 1250 | 7.5 | |
| Φ20*40 | 12 | 8000 | 360 | 670 | 13.4 | |
| 2050ZWWN | Φ20*50 | 12 | 6000 | 160 | 500 | 18 |
