Home > Electrical & Electronics > Electric Motor > DC Motor > Llow Noise 12mm Inrunner rc 9V Brushless Motor Made in Shenzhen
US$ 7 - 40
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Constar
Place of Origin:
Guangdong, China
Model Number:
B1230N2B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Torque 41700rpm 16mm Diameter Coreless 12v Brushless dc Motor for Smart HomeUS$ 5 - 50MOQ: 5 Pieces -
B1635 Long Life 45000rpm Coreless Brushless DC Motor 12V Bldc MotorsUS$ 6 - 35MOQ: 500 Pieces
-
1220-3100KV RC Boat Car Mini EDF Helicopter Brushless Motor InrunnerUS$ 5 - 45MOQ: 2 Pieces
-
12mm 3 Phase 3.7v Inrunner Brushless DC Motor for RC Car and AirplaneUS$ 8 - 40MOQ: 10 Pieces
-
3phase 12v Micro DC Brushless Senserless MotorUS$ 5 - 40MOQ: 1 Piece
Brand Name
Constar
Place of Origin
Guangdong, China
Model Number
B1230N2B
Type
Micro Motor
Certification
CE, ROHS
Torque
2.7mNm
Usage
Boat, Car, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Continuous Current(A)
0.15A
Speed(RPM)
18000rpm
Commutation
Brushless

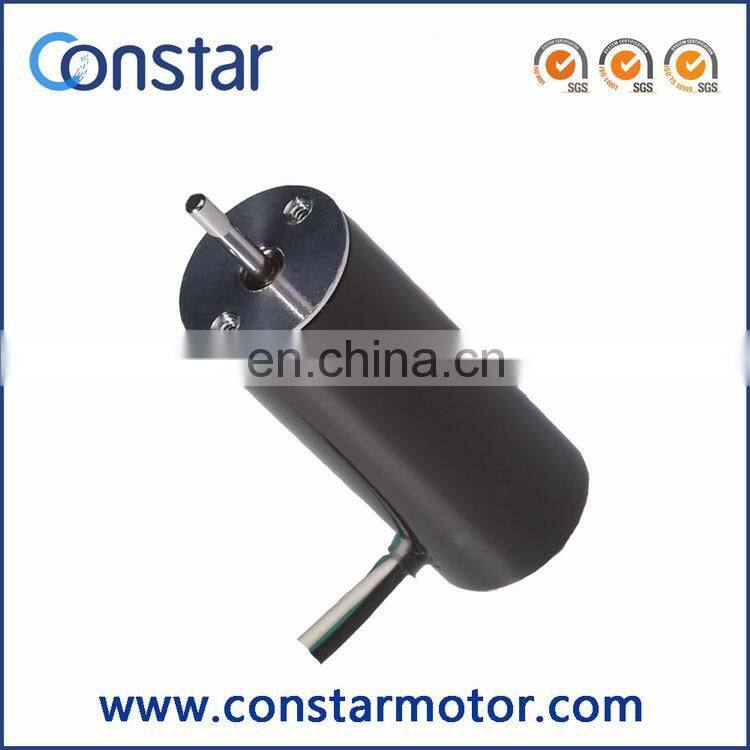

Llow noise 12mm inrunner rc 9V brushless motor made in Shenzhen
Medical equipment, industrial equipment, navigation models, electricaltools and mini household appliance
The following are our standard products, we also provide customized products and service.
| Characteristics 1230ZWWN | |||||
| -14-12.0 | -10-9.0 | -15-3.7 | |||
| 1 | Voltage | V | 12 | 9 | 3.7 |
| 2 | Terminal resistance | Ω | 9 | 2.4 | 0.6 |
| 3 | No-load speed | rpm | 11500 | 18000 | 18000 |
| 4 | No-load current | A | 0.05 | 0.15 | 0.23 |
| 5 | Nominal torque | mNm | 5.9 | 4.8 | 3.6 |
| 6 | Nominal speed | rpm | 6000 | 12800 | 12800 |
| 7 | Nominal current | A | 0.67 | 1.2 | 2.2 |
| 8 | Max. output power | W | 3.7 | 7.8 | 5.9 |
| 9 | Max. efficiency | % | 65 | 64 | 67 |
| 10 | Back-EMF constant | mV/rpm | 1.0 | 0.5 | 0.2 |
| 11 | Torque constant | mNm/A | 9.6 | 4.6 | 1.9 |
| 12 | KV Value | rpm/V | 960 | 2000 | 4860 |
| 13 | Speed/torque gradient | rpm/mNm | 930 | 1090 | 1430 |
| 14 | Rotor inertia | gcm2 | 0.21 | 0.21 | 0.21 |
| 15 | Weight | g | 15 | 15 | 15 |
| 16 | Thermal resistance housing-ambient | K/W | 21.6 | 21.6 | 21.6 |
| 17 | Thermal resistance winding-housing | K/W | 23 | 23 | 23 |
| 18 | Thermal time constant motor | s | 240 | 240 | 240 |
| 19 | Thermal time constant winding | s | 2 | 2 | 2 |
| 20 | Operating temperature range | ℃ | -40~+100 | -40~+100 | -40~+100 |
Lead wires length, Shaft length, Special coils, Gearheads, Bearing type, Hall sensor, Encoder, Driver
| Series | Dimension | Voltage | No-load Speed | No-Load Current | KV Value | Torque Constant |
| (mm) | (V) | (rpm) | (mA) | (rpm/V) | (mNm/A) | |
| 1215ZWWN | Φ12*15 | 3.6 | 35000 | 300 | 9720 | 0.93 |
| Φ12*15 | 4.5 | 14500 | 100 | 3220 | 2.62 | |
| Φ12*15 | 7.4 | 42500 | 200 | 5470 | 1.55 | |
| 1220ZWWN | Φ12*20 | 5 | 17500 | 210 | 3500 | 2.5 |
| Φ12*20 | 6 | 17200 | 150 | 2900 | 3 | |
| Φ12*20 | 7.4 | 23000 | 100 | 3100 | 2.9 | |
| 1230ZWWN | Φ12*30 | 3.7 | 18000 | 230 | 4860 | 1.9 |
| Φ12*30 | 9 | 18000 | 150 | 2000 | 4.6 | |
| Φ12*30 | 12 | 11500 | 50 | 960 | 9.6 | |
| 1329ZWWN | Φ13*29 | 12 | 25000 | 100 | 2100 | 4.3 |
| 1635ZWWN | Φ16*35 | 12 | 45000 | 350 | 3750 | 2.5 |
| 2030ZWWN | Φ20*30 | 12 | 43300 | 370 | 3600 | 2.6 |
| Φ20*30 | 12 | 7000 | 100 | 580 | 14.9 | |
| Φ20*30 | 12 | 9200 | 250 | 770 | 11 | |
| 2040ZWWN | Φ20*40 | 9 | 6700 | 200 | 745 | 12.1 |
| Φ20*40 | 12 | 15000 | 250 | 1250 | 7.5 | |
| Φ20*40 | 12 | 8000 | 360 | 670 | 13.4 | |
| 2050ZWWN | Φ20*50 | 12 | 6000 | 160 | 500 | 18 |
