Coreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control Aircraft

Constar Micromotor Co., Ltd.
Coreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control Aircraft thumbnail-1
Coreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control Aircraft thumbnail-2
Coreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control Aircraft thumbnail-3
Coreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control Aircraft thumbnail-4
Coreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control Aircraft thumbnail-5
Coreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control Aircraft thumbnail-6
Coreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control Aircraft photo-1
Coreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control Aircraft photo-2
Coreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control Aircraft photo-3
Coreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control Aircraft photo-4
Coreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control Aircraft photo-5
Coreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control Aircraft photo-6
US$ 5 - 45 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Constar
Place of Origin:
Guangdong, China
Model Number:
0615RCN-1-3.0
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Constar
Place of Origin Guangdong, China
Model Number 0615RCN-1-3.0
Type Micro Motor
Certification CE, ROHS
Torque 0.1mNm
Efficiency IE 1
Voltage(V) 3V
Output Power 0.18W
Continuous Current(A) 160mA
Speed(RPM) 12200rpm
Commutation Brush





Coreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control Aircraft

CONSTAR MICROMOTOR
Coreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control AircraftCoreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control AircraftCoreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control Aircraft
PRECISION DC CORELESS MOTORBRUSHLESS DC MOTORSERVO MOTOR
Coreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control AircraftCoreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control AircraftCoreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control Aircraft
GEARMOTORSTEP MOTORMINI CORELESS MOTOR





Applications

 Precision driving field in medical, health care, automobile, industrial automation, etc.

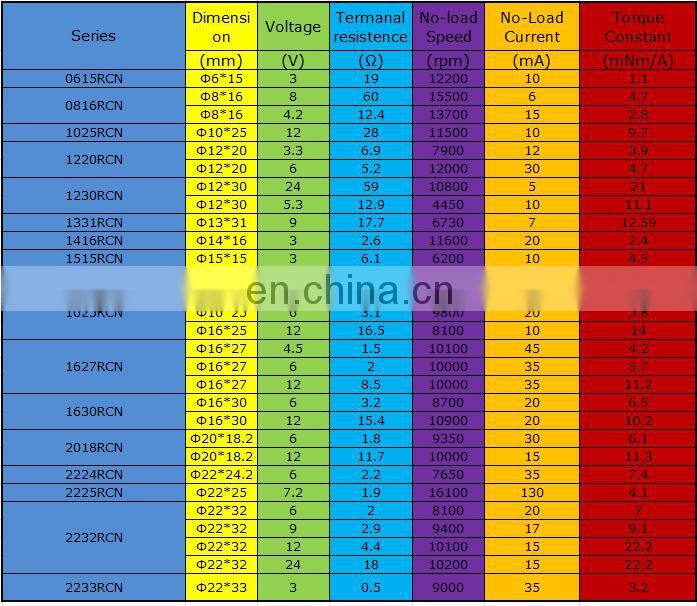

Specifications



                   -1-3.0
1VoltageV3.0
2Terminal resistanceΩ19.0
3No-load  speedrpm12200
4No-load currentmA10
5Stall  torquemNm0.41
6Stall  currentmA160
7Nominal torquemNm0.1
8Nominal speedrpm8150
9Nominal currentmA60
10Max. output powerW0.25
11Max. efficiency%60
12Back-EMF constantmV/rpm0.1
13Torque constantmNm/A1.1
14Speed/torque gradientrpm/mNm29900
15Rotor inertiagcm20.015
16Weightg2.5
Options

  Lead wires length, shaft length, special coils, gearheads

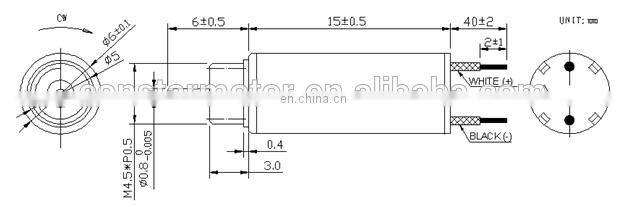

Outline Drawing

 Coreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control Aircraft

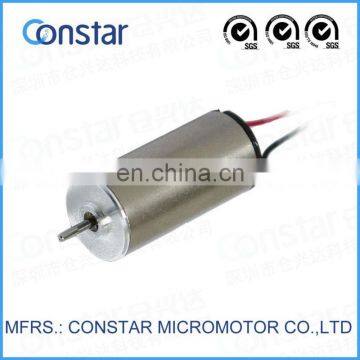

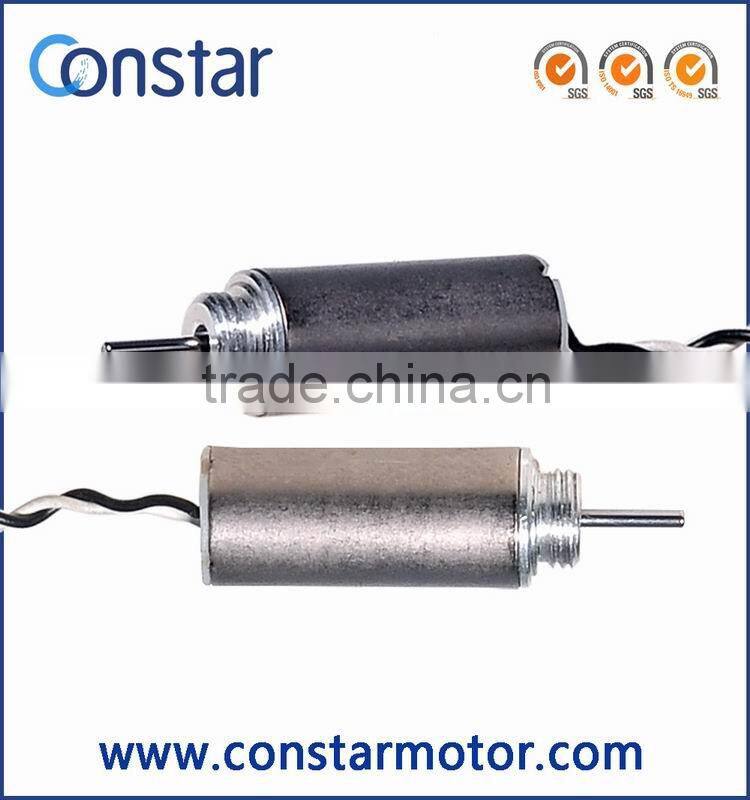

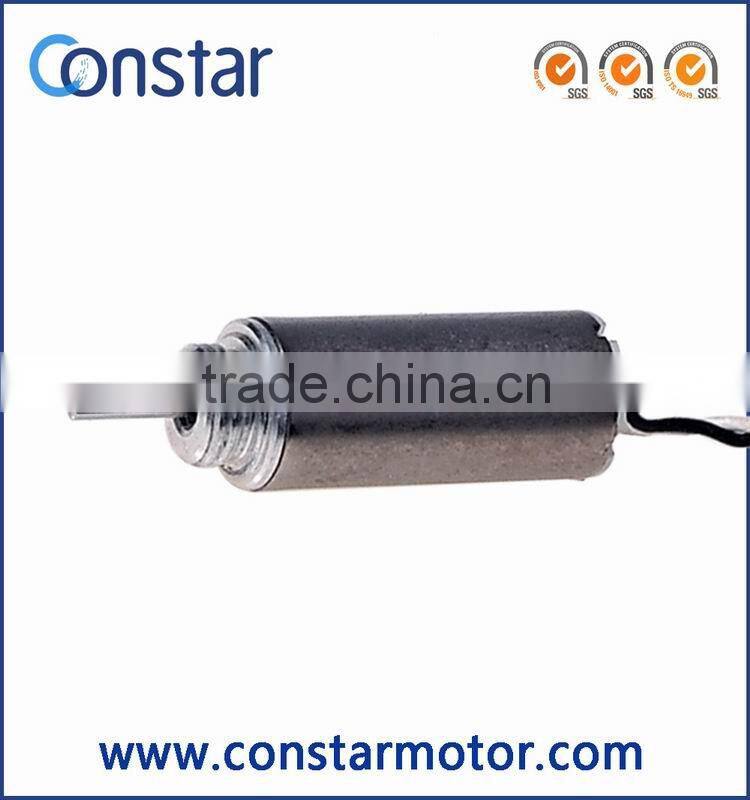

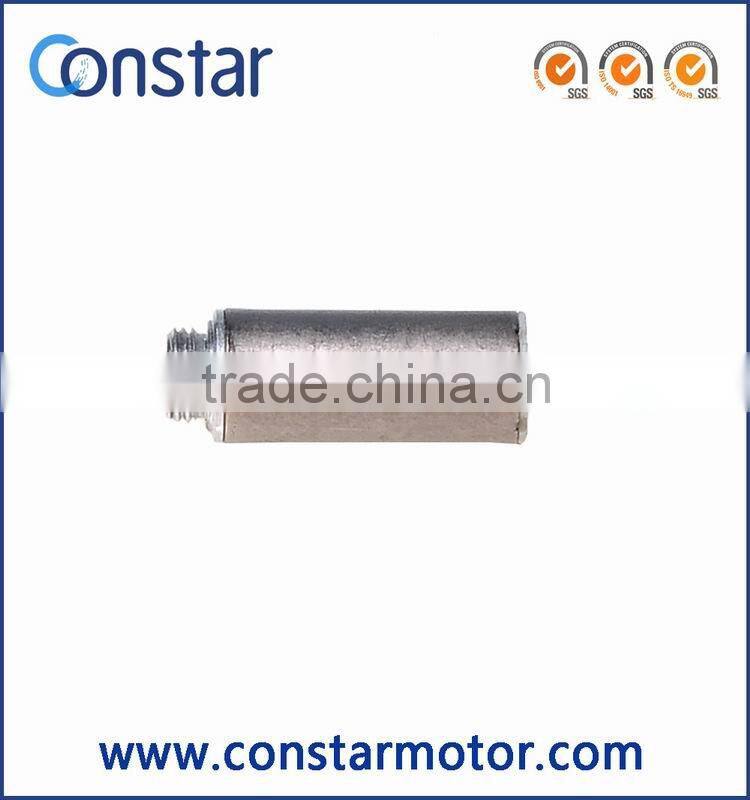

Product Show

 Coreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control AircraftCoreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control AircraftCoreless Motor DC 3V 0.1A 6mm*15mm Micro DIY High Speed Helicopter Coreless DC Motor 0615RCN For Remote Control Aircraft

Customized Motor Solutions:CONSTAR MICROMOTOR specialize in design, custom and manufacture electric motors,including DC Coreless Motor, Sonic Motor, Brushless DC Motor, Gear Motor, Servo Motor, DC Core  Motor and Mini Step Motor.All of them can be fully and easily customized . We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now!
