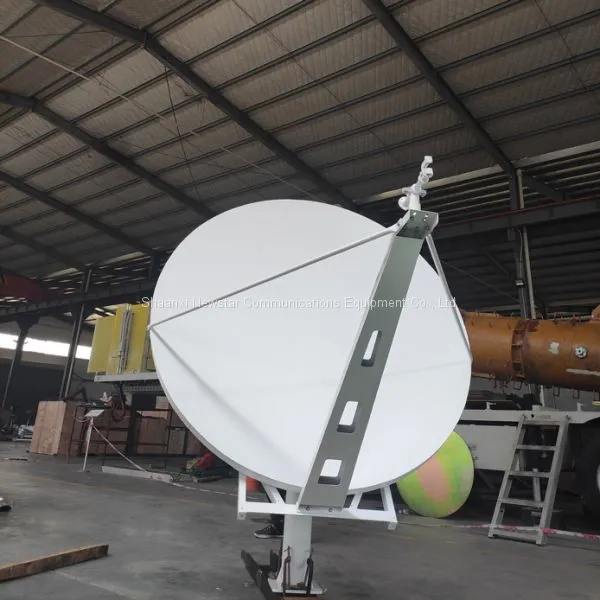

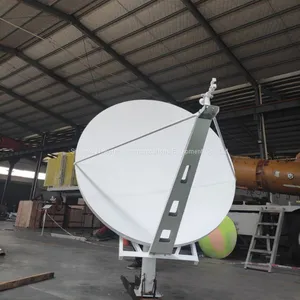

1.8m Offset Ka Band Satellite Communication Antenna
US$ 3500 - 4500
MOQ: 1 Set
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2008
Factory Size:
10,000-30,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
15 days
Related Products
-
3.7m S Band Rx/Tx Antenna for GEO SatelliteUS$ 22100 - 26500MOQ: 1 Set -
3.7m C/ku Band Limited Motion Earth Station AntennaNegotiableMOQ: 1 Set
-
4.5m C/Ku Band Limited Motion Satellite Communication AntennaNegotiableMOQ: 1 Set
-
6.2m C or Ku Band Earth Station Satellite Communication AntennaNegotiableMOQ: 1 Set
-
9m Cassegrain Satellite Communication AntennaNegotiableMOQ: 1 Set
Characteristics:
Meets or exceeds CCIR 580 and INTELSAT requirements
Offset designed;
High gain, Low sidelobe, High G/T rate;
Linear or circular polarization optional;
Reasonable structure and easy operation.
Standard configuration
Main reflector, back support frame, kingpost, feed and feed support, solid wretch, foundation template and standard component.
Optional
BUC, LNB, Modem, spectrum analyzer, moving foundation, BUC fix bracket, lightning protection device, installation tools, cable and connector.
RF specifications
Mechanical specifications
Environment specifications
Optional
BUC, LNB, Modem, spectrum analyzer, moving foundation, BUC fix bracket, lightning protection device, installation tools, cable and connector.
RF specifications
| Model | NS-SECK-180 | |
|
Operating Frequency GHz |
Ka band | |
| Receive | Transmit | |
| 17.7~21.2 | 27.5~31 | |
| Antenna gain dBi | 49.28@19.95GHz | 52.75@29.75GHz |
| Polarization | Linear, circular | |
| XPD dB(linear) | ≥35 | ≥35 |
| Axial Ratio(2 port, circular) | 1.5 | 1.5 |
| VSWR | 1.25 | 1.25 |
| Noise temperature EL : 10° 30° 50° |
126 K 85 K 80 K |
/ |
| -3dB beam width | 0.564° | 0.378° |
| Feed insertion loss, dB | 0.6 | 0.6 |
| Power capacity, KW | / | 2 |
| Interface | WR-42 | WR-28 |
| Rx-Tx isolation, dB | 85 | |
| First sidelobe, dB Far sidelobes, dBi |
-14 29 - 25 logθ(1°≤θ |
|
| Antenna diameter | 1.8m |
| Antenna type | Offset, single piece panel |
| Antenna mount type | EL over AZ |
| RMS | ≤0.3mm |
| Antenna weight(N.W) | 75 kg |
| Antenna travel range AZ EL Pol |
0°~360° 0°~90° ±90° |
| Antenna drive mode | Manual |
| Working wind speed | 72 km/h |
| Without damage | 216 km/h |
| Working temperature | -40ºC~50ºC |
| Humidity | 100% |
| Solar radiation | 1135Kcal/h/m² |
| Ice load | Work normally: 13mm ; without damage: 25mm |
| Seismic capacity | Horizontal: 0.3G; vertical: 0.1G |
| Surface treatment | Steel parts: hot dip galvanized; aluminum part: primer paint+surface paint |
