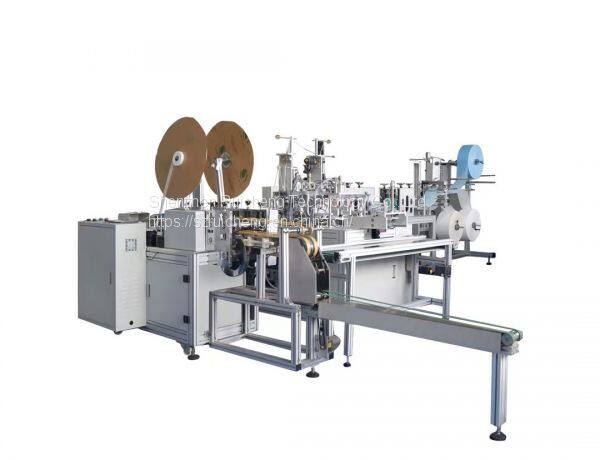

Ultrasonic Full Automatic Earloop Welding Machine For Face Mask Making

Brief introduction of bandage mask machine:

The strapping mask machine uses ultrasonic welding to weld the non-woven straps to both sides of the mask body. Only one person needs to place the mask body on the conveyor belt of the machine, and then pull the tube to wrap the edges, press the flower wheel, and cut the straps. The work of outputting and outputting the finished product is completed automatically.

Machine parameters:

Ultrasonic frequency 20K

Power 3KW

Machine weight 300kg

Machine output 40-50pcs/min

Taping accuracy ±2mm

Working voltage 220V50Hz

Dimensions L*W*H: 1980(L)×750(W)×1370(H)m/m

Product Description

1.Aluminum alloy body, beautiful and firm

2.PLC control, stable performance

3.Structure limit, easy to adjust

4.hotoelectric detection reduces the failure rate

5.Motor control, stable and reliable

6.Pneumatic control, high efficiency and environmental protection

product advantages:

1. Can effectively control production efficiency and production schedule.

2. The frame is made of aluminum alloy and stainless steel, and the appearance is light and beautiful without rust.

3. Frequency conversion control, can adjust the operating speed of the equipment according to actual needs.

4. Pull the barrel to feed, = it can control the width of the raw material and save the cost.

5. The length and size of the finished product are uniformly controlled, with a deviation of ±1mm, which can effectively control the length of the finished product.

6. The equipment has a high degree of automation and low requirements on the operating staff. It only needs to discharge the materials and arrange the finished products.

7. This machine adopts ultrasonic Taiwan system, Japanese transducer, stable performance and convenient operation.

8. The automatic ultrasonic welding wheel is made of steel DC53, which prolongs the life of the mold and is wear-resistant and durable.
