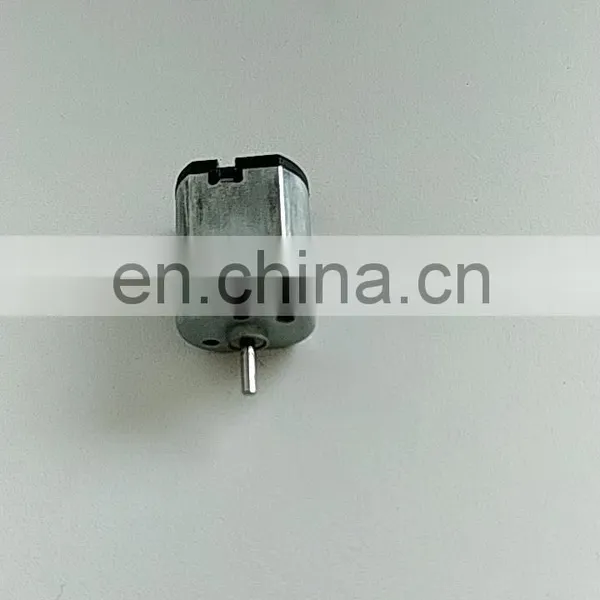

FF-030 DC brushed motors with pinion gear for RC hobbies
USD $0.5 - $0.7
/ Piece
5000 Pieces(Min.Order)
- 200000 Piece / Pieces per Month
- Shenzhen/Hongkong
- T/T Credit Card
You May Like
- RF-370CA-11670 Brushed dc motor for home appliance
- RS-795 12V 17500rpm DC motor with 5slots for coffee machine
- RS-750 24V 500W DC motor with metal end cap for blender
- 12V DC Motor RS-555 for Seat Belt Pretensioner
- Low price 300 3v dc micro motor permanent magnet motor
- 775 24v high speed 500w stainless steel shaft dc motor for blender
Product Details
Brand Name: | MBI | Place of Origin: | Hunan, China | Model Number: | FF-030PA-11155 |
Type: | Micro Motor | Certification: | CCC, CE, ROHS, UL, VDE | Torque: | 5.0g.cm |
Usage: | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction: | Permanent Magnet | Efficiency: | IE 2 |
Protect Feature: | Explosion-proof | Continuous Current(A): | 0.17A | Speed(RPM): | 5500rpm |
Commutation: | Brush |
Product Description
3V FF-030 DC brushed motors with pinion gear for RC hobbies |
Product Description
Technical datas:
MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
OPERATING | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
RANGE | V | r/min | A | r/min | A | mNm | g.cm | W | mNm | g.cm | A | ||
FF-030PA | 11155 | 2.0-4.0 | 3 | 7200 | 0.045 | 5500 | 0.17 | 0.49 | 5 | 0.28 | 2.06 | 21 | 0.59 |
1592 | 2.0-4.0 | 3.5 | 14300 | 0.09 | 12500 | 0.3 | 0.49 | 5 | 0.64 | 3.92 | 40 | 2 | |
FF-030PK | 05440 | 3.5-12.0 | 12 | 11000 | 0.02 | 7800 | 0.065 | 0.49 | 5 | 0.4 | 1.67 | 17 | 0.18 |
Outline drawing:
Application:
Toys, Mini RC car, Personal care products, Beauty products, Camera, Precision toys, Instruments,MD player, CD player etc
