Home > Products > Pump motor > 370 micro dc motor air pump vacuum pump 3v 12v 24v 2.0LPM
370 micro dc motor air pump vacuum pump 3v 12v 24v 2.0LPM
- 1000000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
- 030 Wrist blood pressure monitor micro air Pump
- 12 volt strong micro vibration brushed DC motor 130 model for fan toy
- n10 customized 6v 3v toy mini dc low rpm gear motor worm with double shaft
- mini n20 double shaft dc gear motor 5v for smart RC car robot n20
- n30 9 volt mini dc motor with double shaft gear reduction box motor for rc car robot model DIY engine toy
- 370 micro dc vacuum air pump motor for eye messager
Product Details
Brand Name: | SFL | Place of Origin: | Guangdong, China | Model Number: | SRF-370 |
Product Description
Product features:
Refined copper wire, quiet technology to strengthen power, long service life, stable performance, large torque, less heat, high temperature resistance, etc
Reciprocating unit: diaphragm pump
Driving mode: Electric
Delivery medium: gas
Number of impellers: single stage
Pump shaft position: Horizontal
Extraction rate: 3L / M (L / s)
Air extraction: above 5000cc
Performance: wear resistance
Power: 0.03 (kw)
Discharge diameter: 2mm
Maximum working pressure: - 70
Limit pressure: - 75 (PA)
Dimension: 58 * 27mm
Performance parameters:
Rated voltage | DC 3V | DC 6V | DC 9V | DC 12V | DC 24V |
Rated current | ≤840mA | ≤420mA | ≤280mA | ≤210mA | ≤105mA |
Nozzle diameter | Φ4.2mm | ||||
Greater pressure | ≥400mmHg | ||||
Vacuum pressure | >-58Kpa | ||||
Air flow | ≥2.0LPM | ||||
Inflation time | ≤10s (from 0 to 300mmHg in A 500CC tank) | ||||
Noise | ≤60db (30cm away) | ||||
Aging test | ≥50,000 times (On 10s,OFF 5s) | ||||
Leakage | ≤ 3.0mmHg from 300mmHg in a 500CC tank | ||||
Weight | 60g |
Remarks:Other parameters: according to customer demand for design

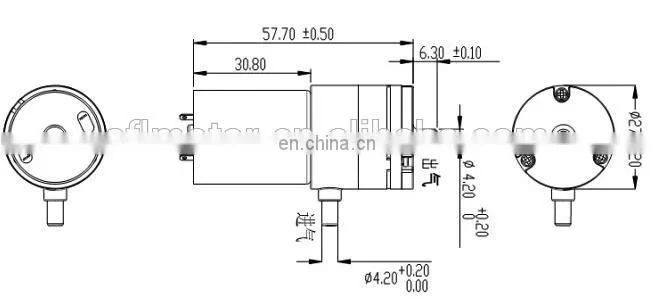

Appearance Size/ Unit: mm

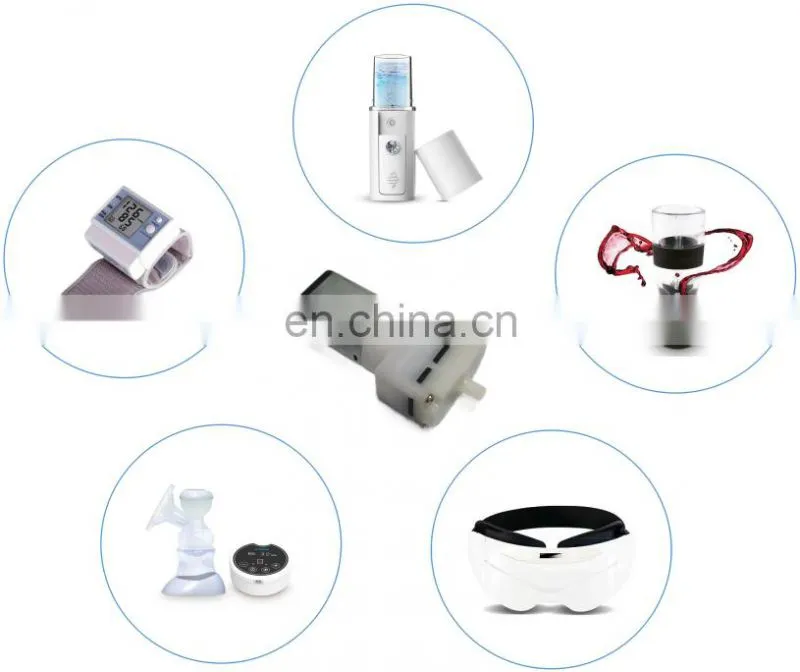

Household appliances: soap dispenser, black head, scraper, massage apparatus, massage chair, fragrant chair, humidifier, air purifier, coffee maker,
electric milk pump diaphragm pump, soybean milk machine, atomizer, fish tank aeration micro air pump, electric spray eye massage apparatus,
DC air pressure increasing pump, metering pump, oxygen pump, adult supplies, etc.
Medical devices: sphygmomanometer, essential oil pump, etc
About us
- More than 50 sets automatic manufacturing equipment and detecting instruments.
- R&D engineer group with practised experience, and long-term customization
- Professional technical experience and reliable after-sale service
- Good cost control and high cost performance
- ISO9001 quality management system certification
- Up to 50,000 motors daily output
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: The sample fee is according to the stock and cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
