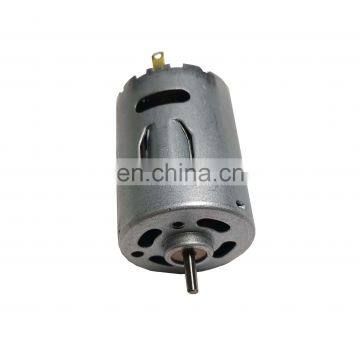

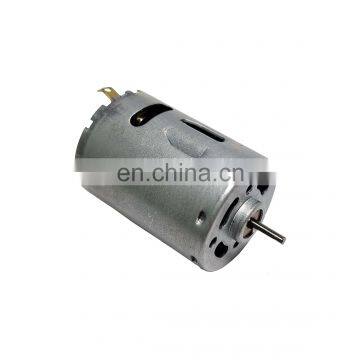

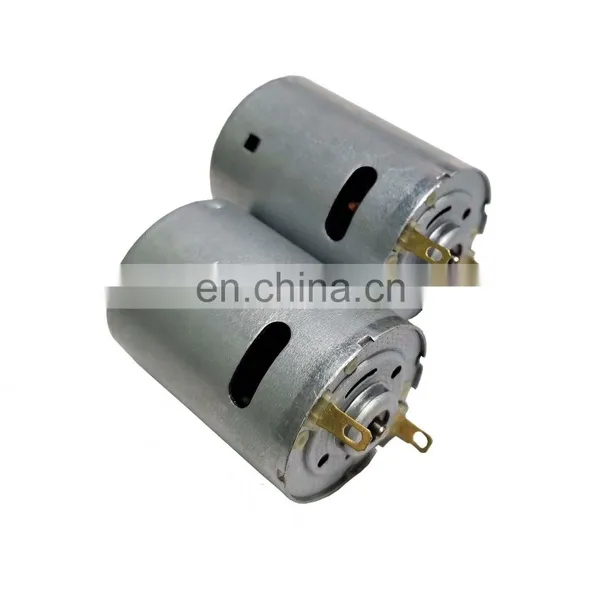

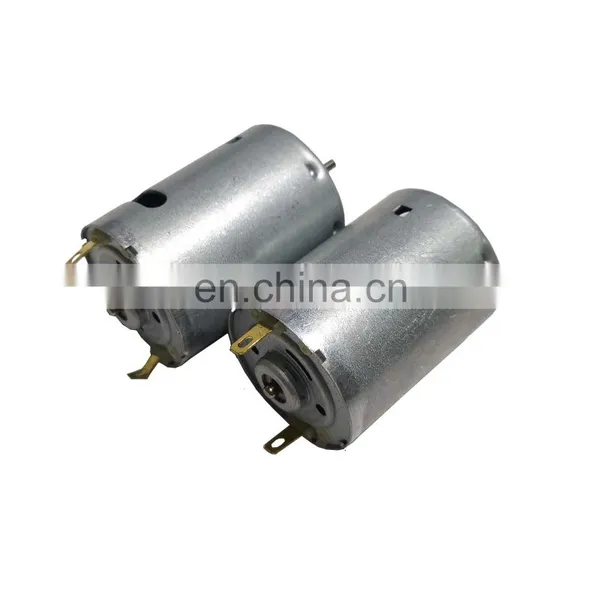

12 Volt High Speed Big Electric dc Home Fan Motor 380SH
US$ 0.7 - 1.5
/ Piece
10 Pieces(Min. Order)
- Shenzhen
- T/T Credit Card
You May Like
-
5v M20 Bed Vibration Mini Motor Engine for Massage
-
5v Miniature Vibration M20 dc Motor for Dildos
-
3v 6mm 612 High Vibrating Speed Small Coreless Eccentric Vibration dc Motor for Massager
-
0716 7mm 3v 3.7v 12v Coreless Vibration dc Motor for Messager
-
370 Micro Mini Air Pump Motor for Fish Tank Usage Vacuum Pump 3.7V -12V
-
370 Micro dc Vacuum Air Pump Motor for Eye Messager
Product Details
| Brand Name | SFL | Place of Origin | Guangdong, China | |
| Model Number | SRK-380SH |
Product Description
Product Description
Motor characteristic example:
| MODEL | VOLTAGE | NO LOAD | AT MAXMIUM EFFIVIENCY | STALL | ||||||
| OPERATING RANGE | Rated | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |
| V | r/min | mA | r/min | mA | g.cm | w | g.cm | A | ||
SRK-380SH | 12-30 | 24 | 7800 | 80 | 6310 | 34 | 72.3 | 4.7 | 102 | 14.5 |
SRK-380SH | 9.0-24 | 12 | 9700 | 22 | 8050 | 108 | 103.3 | 8.5 | 610 | 2.3 |
Remarks:Other parameters: according to customer demand for design

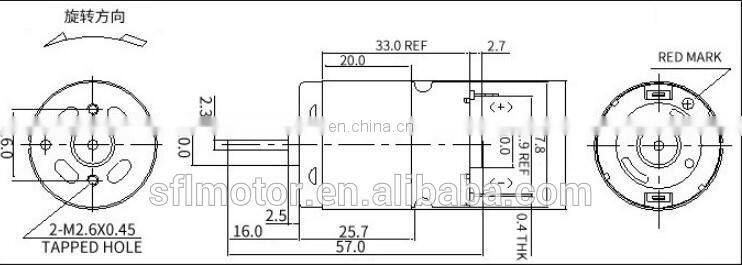

Appearance Size/ Unit: mm
Company Information
About us
- More than 50 sets automatic manufacturing equipment and detecting instruments.
- R&D engineer group with practised experience, and long-term customization
- Professional technical experience and reliable after-sale service
- Good cost control and high cost performance
- ISO9001 quality management system certification
- Up to 50,000 motors daily output
Our Services
Customization service as below are available
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: The sample fee is according to the stock and cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
