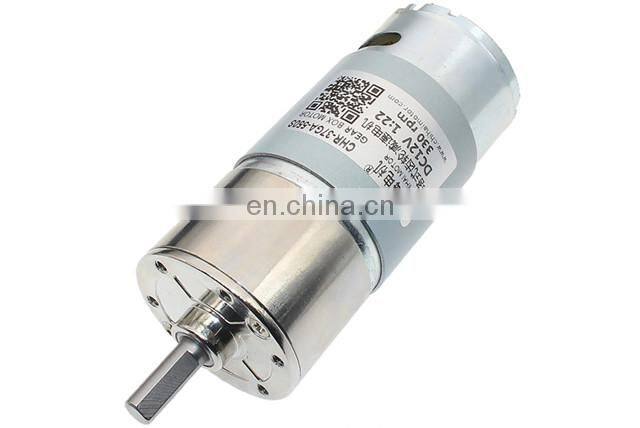

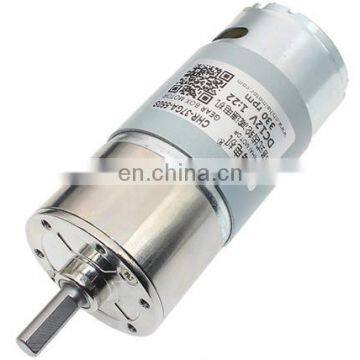

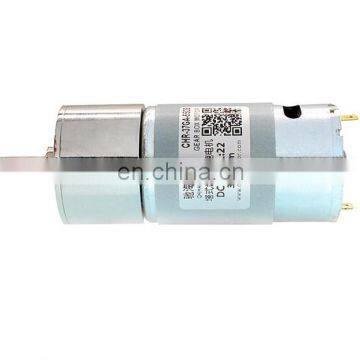

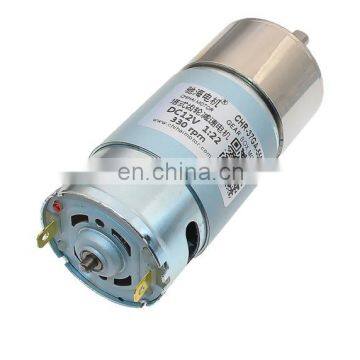

Help CenterChihai Motor CHR-GM37-550Permanent Magnet dc Geared Motorhigh Speed and High Torque 24V Enter Output Shaft dc Deceleration Motor
Related Products
-
Chihai Motor CHP-28GP-365S 28mm 12v 24V 25rpm Torque 15kg.cm Permanent Magnet DC Planetary Gear MotorUS$ 18 - 18MOQ: 1 Piece -
Chihai Motor 37mm Double Shaft High Torque GM37-545SD 24v 80w Mini Electric dc Gear Motor With Reduction GearUS$ 6 - 7.6MOQ: 100 Pieces
-
Chihai Motor Double Shaft GM37-545SD Metal Gears Carbon Brush Motor 12V Customized Mini dc Gear Motor for Toy Home ApplianceUS$ 7.6 - 7.6MOQ: 1 Piece
-
CHR-GM25-370K High Speed 25mm dc Carbon Brush Gear Motor Low Voltage Dc 12vMini Motor For Intelligent Electric Control Toy CarUS$ 7 - 8.2MOQ: 200 Pieces
-
Chihai Motor 4575K Low Power High Torque 24v 8000rpm Permanent Magnet dc Carbon Brush Motor for Massage Chairs,medical EquipmentUS$ 11.5 - 11.5MOQ: 1 Piece
Brand: | Chihai motor |
Product name: | CHR-GM37-550Permanent magnet dc geared motor |
Features: | Center shaft ,all metal gear structure, high magnetic torque 550 motor matching |

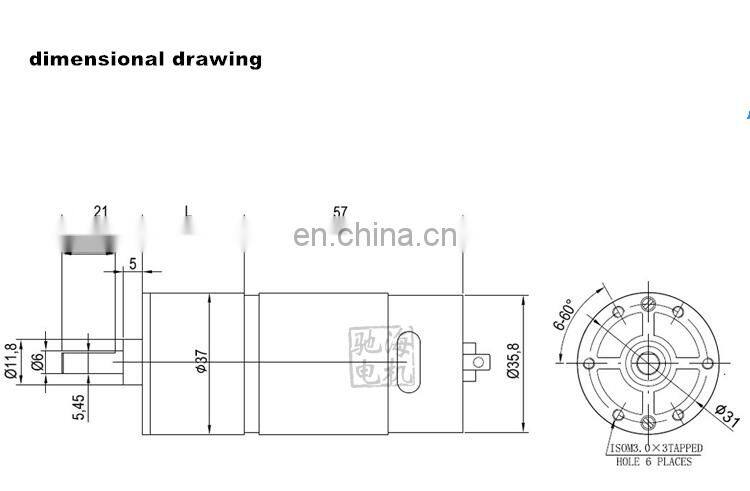

External diameter: | Φ37mm X Lmm (different deceleration radio different length). |
Axle diameter: | out axis diameter 6mm D font D thick 5.45mm (batch customizable) |
Out axis length: | length 21mm D length 14mm(batch customizable) |
Weight: | about 300 grams (matching different deceleration ratio weight). |
Applications: | Intelligent Robot, electric curtain, intelligent balance car, intelligent manipulator, etc |

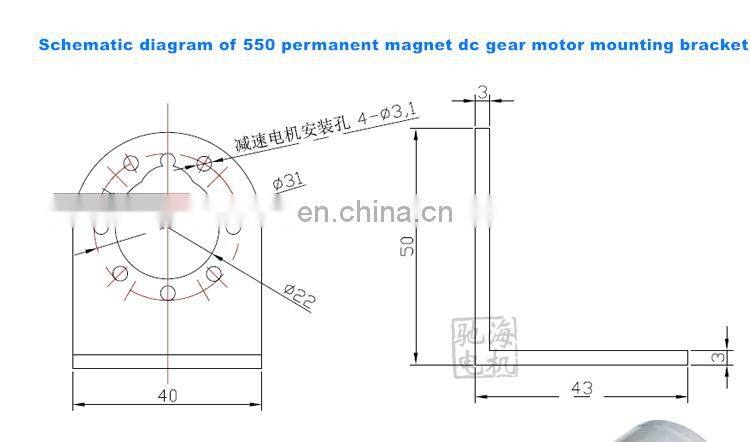

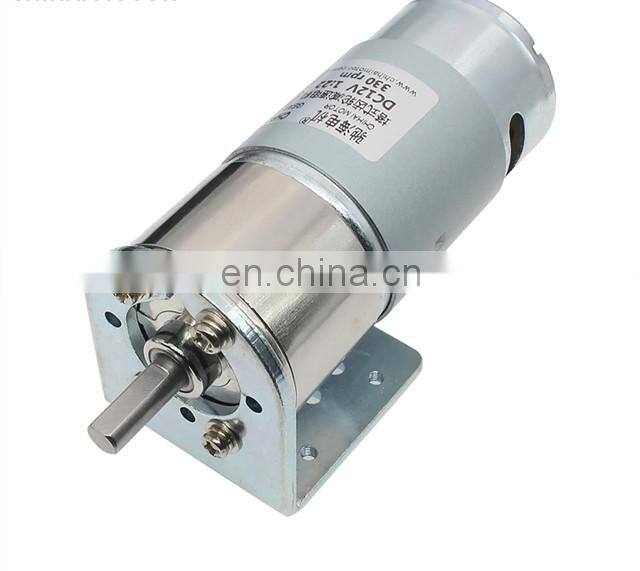

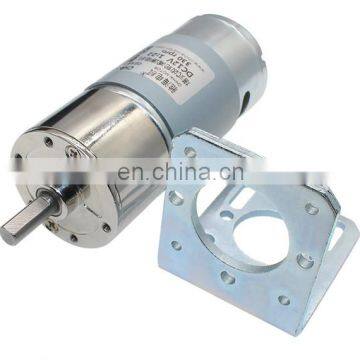

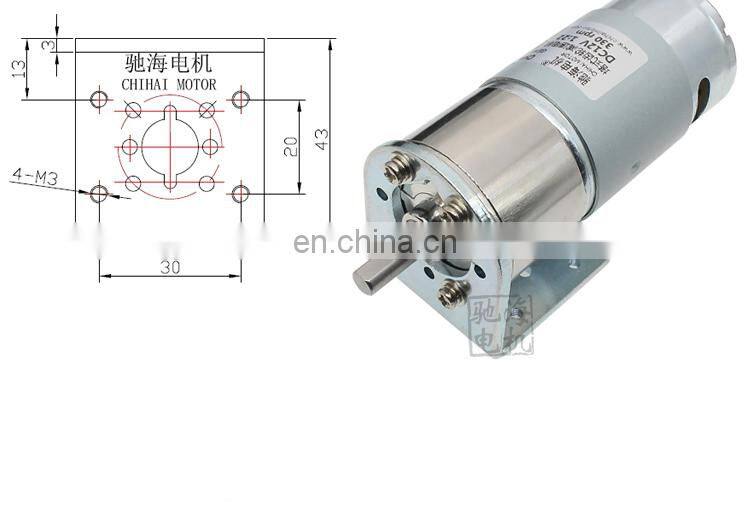

Optional accessory: | Reducer flange mounting bracket, flange coupling, forward and reverse stepless speed drive, power supply, etc |
Product details:

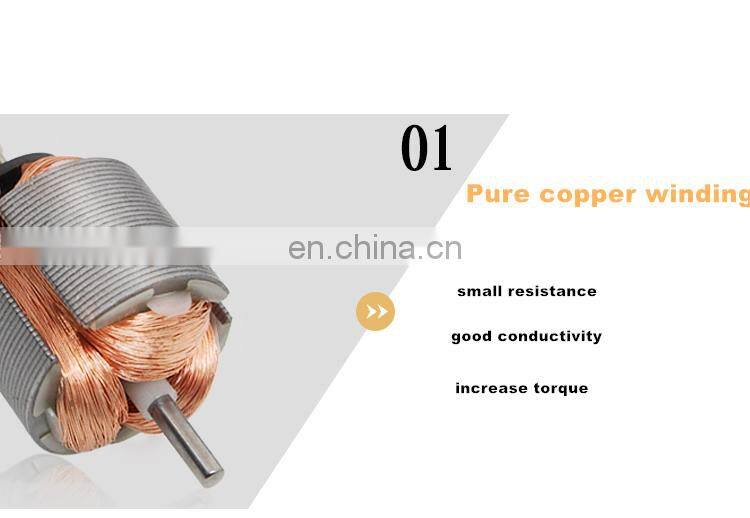

1. pure copper wire winding
The rotor part adopts pure copper group, small resistance and strong conductivity, so that the motor torque increases.

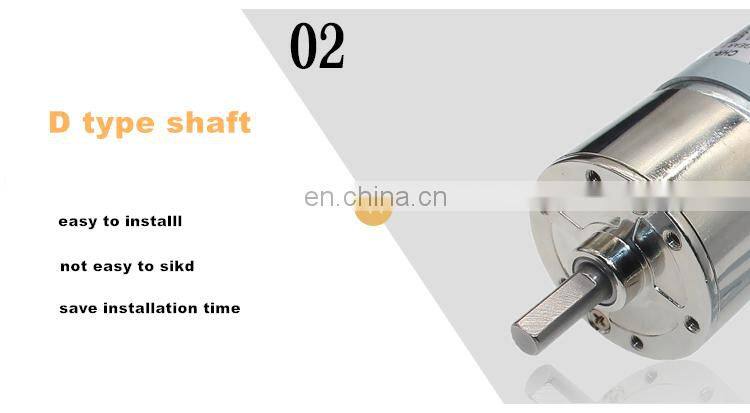

2.D font axis
D type shaft, more convenient installation, not easy to slip, save installation time.

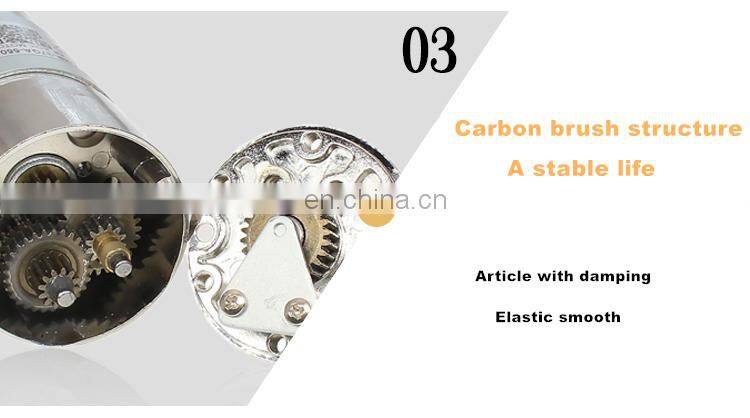

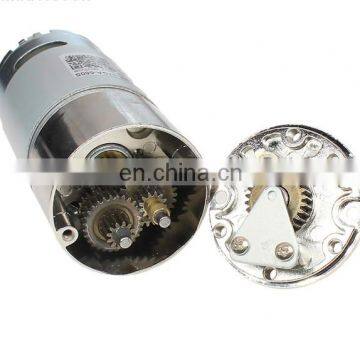

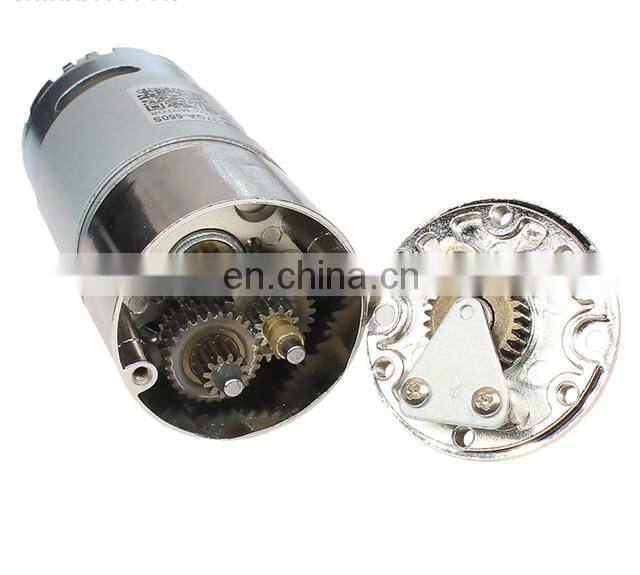

3. adopt all metal gear structure.
Wear resistance, torque resistance, long life, fast heat dissipation, high precision and strong compound ability

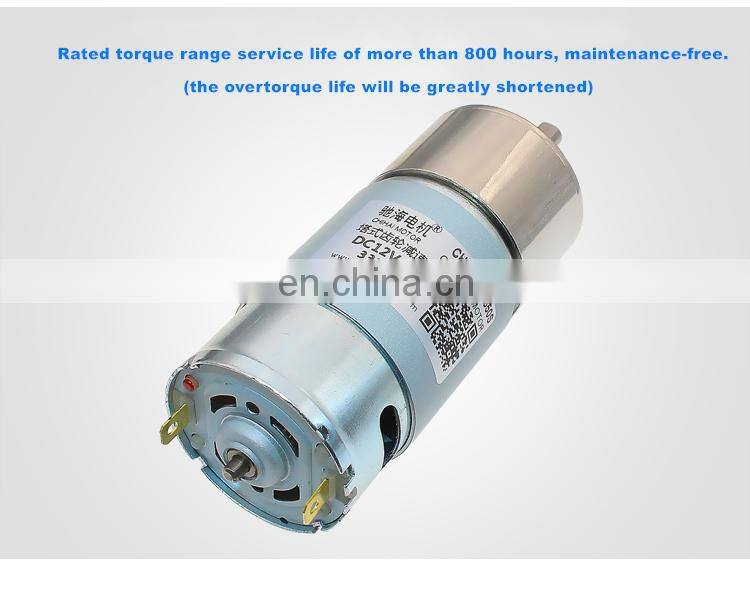

4. Rated torque range of service life of up to 800H, maintenance-free.(overtorque life can be greatly shortened)
If you are not sure whether it is what you need,you need our support
chihai motor CHR-GM37-550Permanent magnet dc geared motorhigh speed and high torque 24V enter output shaft dc deceleration motor
Shenzhen chihai motor co., LTD., founded in 2002, is a professional manufacturer of micro dc motor and dc reduction motor.We started with micro motor, and then developed a number of series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.
At present, our company focuses on developing various types of motors with voltage between DC1VC and DC30V, and motor diameter between 8 and 51mm(Including micro dc motor, micro dc deceleration motor, dc brushless motor, stepper motor, hall encoder motor, war game motor, motor related accessories.)
Chihai motor service industries are: robot, intelligent bathroom, intelligent lock, security, electric valve (water valve, air valve, etc.), electric curtain, intelligent cleaning machine, shaking bed, banking system, vending system, medical equipment, beauty instruments, etc.The company has made great breakthroughs in the field of low-noise and high-torque technology, providing innovative solutions with quality, price and service competitiveness for some well-known brands.
Welcome to inquire, negotiate cooperation, we will serve you wholeheartedly!
