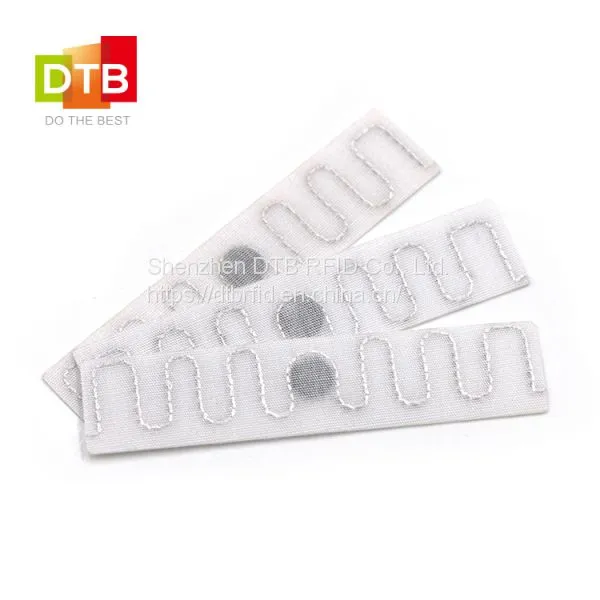

RFID Waterproof Fabric Tag

Overview

Operating Frequency

    860~960 MHz

International Standards

    EPC Global Class1 Gen2    ISO 18000-6C

Chip options

    Impinj R6         NXP Ucode 7

Size options

    86*16mm       72*16mm    58*13mm     customized size

Thickness

    Tag thickness 0.6mm ( 1.3mm at chip position)

Base material

    COB + Washable fabric + metal fiber line

Glue options

    Hot melt glue       No need glue (by sewing)

Hole options

    hole punching       no holes

Working endurance

    3 years or 200 times washing

Description of RFID Waterproof Fabric Tag

High temperature and humidity resistance, can be washable, soaking and rubbing repeatedly, can be direct ironing and sewing. With high sensitivity, strong anti-jamming capability, excellent read/write performance etc. Mainly use for clothing factories, laundry, medical logistics laundry, chemical raw materials and high temperature, corrosion resistance and other

harsh environments.

Model Options

Packing details For ISO Size

●100 pcs per OPP bag;

● 10 pcs per white box;

● 10,000 pcs per paper carton;

● Carton size: 50*23*16 CM;

●G.W. : 20kg per carton.
