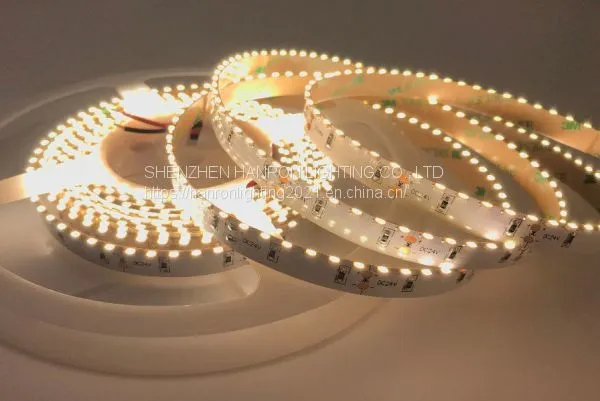

SMD 335 120LED/M Led Strip Light
Hanron Lighting Co. Limited's SMD 335 LED Flexible Strip Lighting, 120LED/Meter, both waterproof and non-waterproof, is to satisfy customers seeking a high brightness of the lighting and brilliant color effects. By using side view 335 SMD LED as a light source, they obtain a high lumen output to 6-7lm and the color range from WW, NW, PW, CW to Red, Blue, Green, Orange and yellow. Life time is up to 30,000hrs. They are ideal light source for home decoration, hotel, KTV, cove ect.
Features:
1. Side view SMD335 chip, high brightness, wide beam angle, low decay.
2. Easy to install for any bending
3. Low power consumption, long life span, free maintenance
4. Working temperature: -40℃-50℃
5. Storage temperature:-50℃-60℃
6. Certification: ETL/CE/RoHS/IEC
Application:
1. Cove lighting
2. Architectural lights for canopy, corridor, window, archway
3. Backlight or edge lighting for signage
4. DIY lights for home use
5. Path and contour marking
6. Decorative lights for holiday, event, show, exhibition
7. Special light effect for art gallery and glass-made items
Parameter
Item NO. |
LED |
LED QTY |
Voltage |
Power |
Color |
Wave Length/C. T. |
Luminous Flux/M |
Beam |
Protect Level |
HR00-H12ANW120P |
SMD335 |
120 |
DC12/DC24 |
12 |
NW |
4000-4500K |
1000LM±10% |
120° |
IP20/ |
HR00-H12AWW120P |
SMD335 |
120 |
DC12/DC24 |
12 |
WW |
2800-3200K |
1000LM±10% |
||
HR00-H12ACW120P |
SMD335 |
120 |
DC12/DC24 |
12 |
CW |
5500-6500K |
1000LM±10% |
||
HR00-H12AR120P |
SMD335 |
120 |
DC12/DC24 |
12 |
RED |
620-630nm |
270LM±10% |
||
HR00-H12AY120P |
SMD335 |
120 |
DC12/DC24 |
12 |
YELLOW |
585-595nm |
270LM±10% |
||
HR00-H12AB120P |
SMD335 |
120 |
DC12/DC24 |
12 |
BLUE |
465-475nm |
162LM±10% |
||
HR00-H12AG120P |
SMD335 |
120 |
DC12/DC24 |
12 |
GREEN |
520-530nm |
468LM±10% |
Hanron Lighting Co., Ltd is one of professional rgb led strip manufacturers, we provide high quality LED flexible strip, LED rigid Bar, LED cabinet light, LED tape light, led ribbon light and etc. Want to know more? Please contact us.
