150 micron Five layers sintered sintered felt woven wire filter mesh
- 10000 Piece / Pieces per Month
- any ports
- T/T Credit Card
- 150 mesh nylon mesh filter bags Shield machine dust collector filter bag
- Demalong supply SPL Series lubrication system stainless steel disk filters wire mesh Servo Valve filter disc
- China factory Supply lubrication system filter SPL80-X 118 mesh filter cartridge
- A67999-010 A67999-020 filter element servo valve a67999 100 filter disc stainless steel filter mesh
- Replacement to HIFI Hydraulic System Oil Filter SH670089V,SH670089V Machinery Oil Cartridge Filter, Industrial Oil Filters
- Alternatives to VICKERS hydraulic oil filter element 726662,VICKERS Gear box lubrication system filter cartridge 726662
Product Details
Brand Name: | DEMALONG | Place of Origin: | Henan, China | Model Number: | filter mesh |
Material: | Other | Length: | standard | Thickness: | standard |
Type: | Filter Elements | Width: | standard | Usage: | Other |
Filter Rating: | - | Hole Shape: | Other |
Product Description

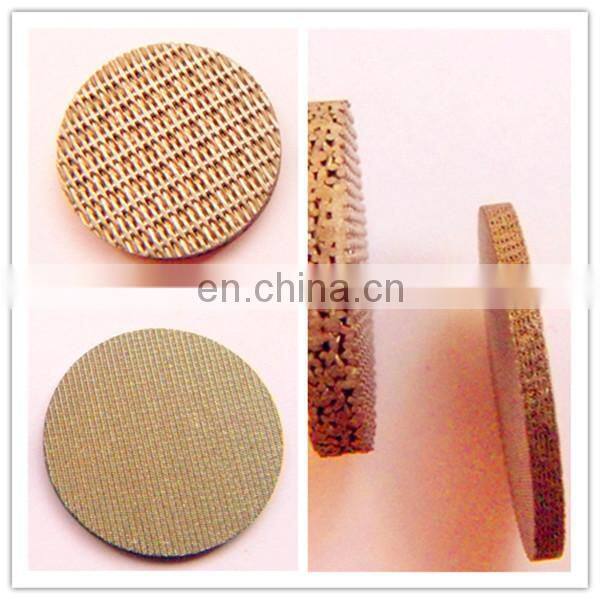

Five layers sintered woven wire mesh 150 micron
sintered mesh

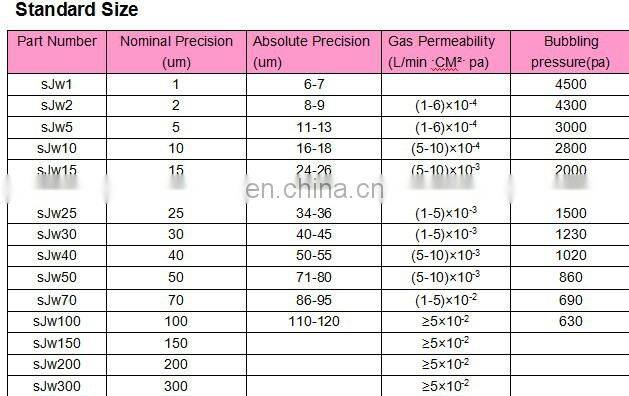

Specification:
Standard size: | 500×1000mm; 600×1200mm; 1000mm×1000mm |
Standard Thickness: | 1.70mm |
Material: | SUS316L,312 |
Micron: | 1~300um |
1.best strength, high mechanical strength and high crushing strength, easy to processing, welding and assembly.
2.Stable air permeability&flow rate
3.Working temperature: can be used in -200℃~600℃ temperature environment and acid and alkaline environment of filtering
4.Easy to back wash, long working life(can be used against water, filtrate, ultrasonic wave, melted, baking and cleaning method).
Product introduction:
Sintered woven wire mesh can be used for several (fine or deep sub micron) filtration applications, for example the petrochemical and chemical industry, pharmacy, and water conditioning.

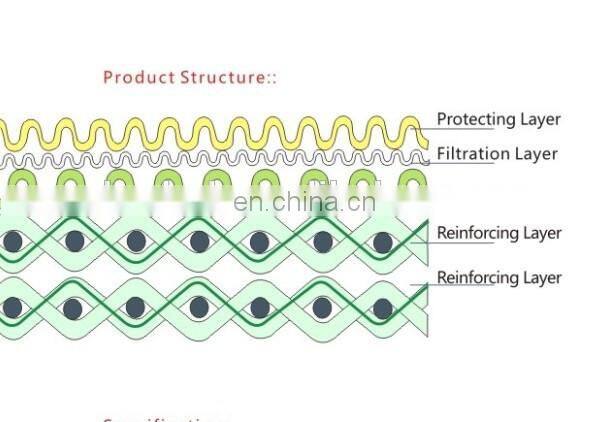

Sintered woven wire mesh consists of multi-layers of woven wire mesh laminated together by use of ‘sintering’. This creates an enormous class of new materials with a very wide variety of mechanical properties. By combining multiple layers of different mesh weaving, it is possible to design material with specific target thickness, permeability, pore size, and mechanical strength.
Some layers are used for high precision filtration, others for protecting and reinforcing.
TEST STANDARD:
Our filter elements are tested according to ISO 2943
Compatibility with hydraulic fluids ISO 3968
Flow characteristics ISO/DIS 3724
Flow fatigue characteristics ISO/DIS 4572
Filter performance test (Multi-pass test) ISO 2942
Proof of integrity and quality (Bubble point test) ISO 3723
Verification of the end cap stress ISO 2941
Collapse / burst pressure verification
