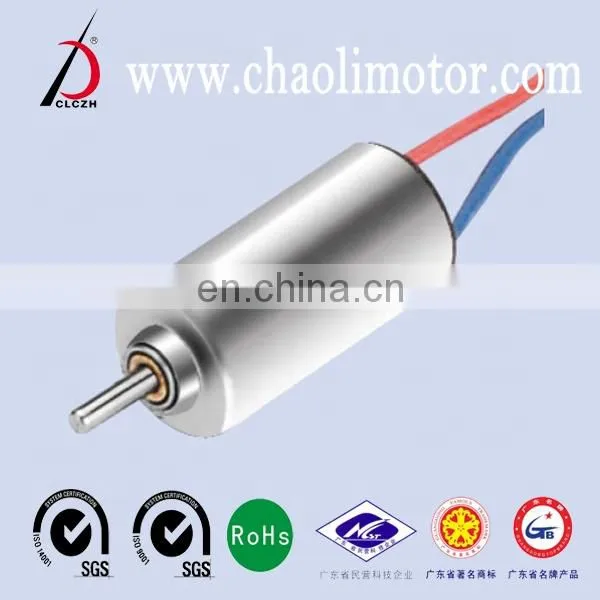

4mm Diameter Micro Coreless Motor Cl-0408
US$ 0.53 - 0.53
MOQ: 10000 Units
Key Specifications
Get Latest Price
Brand Name:
chaoli
Place of Origin:
Guangdong, China
Model Number:
cl-0408
Payment & Shipping
Payment Methods:
Port of Shipment:
ShanTou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CL-FK130 dc Motor,rc Boat,slot CarUS$ 0.61 - 0.61MOQ: 10000 Units -
480 Motor With Long Shaft And High Torque For Airsoft From ChaoliUS$ 16.5 - 16.8MOQ: 500 Units
-
22mm Inner Rotor Micro BLDC Motor 2238 For Binding Machine And Electric Roller ShutterUS$ 0.1 - 20MOQ: 500 Units
-
10MM Plastic Gearbox Gear Motor M10 For Mini Smart Lock And Transmission GearUS$ 1.04 - 1.14MOQ: 1000 Units
-
24mm Micro DC Brushless Motor 2419 For Coin Counting Machine And Money Handling MachineUS$ 0.1 - 20MOQ: 500 Units
Brand Name
chaoli
Place of Origin
Guangdong, China
Model Number
cl-0408
Product Description
2.6 V CL-0408 coreless dc motor
Application: Precision Instrument, Vibrating toothbrush, Massager, Vibration, Toys Vibrator, Sex Toys, Massage Rod, Massager Device, Sex Toys, Massage Rod, Massager Device.

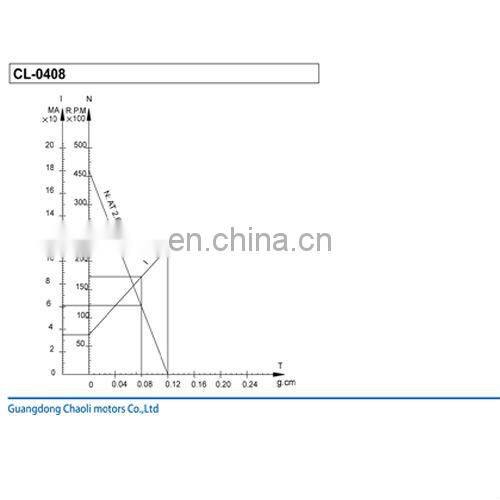

| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | mA | r/min | mA | g.cm | mN.m | W | mA | g.cm | mN.m | |||
| CL-0408 | 1.5-3.0 | 2.6 | 42000 | 35 | 17500 | 60 | 0.08 | 0.008 | 0.15 | 113 | 0.12 | 0.012 |
Company Information
Certification
CL-0408 coreless dc motor CL-0408 coreless 2.6v dc motor brushed CL-0408 coreless dc motor
dc motor coreless dc motor micro dc motor
