10mm 1020 flat vibrator motor, coin motor for cellphone,vibrating massager and intelligent RC model-chaoli

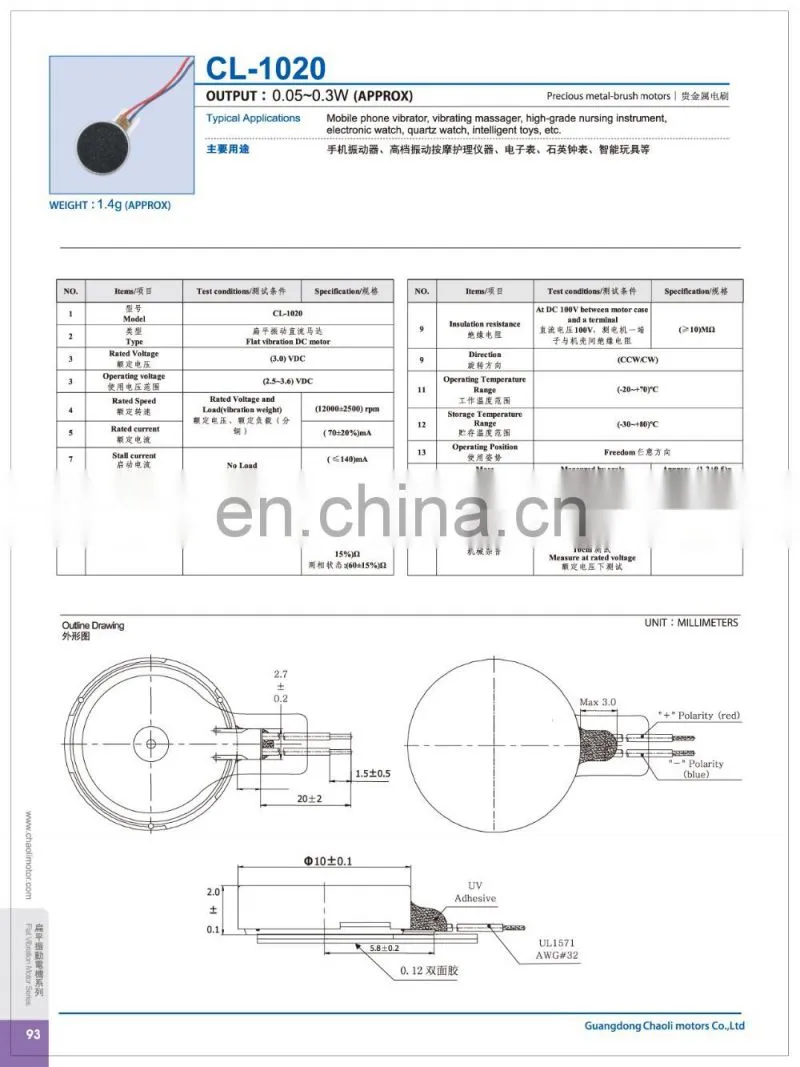

  MOTOR SIZE: Diameter 10mm,height 2mm

Special features/structure:

Motor type: Flat vibration DC motor

Motor housing (D*F*L): Φ10*2.00mm

Housing material: SECD-O

Shaft (diameter): 0.8mm SUS304 steel (nickel coating)

Way of commutation: precious metal-brush

Structure: eccentric wheel vibrating type

Magnet type: Nd-Fe-B

Rotation: CW/CCW and reversible

Weight: 1.4g(approximate)

Options:

Wire diameter and turn number

Key parameters/performance

Rated voltage: 3.0V DC

Terminal resistance:

1)Single phase state:(30 ±10%)Ω

2)Dual phase state:(60 ±15%)Ω

Mechanical noise:≤50dBA

Rated load:

Speed: 12000+/-2500 rpm

Current: 70+/-20% mA

At stall:

Current: 140mA (maximum)

Starting voltage: 2.3V DC (maximum)

This product is widely used in: Mobile phone vibrator, vibrating massager, high-grade nursing instrument, electronic watch, quartz watch, intelligent models.

Provide high quality, Bring honorable value.

2.Our products

Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.

Our advantages:

.Specialized manufacture

. Complete variety of product

.Volume production ability

.Reasonable pricing with high quality

.Short leading time, customized service

Please send us inquiries table including specifications

for the performance and structure requirements .
