Wide Speed Regulating Range Mini Power Generator 12v CL-FFN20PA for Various Kinds of Household Appliances

Wide Speed Regulating Range Mini Power Generator 12v CL-FFN20PA for Various Kinds of Household Appliances photo-1
Wide Speed Regulating Range Mini Power Generator 12v CL-FFN20PA for Various Kinds of Household Appliances photo-2
Wide Speed Regulating Range Mini Power Generator 12v CL-FFN20PA for Various Kinds of Household Appliances photo-3
Wide Speed Regulating Range Mini Power Generator 12v CL-FFN20PA for Various Kinds of Household Appliances photo-4
Wide Speed Regulating Range Mini Power Generator 12v CL-FFN20PA for Various Kinds of Household Appliances photo-5
Wide Speed Regulating Range Mini Power Generator 12v CL-FFN20PA for Various Kinds of Household Appliances photo-6
US$ 0.45 - 0.55 MOQ: 500 Units
Key Specifications
Get Latest Price
Brand Name:
chaoli
Place of Origin:
Guangdong, China
Model Number:
CL-FFN20PA
Payment & Shipping
Payment Methods:
Port of Shipment:
shantou guangdong china
Delivery Detail:
Delivery time depends on order quantity.
Brand Name chaoli
Place of Origin Guangdong, China
Model Number CL-FFN20PA



Product Description

 1.This product

  • Below are the specifications and structures of the product, for more information, please feel free to contact us.
  • Furthermore, we provide customizable service of micro dc motor/generator, including consulting, design and manufacture services, all the products are made to your order.

wide speed regulating range mini power generator 12v CL-FFN20PA for various kinds of household appliances

 wide speed regulating range mini power generator 12v CL-FFN20PA for various kinds of household appliances

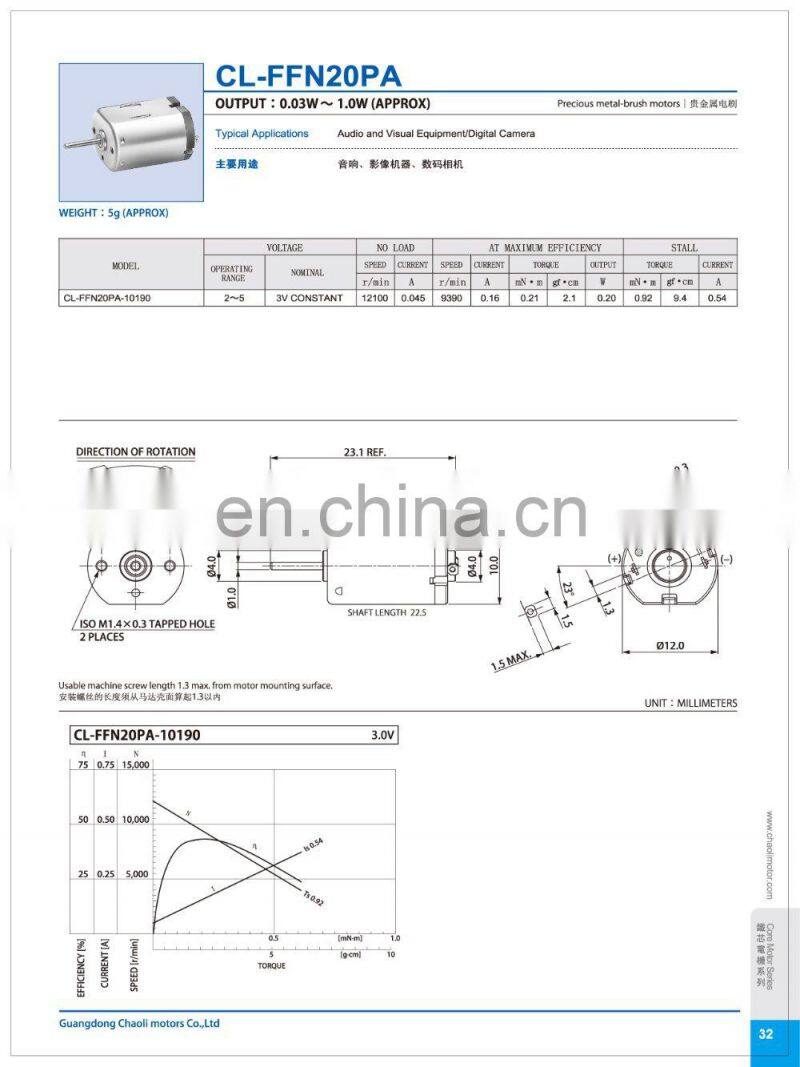

Special features/structure:
Motor type: PMDC brushed motor
Motor housing (D*F*L): Φ12*10.0*15.0mm
Housing material: SECD-O
Shaft (diameter): 1.0mm carbon steel (nickel coating)
Way of commutation: precious metal-brush
Structure: 2-pole stator and 3 slot
Magnet type: strong magnets/NdFeB
Rotation: CW/CCW and reversible
Weight: 5.0g (approximate)
Options:
Length and shape for the extended shaft
EMI/EMC suppression

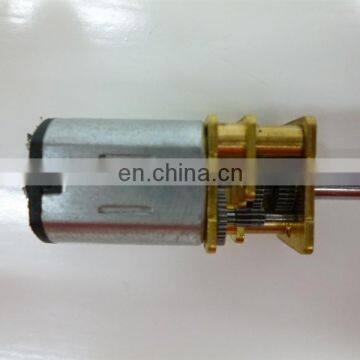

Gear, eccentric wheel or reducer increased
Magnet type
Wire diameter and turn number

Key parameters/performance
Rated voltage: 3.0V DC
At no load:
Speed: 12100rpm
Current: 0.045A
At maximum efficiency:
Speed: 9390rpm
Current: 0.16A
Torque: 2.1gf.cm
Output: 0.20W
At stall:
Current: 0.54A (maximum)
Torque: 9.4gf.cm

This product is widely used in: medical equipment, industrial equipment, navigation models, electrical tool and household appliances.

Provide high quality, Bring honorable value.





2.Our products

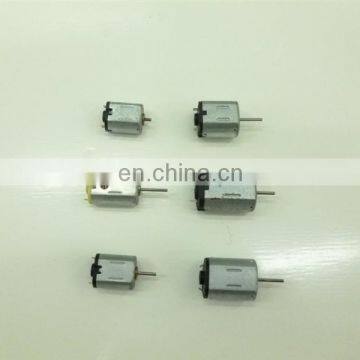

Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.



wide speed regulating range mini power generator 12v CL-FFN20PA for various kinds of household appliances

wide speed regulating range mini power generator 12v CL-FFN20PA for various kinds of household appliances







Our advantages:

.Specialized manufacture

. Complete variety of product

.Volume production ability

.Reasonable pricing with high quality

.Short leading time, customized service





Please send us inquiries table including specifications



for the performance and structure requirements .





Company Information





 1.Company Profile

Beautiful Environment,Harmonious surrounding,

Welcome to visit our company.

wide speed regulating range mini power generator 12v CL-FFN20PA for various kinds of household appliances

.Outside view of our factory







wide speed regulating range mini power generator 12v CL-FFN20PA for various kinds of household appliances
. Our production line





wide speed regulating range mini power generator 12v CL-FFN20PA for various kinds of household appliances



.Our offices









wide speed regulating range mini power generator 12v CL-FFN20PA for various kinds of household appliances

.Our  staffs















 wide speed regulating range mini power generator 12v CL-FFN20PA for various kinds of household appliances

.Our  showroom







2.  R&D/QA/production/Trading



Market-oriented,Technology focus,Strict Quality Control.

wide speed regulating range mini power generator 12v CL-FFN20PA for various kinds of household appliances

. Our technology





wide speed regulating range mini power generator 12v CL-FFN20PA for various kinds of household appliances

. Our  Quality assurance





wide speed regulating range mini power generator 12v CL-FFN20PA for various kinds of household appliances

wide speed regulating range mini power generator 12v CL-FFN20PA for various kinds of household appliances

.  Our production





wide speed regulating range mini power generator 12v CL-FFN20PA for various kinds of household appliances

. During the exhibition



3.   Qualification and Honor



1) Chaoli motor co.,ltd. Was qualified as Private Science and Technology Enterprise Of Guangdong Province in 2012, National High-Tech Enterprise in 2013.



2) Our company also passed SGS ISO14001:2004EMS and SGS ISO9001:2008QMS re-audit in 2015.



3) Our company possesses over 20 patent licensing.



4) “CLCZH” Trademark is rated as famous brand of Guangdong province.



5) “ CLCZH” micro motors are rated as famous-brand products of Guangdong province, also measure up the RoHS and REACH(SVHC) standard of EU, which gain us vast reputation in the industry.



wide speed regulating range mini power generator 12v CL-FFN20PA for various kinds of household appliances







Our company has a great vision and hard work spirit, with a modern management system and a manager team composed of Enterprise Management, Marketing, R&D professionals, we are dedicated to produce high quality products and consistently satisfy our clients’ needs.



4.  Contact us

.Contacts:Henry Cai



.Telephone:86 754 86381288



.FAX:86 754 86381168



.TradeManager: chaolimotor



.SKYPE: HenryCaizhangjin



.Address:Laimei Industrial Park, Shantou 515800, Guangdong, China



.Zip Code:515800





.Website:

http://chaolimotor.en.china.cn
