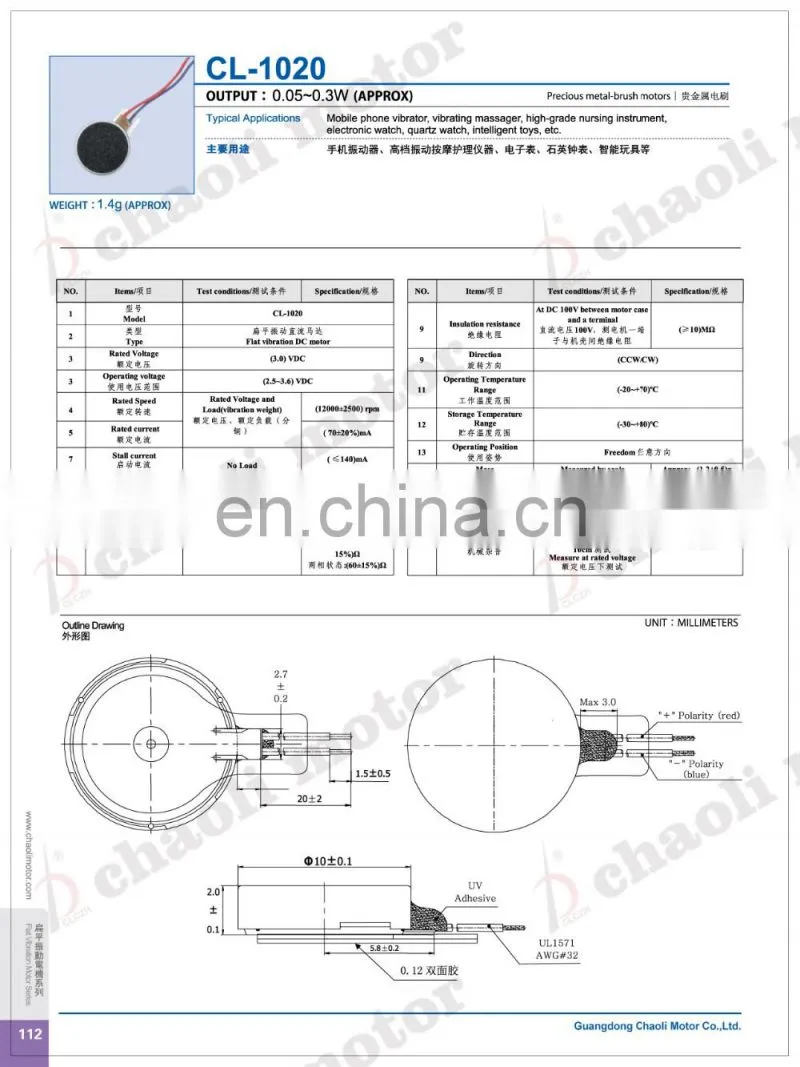

1.CL-1020 flat vibrator motor
Special features/structure:
Motor type: Flat vibration DC motor
Motor housing (D*F*L): Φ10*2.00mm
Housing material: SECD-O
Shaft (diameter): 0.8mm SUS304 steel (nickel coating)
Way of commutation: precious metal-brush
Structure: eccentric wheel vibrating type
Magnet type: Nd-Fe-B
Rotation: CW/CCW and reversible
Weight: 1.4g(approximate)
Options:
Wire diameter and turn number
Key parameters/performance
Rated voltage: 3.0V DC
Terminal resistance:
1)Single phase state:(30 ±10%)Ω
2)Dual phase state:(60 ±15%)Ω
Mechanical noise:≤50dBA
Rated load:
Speed: 12000+/-2500 rpm
Current: 70+/-20% mA
At stall:
Current: 140mA (maximum)
Starting voltage: 2.3V DC (maximum)
This product is widely used in: Mobile phone vibrator, vibrating massager, high-grade nursing instrument, electronic watch, quartz watch, intelligent models.
Provide high quality, Bring honorable value.
2.Our products
Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.
.Specialized manufacture
. Complete variety of product
.Volume production ability
.Reasonable pricing with high quality
.Short leading time, customized service
Please send us inquiries table including specifications for the performance and structure requirements .
