36*40mm High Quality High Torque Brushless dc Motor 12v 24v BL3640
US$ 6.1 - 9
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
Tronsun Motor
Place of Origin:
Guangdong, China
Model Number:
BL3640
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
36*30mm High Torque 12 Volt dc Brushless Motor 24v BL3630US$ 5.7 - 10MOQ: 100 Pieces -
28*47mm High Quality High Torque 12v 24 Volt Brushless dc Motor BL2847US$ 5 - 9MOQ: 100 Pieces
-
28*38mm Low Noise 12v 24v dc Brushless Motor BL2838US$ 5.5 - 8MOQ: 100 Pieces
-
24*18mm High Quality 6v 12v Brushless dc Motor BL2418US$ 2.8 - 5MOQ: 500 Pieces
-
24mm High Quality Long Lifetime 6v 12v Brushless dc Motor 24v BL2430US$ 4 - 8MOQ: 100 Pieces
Brand Name
Tronsun Motor
Place of Origin
Guangdong, China
Model Number
BL3640
Type
Micro Motor
Certification
CE, ROHS
Torque
100-300g.cm
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Totally Enclosed
Continuous Current(A)
0.05-1.5A
Speed(RPM)
3000-10000 RPM
Commutation
Brushless
36*40mm High Quality high torque brushless dc motor 12v 24v BL3640
Product Description
Model No.: BL3640
Main Features:
OUTPUT: approx 2.0-40W
Brushless DC Motor
Typical Applications:
Medical Instruments
Precision Instruments
Household Appliance
Business Equipment

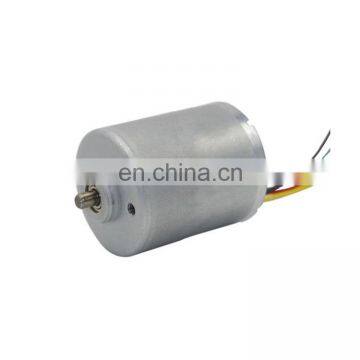

Product showcase:

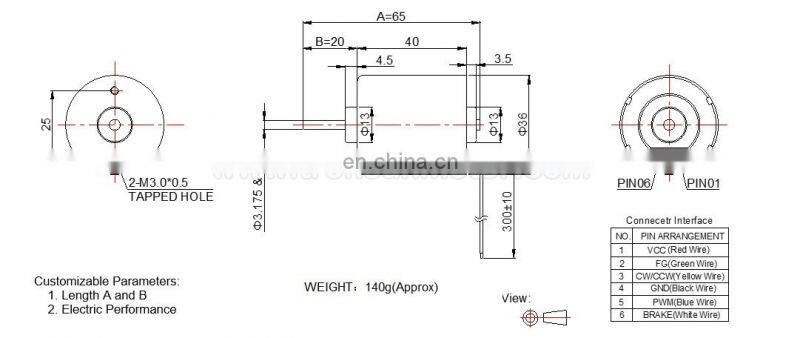

2D drawing:

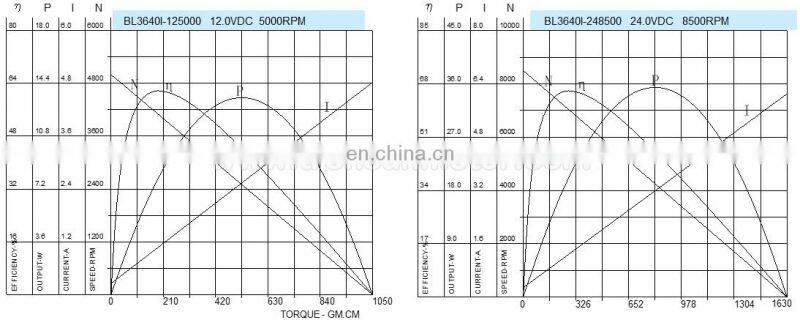

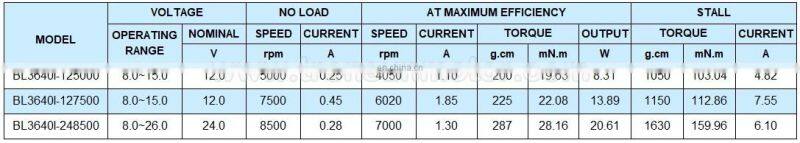

Motor Performance:
Related Products
FAQ
- Q: Can I get some samples first ? How soon can I get the samples ?
- A: Yes,we can make samples, but normally sample is not for free (sample fee is charged varying from 3usd/pc -40 usd/pc). And the sample making time depends on different types, for some small motor types( 3-10days is possible), while some gearbox motor should be about 25days more or less. Additional, there will be about extra 2-3 days for the delivery time, and the shipping cost is not for free too.
- Q: Are these motor's parameter from the above list can be modified ?
- A: Yes,motor's parameter can be customized. We can modify the motor's working voltage,rated speed, torque etc, and motor's shaft dimension can be modified too. We are pleased to make those modification, the more details you provide, the more fluent our cooperation will be.
- Q: What parameter should I provide before the sample making ?
- A: Good question. Normally we need to know the Nominal Voltage, Free-load Speed, On-load Torque, On-load Speed, Rotation Direction, Shaft Diameter and Length. If there is other special requirment, please let us know in advance,such as working current limits,EMC limits,noise limits,expected lifetime and shaft process(D-shape, multy-knurls,mounting holes etc).
- Q: Sometimes I dont know the exact required parameter, how should I choose a suitable model ?
- A: We can make some suggestions as long as you provide your specific requirement. We need to know what kind of product will be this model used for ? And what does the working condition look like (duty cycles and load status)? And how long is the motor's expected lifetime ? etc. Then we can a make full assessment according to that.
- Q: Is there any Testing Report or Motor Specification when I get the sample ?
- A: Yes, we can provide the Testing Report and Specification after the sample is ready. We will send a PDF file to you. By the way, Motor Specification will be availabe 3-5days later after sample is ready.
