28mm High Torque Planetary Gear Motor 12v 24v 28PA395
US$ 6.5 - 13
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
Tronsun Motor
Place of Origin:
Guangdong, China
Model Number:
28PA395
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
22mm Low Cost High Precision 6v 12v 24v Planetary Geared dc Motor 22PA180US$ 4.5 - 7MOQ: 100 Pieces -
22mm High Torque Machining Ring Gear 6v 12 Volt dc Planetary Gear Motor 22PA180US$ 7.5 - 12MOQ: 100 Pieces
-
16mm High Torque 6v 9v 12v Metal Planetary Gear Motor 16PA050US$ 4.5 - 10MOQ: 100 Pieces
-
12mm Plastic Planetary dc Geared Motor 3v 6v 12v 12PAN20US$ 0.95 - 4MOQ: 100 Pieces
-
10mm 3v Plastic Planetary dc Gear Motor 50-150rpm 10PA1012US$ 0.85 - 3MOQ: 100 Pieces
Brand Name
Tronsun Motor
Place of Origin
Guangdong, China
Model Number
28PA395
Type
Micro Motor
Certification
CE, ROHS
Torque
5-20kg.cm
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Totally Enclosed
Continuous Current(A)
0.05-0.2A
Speed(RPM)
3-5000 RPM
Commutation
Brush
28mm high torque planetary gear motor 12v 24v 28PA395
Product Description
Model No.: 28PA395
Main Features:
OUTPUT: approx 2-20W
Planetary Gear Motor
Encoder Available
Typical Applications:
Electric Curtains
Smart Home Appliance
Precision Instruments
Smart Robot

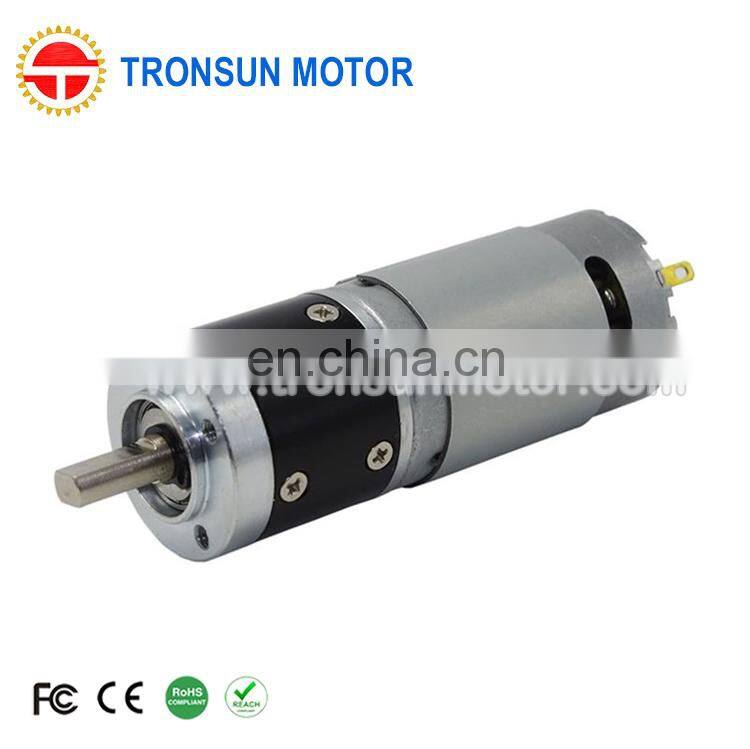

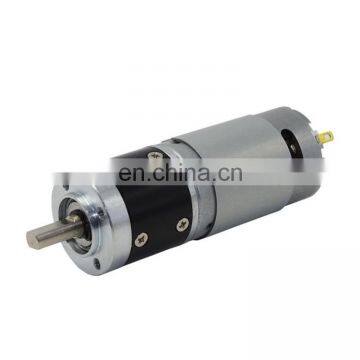

Product showcase:

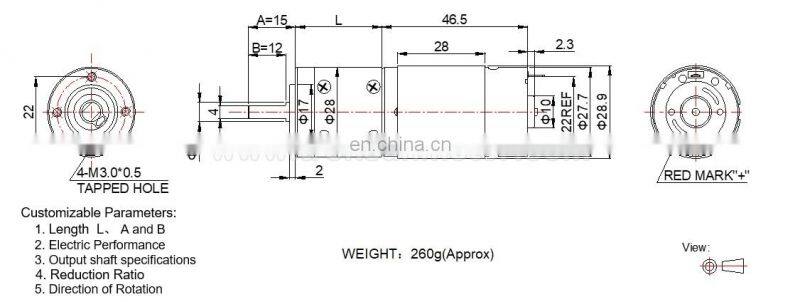

2D drawing:

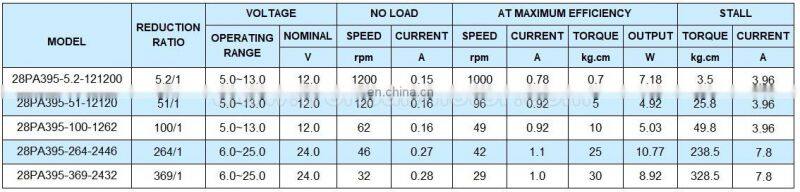

Motor Performance:
Related Products
FAQ
- Q: Can I get some samples first ? How soon can I get the samples ?
- A: Yes,we can make samples, but normally sample is not for free (sample fee is charged varying from 3usd/pc -40 usd/pc). And the sample making time depends on different types, for some small motor types( 3-10days is possible), while some gearbox motor should be about 25days more or less. Additional, there will be about extra 2-3 days for the delivery time, and the shipping cost is not for free too.
- Q: Are these motor's parameter from the above list can be modified ?
- A: Yes,motor's parameter can be customized. We can modify the motor's working voltage,rated speed, torque etc, and motor's shaft dimension can be modified too. We are pleased to make those modification, the more details you provide, the more fluent our cooperation will be.
- Q: What parameter should I provide before the sample making ?
- A: Good question. Normally we need to know the Nominal Voltage, Free-load Speed, On-load Torque, On-load Speed, Rotation Direction, Shaft Diameter and Length. If there is other special requirment, please let us know in advance,such as working current limits,EMC limits,noise limits,expected lifetime and shaft process(D-shape, multy-knurls,mounting holes etc).
- Q: Sometimes I dont know the exact required parameter, how should I choose a suitable model ?
- A: We can make some suggestions as long as you provide your specific requirement. We need to know what kind of product will be this model used for ? And what does the working condition look like (duty cycles and load status)? And how long is the motor's expected lifetime ? etc. Then we can a make full assessment according to that.
- Q: Is there any Testing Report or Motor Specification when I get the sample ?
- A: Yes, we can provide the Testing Report and Specification after the sample is ready. We will send a PDF file to you. By the way, Motor Specification will be availabe 3-5days later after sample is ready.
