High Torque 28mm 12v 24v Brushless Planetary Gear Motor With Different Speed for Smart Robot
US$ 11 - 25
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
Trounsun
Place of Origin:
Guangdong, China
Model Number:
28PA2847
Payment & Shipping
Payment Methods:
Port of Shipment:
SZ
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality 12mm 3v 6v 12v N20 dc Gear Motor for Smart Electronic LockUS$ 1.9 - 2.85MOQ: 1000 Pieces -
High Quality Right Angle 6v 85rpm dc Worm Gear Motor 12v 24v 5rpm 46GF370US$ 2.5 - 5MOQ: 100 Pieces
-
Low Noise 38mm 12v 160rpm dc Brushless Gear Motor 24v 20rpm 38GF2418US$ 10 - 20MOQ: 100 Pieces
-
Long Lifetime High Torque 12v 18rpm Flat Brushless dc Gear Motor 24v 69rpm for Industry 38GF3630US$ 13 - 25MOQ: 100 Pieces
-
High Torque 24v 105rpm dc Gear Motor With Brush dc Motor 12v 240rpm for Industry 38GF3540US$ 3.8 - 6MOQ: 100 Pieces
Brand Name
Trounsun
Place of Origin
Guangdong, China
Model Number
28PA2847
Type
Gear Motor
Certification
CE, ROHS
Torque
5.0-30.0kg.cm
Usage
Car, Electric Bicycle, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Totally Enclosed
Continuous Current(A)
1.1A
Speed(RPM)
30-120rpm
Commutation
Brushless
High Torque 28mm 12v 24v brushless planetary gear motor with different speed for smart robot
Product Description
Model No.: 28PA2847

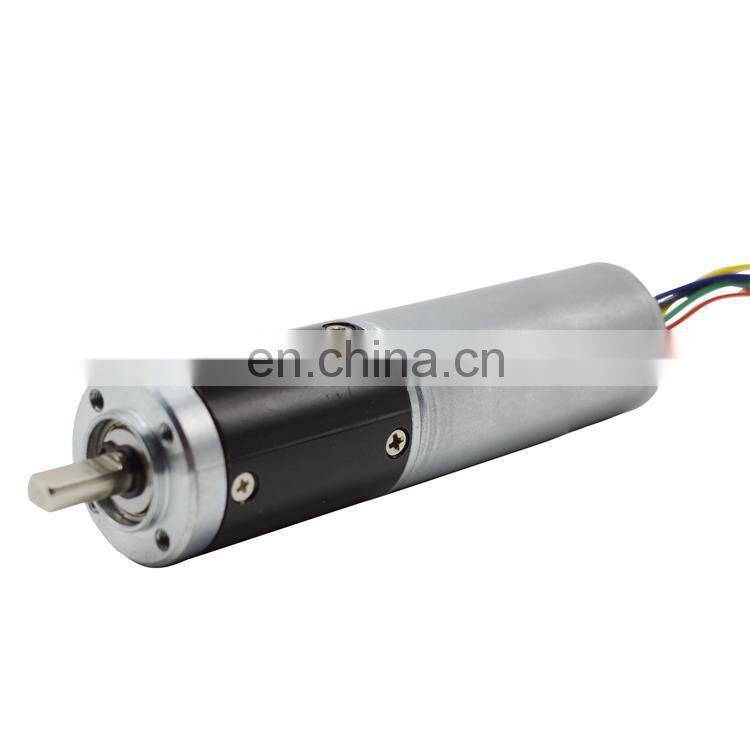

Product showcase:

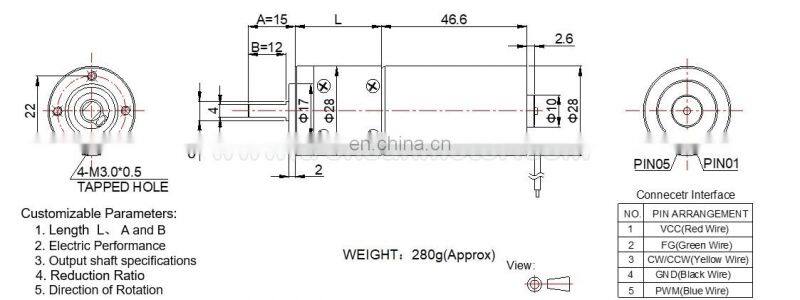

2D drawing:
Motor Performance ( Customization available ):
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque | ||||||||
| kg.cm | ||||||||||||
| 27.5 | 1 | 3.7/1 | 5.2/1 | 5.0 | 10.0 | |||||||
| 35.5 | 2 | 14/1 | 19/1 | 27/1 | 8.0 | 20.0 | ||||||
| 43.5 | 3 | 51/1 | 71/1 | 100/1 | 139/1 | 15.0 | 30.0 | |||||
| 51.5 | 4 | 189/1 | 264/1 | 369/1 | 515/1 | 721/1 | 20.0 | 40.0 | ||||
|
MODEL |
REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | rpm | A | rpm | A | kg.cm | W | kg.cm | A | ||||
| 28PA2847-51-12120 | 51/1 | 8.0~15.0 | 12.0 | 120 | 0.25 | 94 | 0.91 | 5 | 4.82 | 24.23 | 3.35 | |
| 28PA2847-189-1230 | 189/1 | 8.0~15.0 | 12.0 | 30 | 0.25 | 16.2 | 0.8 | 16 | 2.66 | 83.6 | 3.35 | |
| 28PA2847-100-2435 | 100/1 | 8.0~26.0 | 24.0 | 120 | 0.2 | 101 | 1.2 | 14 | 14.50 | 88.5 | 6.5 | |
| 28PA2847-264-2445 | 264/1 | 8.0~26.0 | 24.0 | 45 | 0.21 | 39 | 1.1 | 30 | 12.00 | 217.8 | 6.5 | |
Related Product
FAQ
- Q: Can I get some samples first ? How soon can I get the samples ?
- A: Yes,we can make samples, but normally sample is not for free (sample fee is charged varying from 3usd/pc -40 usd/pc). And the sample making time depends on different types, for some small motor types( 3-10days is possible), while some gearbox motor should be about 25days more or less. Additional, there will be about extra 2-3 days for the delivery time, and the shipping cost is not for free too.
- Q: Are these motor's parameter from the above list can be modified ?
- A: Yes,motor's parameter can be customized. We can modify the motor's working voltage,rated speed, torque etc, and motor's shaft dimension can be modified too. We are pleased to make those modification, the more details you provide, the more fluent our cooperation will be.
- Q: What parameter should I provide before the sample making ?
- A: Good question. Normally we need to know the Nominal Voltage, Free-load Speed, On-load Torque, On-load Speed, Rotation Direction, Shaft Diameter and Length. If there is other special requirment, please let us know in advance,such as working current limits,EMC limits,noise limits,expected lifetime and shaft process(D-shape, multy-knurls,mounting holes etc).
- Q: Sometimes I dont know the exact required parameter, how should I choose a suitable model ?
- A: We can make some suggestions as long as you provide your specific requirement. We need to know what kind of product will be this model used for ? And what does the working condition look like (duty cycles and load status)? And how long is the motor's expected lifetime ? etc. Then we can a make full assessment according to that.
- Q: Is there any Testing Report or Motor Specification when I get the sample ?
- A: Yes, we can provide the Testing Report and Specification after the sample is ready. We will send a PDF file to you. By the way, Motor Specification will be availabe 3-5days later after sample is ready.
