High Voltage Low Voltage Switch Cabinet Circuit Breaker Test Bench
- Shenzhen Shanghai. Guangdong
- T/T Credit Card
You May Like
-
High Performance High Voltage Switch AC Circuit Breaker Characteristic Tester
-
Large Current Primary Current Injection Test Set 2000a Primary Current Injection Test Machine 500a Primary Injection Tester
-
China Manufacturer 2000A Heat Run High Stability Primary Current Injection Testing Equipment for Circuit Breaker
-
Primary Current Injection Test Kit Primary Current Injection Test Set 5000a
-
DC 100A 200A High Precision Portable Circuit Contact Resistance Test Instrument for Switch
-
High Current Primary Current Injection Test Device
Product Details
| Brand Name | Sansion | Place of Origin | Hubei, China | |
| Model Number | SXGK | Weight | 40kg | |
| Operating Temperature | advisory | Supply Voltage | AC 110V / 115V / 120V / 127V / 220V / 230V / 240V | |
| Dimensions | 2 | Display Type | Analog and Digital | |
| Accuracy Class | A | Measuring Range | 1 |
Product Description

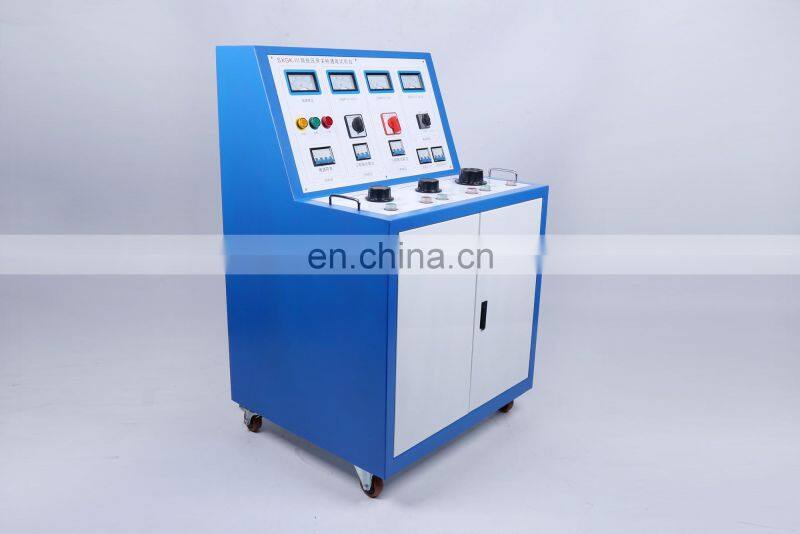

High Voltage Low Voltage Switch cabinet circuit breaker test bench
General Information:
SXGK Series HV/LV Switch Cabinet Test Bench is mainly applied for ex-work energized testing for high voltage and low voltage cabinet manufacturers. It can also be used for contact resistance measurement, insulation resistance measurement, AC withstand voltage test of high and low voltage switches.The test bench could provide various AC/DC power source, in order to detect switch cabinet.
Features:
- Reading directly: Digital meters to display current, voltage, power factor test value.
- Measuring accurately: High precision, test value is accurate.
- Full protections: Each circuit is with air switch protection.
- Portable: Small size, light weight, easy to move.
- Specifications:
- Input: 3 phase 4 line AC 380V
- Output voltage and current:
- 3 phase AC 0-10A output (<100V, adjustable) one group
- 3 phase AC 100V output (fixed value) one group
- AC operating voltage output is AC 0-400V, 220V the current less than 10A one group
- Single phase 24V,36V,110V,220V DC output (fixed value)
- DC operating voltage output DC 0-260V one group
- Dc closing power output dc 0-250v,(300A,short circuit work) one group
- Single phase AC 220V output (fixed value, plug type) one group
- 3 phase 4 line AC 380V output (fixed value, wiring port) one group.
Test project requirements:
- Contact resistance measurement 0-100A/200A, measuring range 0-2mΩ/20mΩ
- Insulation resistance measurement 500-2500V
- Voltage withstand test 0.4kV/10kV and 35kV
- Short-term current tolerance test (0-2000A)
- Various relays and contactors test
- Relay opening and closing time and speed characteristic test
- HV/LV switch on and off test
Wuhan Sansion Power Equipment Manufacturing Co., Ltd. is a modern company focusing on design and manufacturing of test and measurement instruments. Our company covers 5,000 square meters with 120 employees.

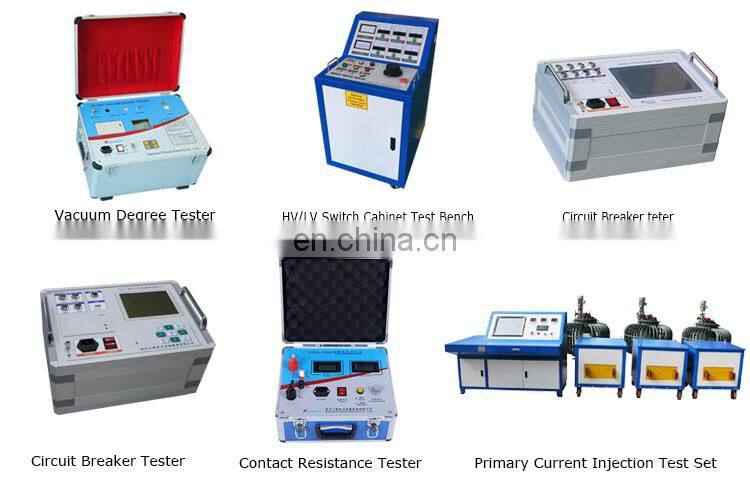

Sansion has more than 20 years’ experience of producing electrical test sets and solutions for transformers, circuit breakers, CT/PT, relay protection, cable and electric power systems to test and calibration equipment.
Sansion has obtained ISO 9001 quality certificate and all of our products are in conformity with the international standards.
With superior quality, reasonable price and perfect after-sales service, we are aiming to expand the markets in all countries of the world. We look forward to working with you.
FAQ:
1.Q:Are you Manufacturer of trading company?
A: We are manufacturer of more than 20 years in power testing product.
2..Q:How can I pay?
A:Dear customer, we accept many payment term, such as T/T, Western Union…
3.Q:What is your terms of delivery?
A:We accept EXW,FOB, CFR, CIF, ect. You can choose the one which is the most convenient and cost effective for you.
4.Q:Could you please tell me the Warranty Period of your product? .
A:Warranty period is one year. Engineers available to service the equipment.
5.Q:What should I do if I do not know how to use? A:Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
