General Information:

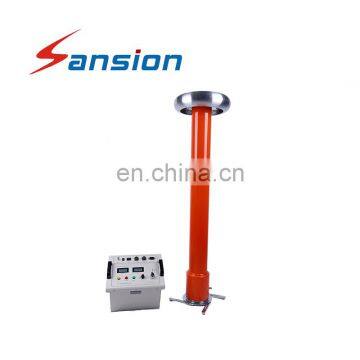

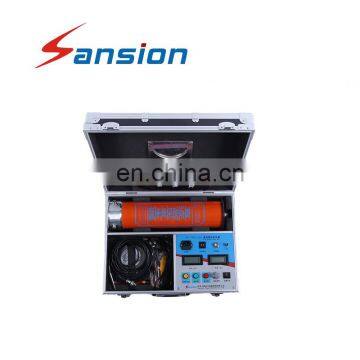

SXZGF series hipots is testing DC high voltage for zinc oxide lighting arrester, magnetic blowing arrester, power cables, generators, transformers, switches and other equipments, which is suitable for electric power branch, power department of factories, scientific research units, railway, chemical industry, power plants.
Features:
ØLight weight, more portable, full function, suitable for wild field testing.
ØWith high frequency voltage-multiplying circuit and PWM pulse width modulation technology.
ØSmall ripple coefficient, high voltage output stability, no noise, more reliable and stable.
ØOver-voltage, over-current, zero start and fault protection function, voltage protection value can be displayed.
ØAdapts digital display, current and voltage can be read clearly.
ØHigh stability of voltage adjusting. Designed with coarse adjust and fine adjust.
Ø75% VDC 1mA function button, convenient for Zinc Oxide arrester test.
Specification:
|
Model Technical |
40/2 |
60/2 |
60/5 |
120/ 2 |
120/ 3 |
120/ 5 |
200/ 2 |
200/ 3 |
200/ 5 |
300/2 |
300/5 |
|
Rated voltage(KV) |
40 |
60 |
60 |
120 |
120 |
120 |
200 |
200 |
200 |
300 |
300 |
|
Rated current(mA) |
2 |
2 |
5 |
2 |
3 |
5 |
2 |
3 |
5 |
2 |
5 |
|
Rated power(W) |
80 |
120 |
300 |
240 |
360 |
600 |
400 |
600 |
1000 |
600 |
1500 |
|
Voltage accuracy Current accuracy |
DRO ± (1.0% of reading ± 0.2KV) DRO ± (1.0% of reading ± 2) |
||||||||||
|
Ripple factor |
≤0.5% |
||||||||||
|
Voltage stability |
Random fluctuations, Supply voltage transformation ratio±10%≤1% |
||||||||||
|
Overload capacity |
No-load voltage can exceed 10% of the rated voltage using ten minutes maximum charging current of 1.5 times the rated current |
||||||||||
|
Power supply |
Single-phase current 220V±10% 50Hz or 60Hz |
||||||||||
|
Working style |
Intermittent use |
||||||||||
|
A continuous period of up to 30 minutes |
|||||||||||
|
|
|||||||||||
|
With a capacitive load capacity |
Test capacity is unlimited |
||||||||||
|
1.5 times the rated current available to charge |
|||||||||||
|
Structural features |
Epoxy fiberglass electrical Insulation times the pressure cylinder r |
||||||||||
|
Air-insulated, no worry of leakage |
|||||||||||
|

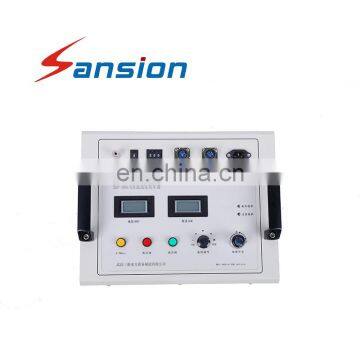

Features of Operation Box |
High Precision 0.75UDC--1mA One-touch buttons (Accuracy≤1.0%) Most suitable for MOA test |
||||||||||
|
Overvoltage protection using DIP settings, at a glance |
|||||||||||
|
Vertical and Horizontal type of international standard chassis, the scene is more convenient |
|||||||||||
Wuhan Sansion Power Equipment Manufacturing Co., Ltd. is a modern company focusing on design and manufacturing of test and measurement instruments. Our company covers 5,000 square meters with 120 employees.
Sansion has more than 20 years’ experience of producing electrical test sets and solutions for transformers, circuit breakers, CT/PT, relay protection, cable and electric power systems to test and calibration equipment.
Sansion has obtained ISO 9001 quality certificate and all of our products are in conformity with the international standards.
With superior quality, reasonable price and perfect after-sales service, we are aiming to expand the markets in all countries of the world. We look forward to working with you.
FAQ:
1.Q:Are you Manufacturer of trading company?
A: We are manufacturer of more than 20 years in power testing product.
2..Q:How can I pay?
A:Dear customer, we accept many payment term, such as T/T, Western Union…
3.Q:What is your terms of delivery?
A:We accept EXW,FOB, CFR, CIF, ect. You can choose the one which is the most convenient and cost effective for you.
4.Q:Could you please tell me the Warranty Period of your product? .
A:Warranty period is one year. Engineers available to service the equipment.
5.Q:What should I do if I do not know how to use? A:Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support..
