Clean Room Air Shower/ Stainless Steel Air Shower/ Air Shower Conductive

Clean Room Air Shower/ Stainless Steel Air Shower/ Air Shower Conductive

Product Description

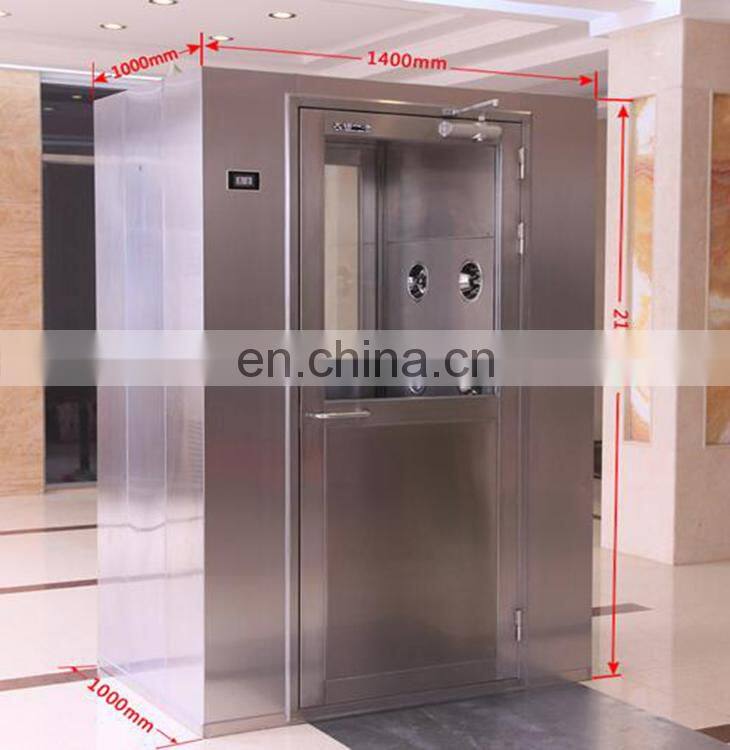

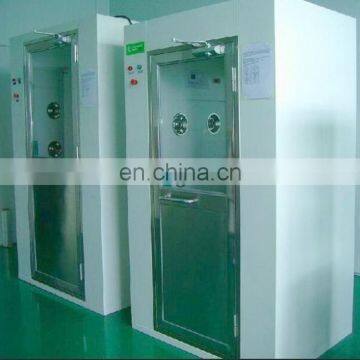

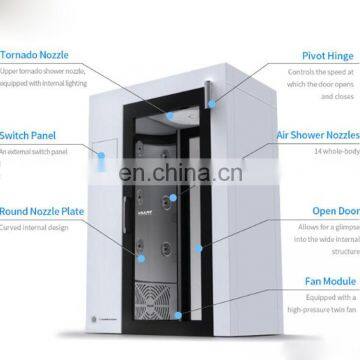

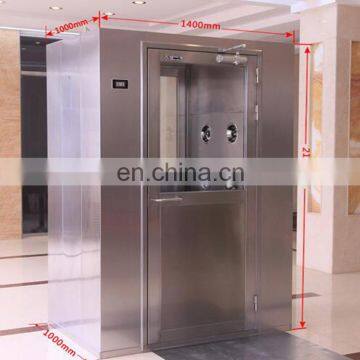

Air shower consists of cabinet, stainless steel door (cold steel), pre-filter, HEPA filter, pan, plenum chamber, nozzle, interlocking control panel, operation panel, sensing equipment, etc.

Cold steel is used for the air shower’s cabinet, and stainless steel is used for the bottom. As to different customer’s requirement, air showers with different materials or sizes can be designed and supplied.



Specification & features:
1) Material: Stainless steel SUS304;
2) Electronic interlock: When A door is open, B door will be locked. A & B doors can’t be open during blowing;
3) In case of emergency happens, emergency off button is equipped according to customers' need. Once press, two doors will be open;
4) Color LCD screen & touch-point switch are used to control the blowing time and lamp time. It shows reminder of HEPA filter replacement when needed;
5) Infrared sensor can have the automatic blowing and stop;
6) Two-side blowing, left and right, stainless steel nozzles. Three-side blowing can be provided if needs;
7) German Dorma door closer is stable. China KFC stores also choose this type as their door closer;
8) 360-degree rotatable nozzles are installed if needs to keep the high efficiency when blowing off particles from personnel;
9) Have electronic interlock air shower patent.

Technical parameters

Please supply us the following information to design your clean room
a. The structure parts:
1. Panel style:
Metal-face polyurethane core board,
Metal-face rockwool core board (widely used),
Metal-face polystyrene core board (without fire proof),
Metal-face honeycomb core board,
Metal-face plastered core board (widely used for ceiling),
Metal-face glass-magnesium core board.
Panel thickness: 50mm or 100mm
Panel height:
2. Door shape, window shape and quantities
3. Ornament material: circle 50 degree, 75 degree, alloy aluminum, silver color or painted color.
4. Layout drawing
5. The house structure: steel structure or ferroconcrete
b. Air conditioner and air fan parts:
1. The technical height (the height between the ceiling and girder’s lower point).
2. Direction and arrangement of air feeding and air sucking.
3. The clean grade request, temperature and humidity request, pressure balance request, wind speed request.
4. Air exhaust request and air exhaust quantity request.
5. Workers quantity and equipments’ heat generating amount.
6. Brand of air conditioner or air fan brand and style request.
7. By water cooling or fan cooling?
c. Equipment parts:
1. Specification and material request of the air shower room.
2. Specification, material and technical request of the pass box.
3. Specification and request of laminar flow.
4. Specification and request of the weighting room.
5. FFU’s specification and request.
d. Electricity parts:
1. Illumination request and the lighting style.
2. Total power.
3. Control style (full auto/manual).
4. Wire hidden style (pretreatment/ hidden in sandwich board).
e. Floor parts:
1. The basic cement (the cement floor’s intension and level degree)
2. Floor request (Static proof request and epoxy color of PVC/ roller/ plate)
f. Lab Equipment:
1. Fume Hood
2. Stainless Steel Cabinet
3. Stainless Steel Table
4. Weight Room

5. Dust Particle Counter
