Mineral Industrial Vibrator Motor Factory Direct Sale

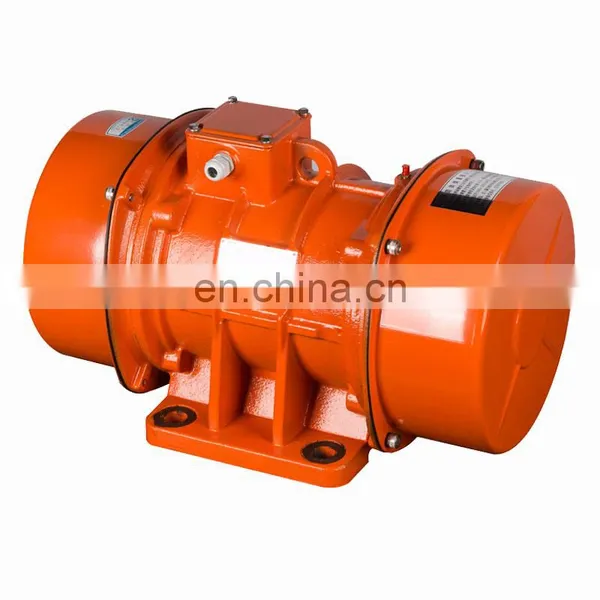

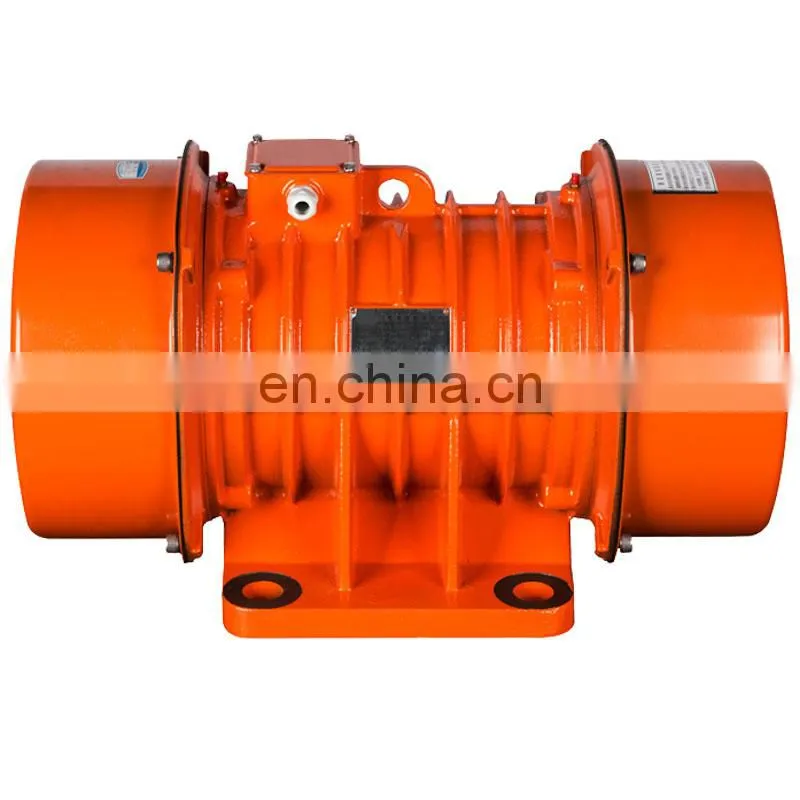

Mineral Industrial Vibrator Motor Factory Direct Sale photo-1

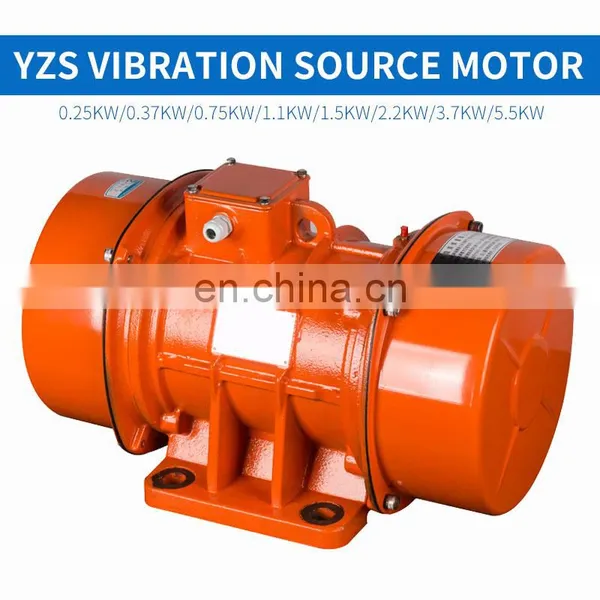

Mineral Industrial Vibrator Motor Factory Direct Sale photo-2

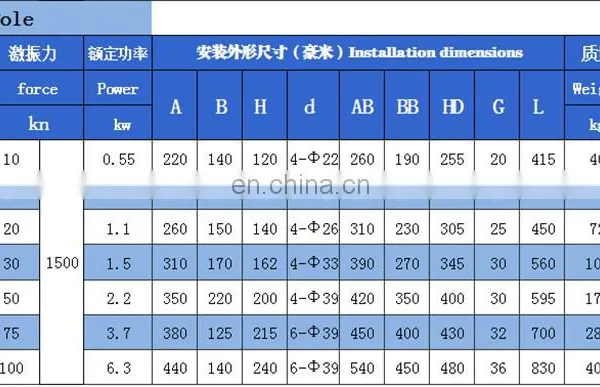

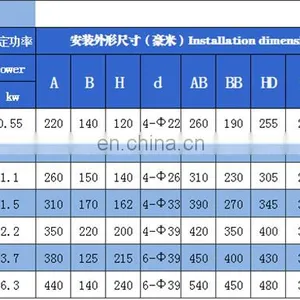

Mineral Industrial Vibrator Motor Factory Direct Sale photo-3
Mineral Industrial Vibrator Motor Factory Direct Sale photo-4
Mineral Industrial Vibrator Motor Factory Direct Sale photo-5
Mineral Industrial Vibrator Motor Factory Direct Sale photo-6
US$ 127 - 3,670 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
putian
Place of Origin:
Guangdong, China
Model Number:
YZS
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name putian
Place of Origin Guangdong, China
Model Number YZS
Product Description
power class
0.75KW,1.1KW,1.5KW,2.2KW,3.7KW,5.5KW,7.5KW,9.5KW,12KW,13KW
excitation force grade
10KN,15KN,20KN,30KN,40KN,50KN,75KN,100KN
lnsulation grade
F
duty of motor
S1
cooling mode
IC410
Shell material
cast iron
Voltage
AC
frequency
50Hz

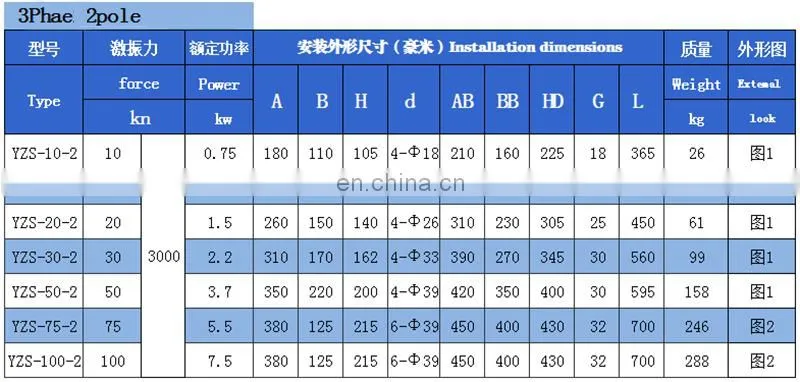

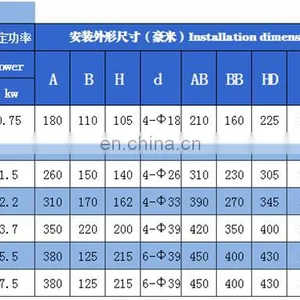

YZS series parameter table

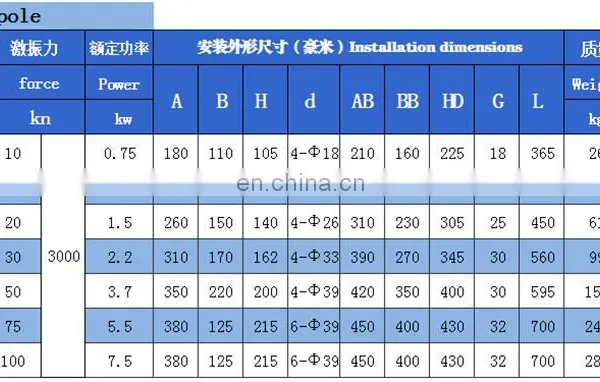

Three-phase (50Hz/380V/220V) (2 poles)
Type
Flrce
KN
Speed/rpm
50Hz
Power
KW
Werght
KG

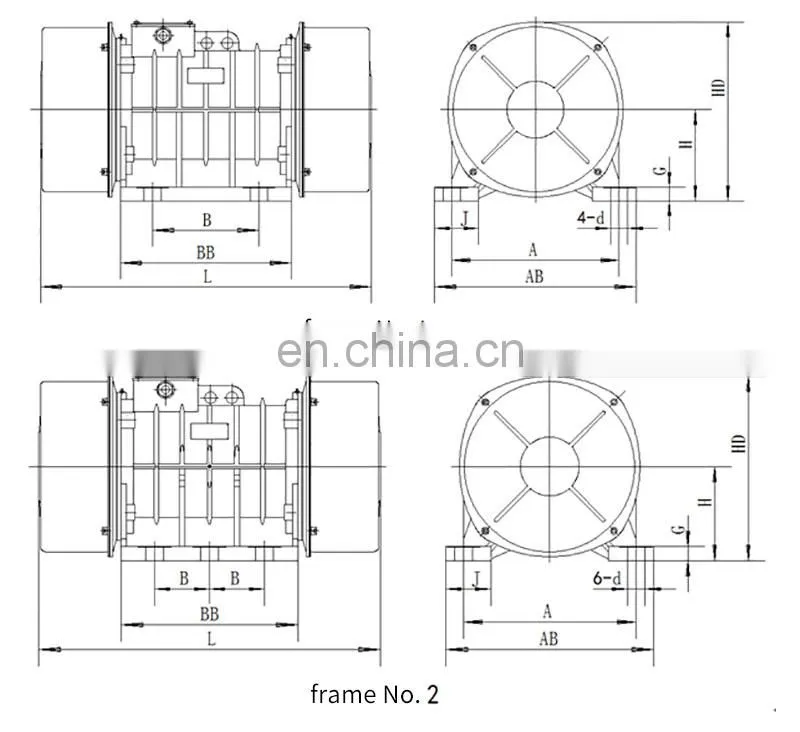

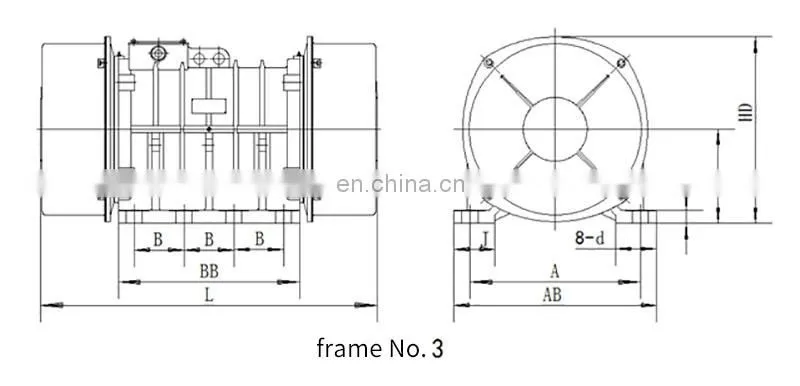

frame No.
YZS-10-2
10




3000
0.75
26
1
YZS-15-2
15
1.1
42
1
YZS-20-2
20
1.5
61
1
YZS-30-2
30
2.2
99
1
YZS-50-2
50
3.7
158
1
YZS-75-2
75
5.5
246
2
YZS-100-2
100
7.5
288
2

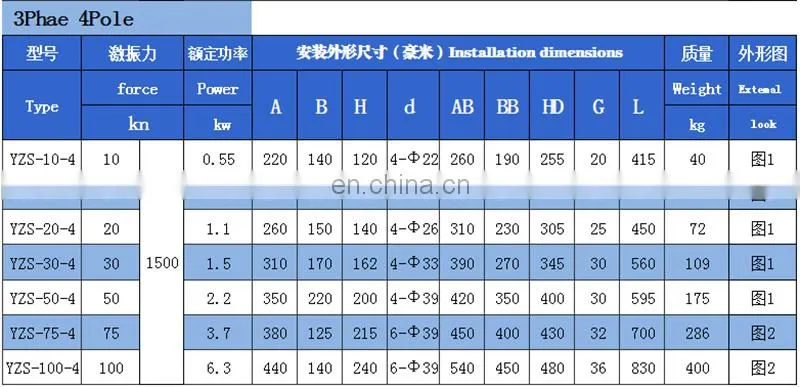

Three-phase (50Hz/380V/220V) (4 poles)
Type
Flrce
KN
Speed/rpm
50Hz
Power
KW
Werght
KG
frame No.
YZS-10-4
10





1500
0.55
40
1
YZS-15-4
15
0.75
67
1
YZS-20-4
20
1.1
72
1
YZS-30-4
30
1.5
109
1
YZS-50-4
50
2.2
175
1
YZS-70-4
70
3.7
286
2
YZS-100-4
100
6.3
400
2

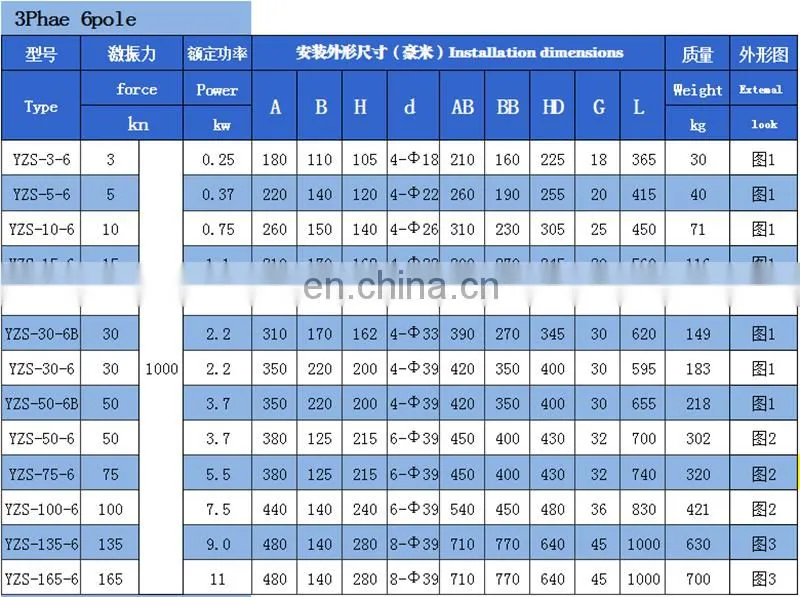

Three-phase (50Hz/380V/220V) (6 poles)
Type
Flrce
KN
Speed/rpm
50Hz
Power
KW
Werght
KG
frame No.
YZS-3-6
3








1000
0.25
30
1
YZS-5-6
5
0.37
40
1
YZS-10-6
10
0.75
71
1
YZS-15-6
15
1.1
116
1
YZS-20-6
20
1.5
122
1
YZS-30-6
30
2.2
149
1
YZS-50-6
50
3.7
183
2
YZS-75-6
75
5.5
218
2
YZS-100-6
100
7.5
302
2
YZS-135-6
135
9.0
320
3
YZS-165-6
165
11
421
3
Products Show
Our Service

After-sale service

Professional pre-sales and after-sales team, timely answer customer's difficult questions, complete pleasant transactions

Team of Engineers

Strong technical R&D team, timely response to customer customization requirements for special vibration motors

Factory inspection

Strict inspection before each motor leaves the factory to ensure the quality of the product and to assure your use.

Our Company

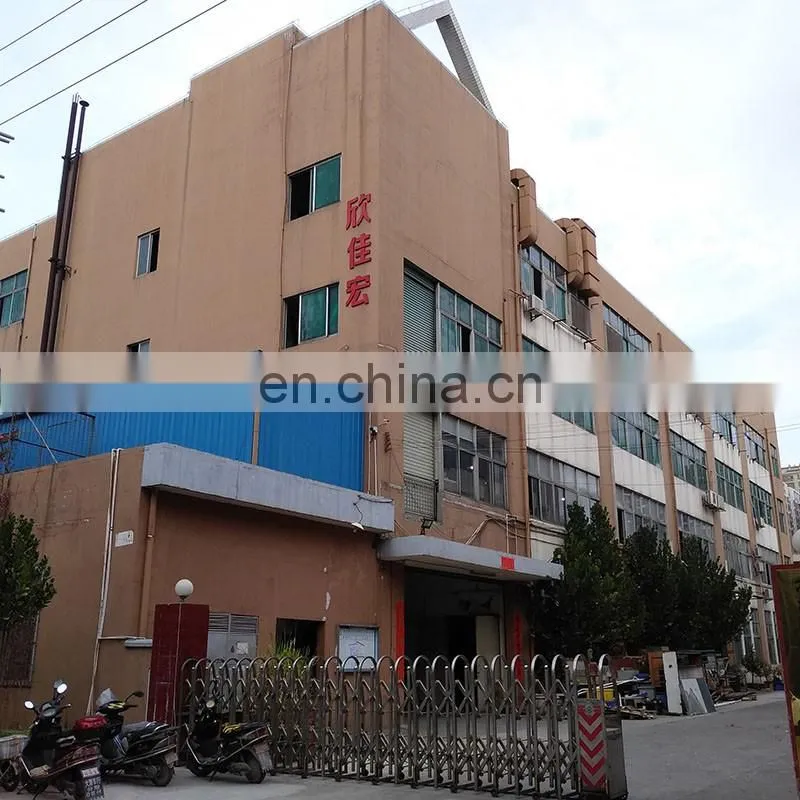

Factory

4-storey large factory building in industrial zone

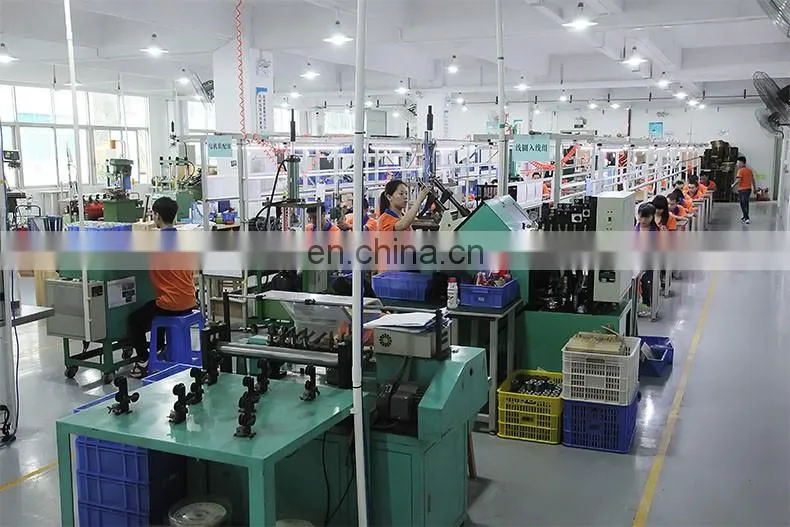

Workshop

High Speed Operation of Pipeline in Some Workshops

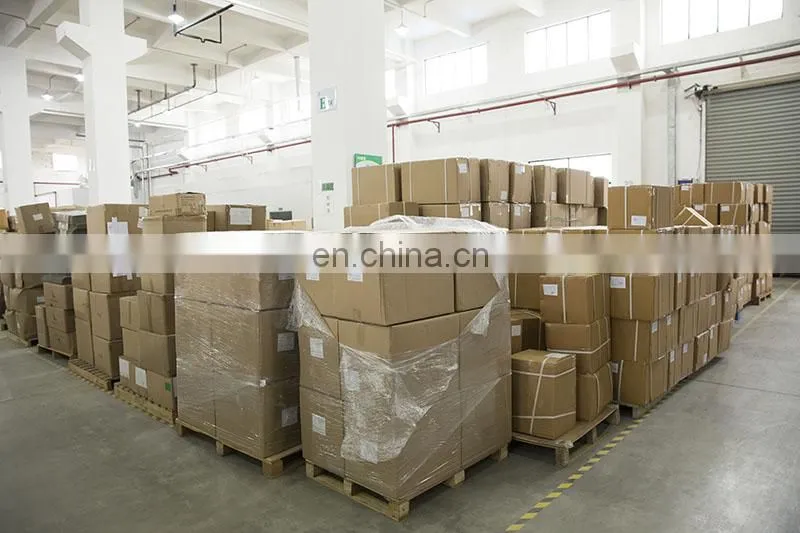

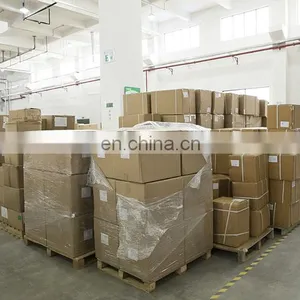

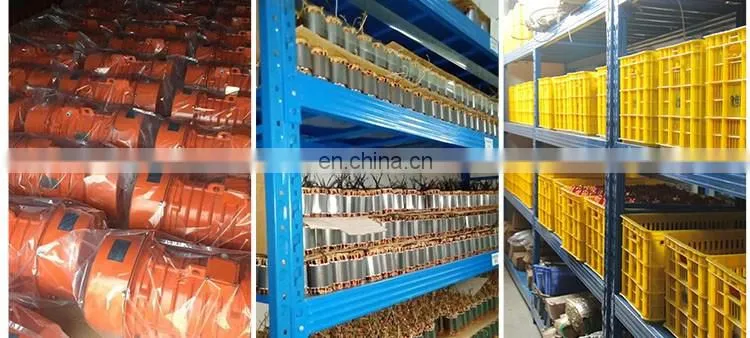

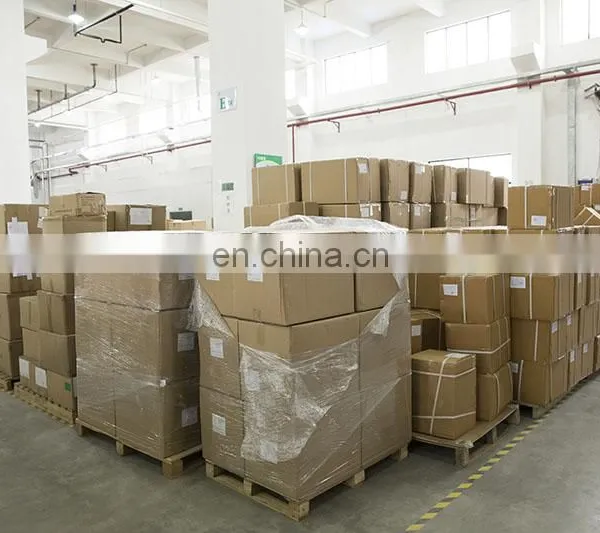

Warehouse

Inventory Adequate, Export Global Multinational Countries

Team

Gold Medal Service, Professional Sales Team

Packing & Delivery

Packing Details : Independent packaging of small vibration motor cartons
Delivery Details : Specifically based on the quantity ordered

1. Suitable carton with bubble film

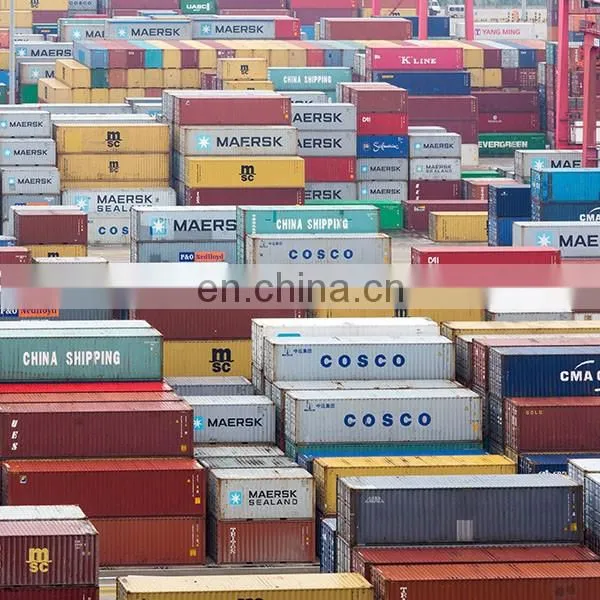

2. Port Logistics Terminal
3. Transportation Safety and Fast
Our Certifications

Multiple certifications

Shenzhen xin jia hong Technology Co.,Ltd.(Shenzhen PUTIAN Vibrating Motors Co.,Ltd.)The company has 45 patents of independent research and development property rights, and the products have passed the national 3C and EU CE certification.

Customer Photo

Favorable Comment

PUTIAN Vibration motor has been installed and used for a period of time, with sufficient power, improved production speed and overall satisfaction.

Favorable Comment

PUTIAN Vibration motor specifications are complete, suitable for American insert 110V, Europe 220V, good operation effect, it is worth recommending!

Favorable Comment

PUTIAN vibration motor has a wide range of applications. It solves the problem of material classification in our company and is very useful.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: es, we can provide samples, but there is a charge.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
