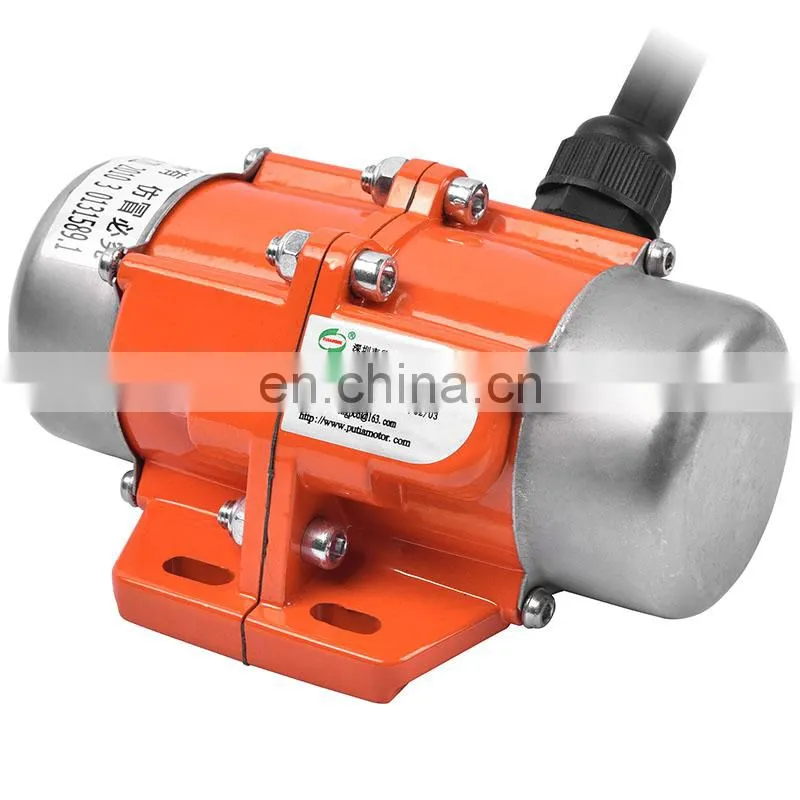

Single Phase 220V/110v Vibrating Motor 30-120W Silo Motor Hopper Motor

US$ 29 - 49 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
putian
Place of Origin:
Guangdong, China
Model Number:
TO/TB
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name putian
Place of Origin Guangdong, China
Model Number TO/TB
Product Description

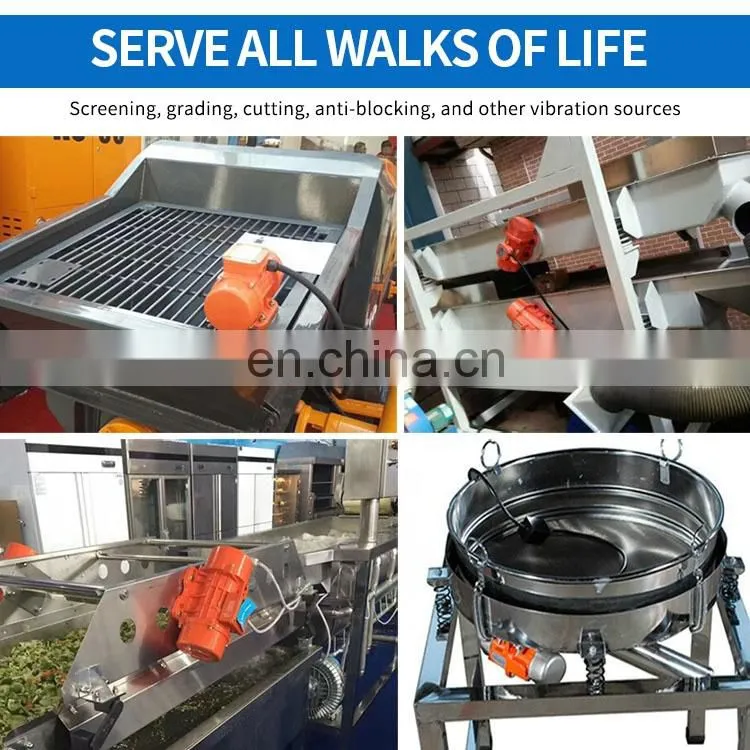

Vibration motor, suitable for cutting, screening, grading and other functions, small size, low noise

power class
30W,40W,50W,60W,70W,80W,90W,100W


excitation force grade
0.3KN,0.4KN,0.5KN,0.6KN,0.7KN,0.8KN,0.9KN,0.1KN
lnsulation grade
F
duty of motor
S1
cooling mode
IC410
Shell material
Aluminium alloy
Voltage
AC
frequency
50Hz/60Hz
TO/TB series parameter table
Single-phase  (50Hz-220V/110V) (60Hz-110V/120V/220V/240V)   (2 poles)
Model number
Voltage
(V)
Current
(A)
Power
(KW)
Speed(rpm)
50Hz/60Hz
Force
(KN)
Frame No.
TO30/2S-1
220V/110V
0.098/0.25
0.03
3000
3600
0.3
1
TO40/2S-1
220V/110V
0.12/0.28
0.04
3000
3600
0.4
1
TB50/2S-2
220V/110V
0.175/0.465
0.05
3000
3600
0.5
2
TB60/2S-2
220V/110V
0.184/0.495
0.06
3000
3600
0.6
2
TB70/2S-2
220V/110V
0.195/0.545
0.07
3000
3600
0.7
2
TB80/2S-2
220V/110V
0.218/0.615
0.08
3000
3600
0.8
2
TB90/2S-2
220V/110V
0.263/0.628
0.09
3000
3600
0.9
2
TB100/2S-2
220V/110V
0.315/0.821
0.10
3000
3600
1.0
2
Three-phase (50Hz-380V/220V) (60Hz-220V/240V/380V460V) (2 poles)
Model number
Voltage
(V)
Current
(A)
Power
(KW)
Speed(rpm)
50Hz/60Hz
Force
(KN)
Werght
(KG)
Frame No.
TO30/2-1
380V/220V
0.11/0.19
0.03
3000
3600
0.3
3
1
TO40/2-1
380V/220V
0.12/0.21
0.04
3000
3600
0.4
3
1
TO50/2-1
380V/220V
0.197/0.34
0.05
3000
3600
0.5
3
2
TO60/2-1
380V/220V
0.198/0.345
0.06
3000
3600
0.6
3
2
TO70/2-1
380V/220V
0.232/0.4
0.07
3000
3600
0.7
3
2
TO80/2-1
380V/220V
0.250/0.433
0.08
3000
3600
0.8
3
2
TO90/2-1
380V/220V
0.261/0.452
0.09
3000
3600
0.9
3
2
TO100/2-1
380V/220V
0.275/0.476
0.10
3000
3600
1.0
3
2

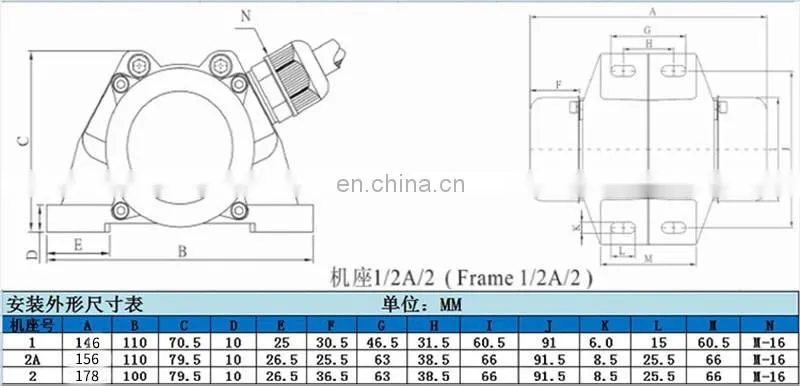

Installation of overall dimension      Unit:mm

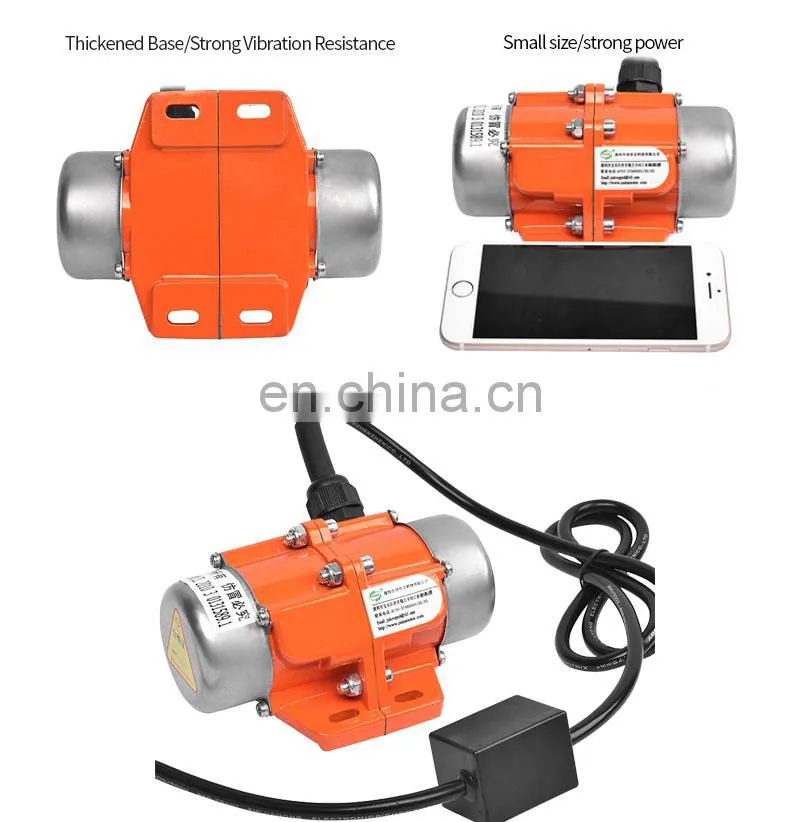

Products Show
Our Service

After-sale service

Professional pre-sales and after-sales team, timely answer customer's difficult questions, complete pleasant transactions

Team of Engineers

Strong technical R&D team, timely response to customer customization requirements for special vibration motors

Factory inspection

Strict inspection before each motor leaves the factory to ensure the quality of the product and to assure your use.

Our Company

Factory

4-storey large factory building in industrial zone

Workshop

High Speed Operation of Pipeline in Some Workshops

Warehouse

Inventory Adequate, Export Global Multinational Countries

Team

Gold Medal Service, Professional Sales Team

Packing & Delivery

Packing Details : Independent packaging of small vibration motor cartons
Delivery Details : Specifically based on the quantity ordered

1. Suitable carton with bubble film
2. Port Logistics Terminal
3. Transportation Safety and Fast
Our Certifications

Multiple certifications

Shenzhen xin jia hong Technology Co.,Ltd.(Shenzhen PUTA Vibrating Motors Co.,Ltd.)The company has 45 patents of independent research and development property rights, and the products have passed the national 3C and EU CE certification.

Customer Photo

Favorable Comment

PUTIAN Vibration motor has been installed and used for a period of time, with sufficient power, improved production speed and overall satisfaction.

Favorable Comment

PUTIAN Vibration motor specifications are complete, suitable for American insert 110V, Europe 220V, good operation effect, it is worth recommending!

Favorable Comment

PUTIAN vibration motor has a wide range of applications. It solves the problem of material classification in our company and is very useful.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: es, we can provide samples, but there is a charge.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
