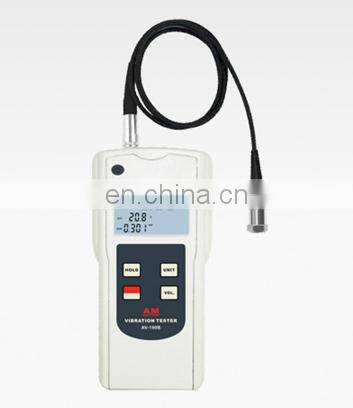

AV-160B Portable Vibration Tester
Feature:
* Can display the parameters of “Displacement”, “Velocity” and “Acceleration” simultaneously.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.
* Individual high quality accelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* AC output socket for headphones and recording.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB data output with connection PC.
* Provide Bluetooth data output choice.
Specification:
| Transducer | Piezoelectric accelerometer |
| Accuracy | ±5%+2 digits |
| Measurement Range | Displacement : 0.001-4.000mm equivalent peak-peak / 0.04-160.0 mil |
| Velocity : 0.01-400.0 mm/s true RMS / 0.000-16.00 inch/s | |
| Acceleration : 0.1-400.0 m/s² equivalent peak / 0.3-1312 ft/s² / 0.0-40g | |
| Frequency Range | Displacement : 10Hz. ~ 1kHz. |
| Velocity :10Hz. ~1kHz. | |
Acceleration: 10Hz. ~ 10kHz. | |
| Operating Conditions | Temperature : 0-50 °C |
| Humidity : below 95% RH | |
| Analogue Output | AC output 0~2.0V peak full scale (load resistance: above 10k) |
| Power Supply | 4x1.5vAAA (UM-4) Battery |
| Size | 140x70x30mm |
| Weight | 130g (Not including Batteries) |
Accessories:
Standard Accessories | Main Unit |
Magnetic suction seat | |
| Probe (cone) / Probe (spherical) | |
| Portable box | |
| Brochures | |
Piezoelectric sensor | |
| Carrying Case | |
| Operation Manual | |
Optional Accessories | Headset |
USB data output | |
| RS-232 data output | |
| Bluetooth™ data output |
