Digital Portable Ultrasonic NDT Test Equipment MFD650C
- 35 Set / Sets per Month
- Qingdao
- T/T Credit Card
Product Details
Brand Name: | PTE | Place of Origin: | Shandong, China | Model Number: | MFD650C |
Power: | Electronic | Usage: | Auto Testing Machine |
Product Description
MODEL MFD650C Portable Ultrasonic NDT Test Equipment
Application:

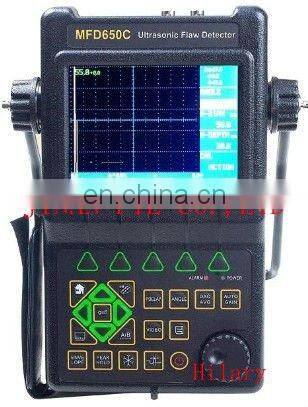

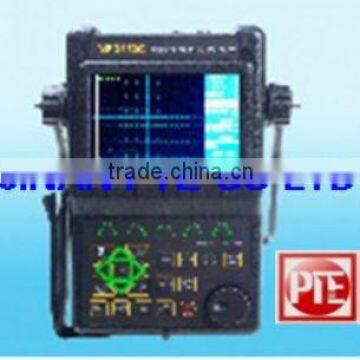

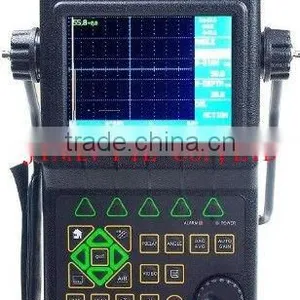

MFD650C Portable Ultrasonic NDT Test Equipment with hi-resolution color TFT LCD display.
The background color and the wave color can be selectable according to the environment. LCD brightness can be manually set. Continue working over 8 hours with high performance lithium-ion battery module (with large capacity lithium-ion battery option), easy to be dismantled and the battery module can be charged independently offline. It is light and portable, easily to be taken by one hand; easy operation; superior reliability makes it long life.
Features:
Test range: 0~ 9999mm (at steel velocity); range selectable in fixed steps or continuously variable.
PULSER:Spike excitation with low, middle and high choices of the pulse energy.
Pulse Repetition Rate: manually adjustable from 10 to 1000 Hz.
Pulse width: Adjustable in a certain range to match different probes.
Damping: 200Ω, 300Ω, 400Ω, 500Ω, 600Ωselectable to meet different resolution and sensitivity need.
Probe work mode: Single element, dual element and through transmission;
Reciever: Real-time sampling at 160MHz high speed enough to record the defect information.
Rectification: Positive half wave, negative halfwave, full wave, and RF : DB Step: 0dB, 0.1 dB, 2dB, 6dB step value as well as auto-gain mode.
ALARM:Alarm with sound and light,.
Memory: Total 1000 configuration channels store all instrument operating parameters plus DAC/AVG curve; stored configuration data can be easily previewed and recalled for quick, repeatable instrument setup. Total 1000 datasets store all instrument operating parameters plus A-scan. All the configuration channels and datasets can be transferred to PC via USB port.
Peak Hold: Automatically searching the peak wave inside the gate and hold it on the display.
Equivalent diameter calculation: find out the peak echo and calculate its equivalent diameter.
Continuous Record: Record the display continuously and save it to the memory inside the instrument.
Defect Localization: Localize the defect position, including the distance, the depth and its plane projection distance.
Defect Sizing: calculate the defect size
Defect Evaluation: Evaluate the defect by echo envelope.
DAC: Distance Amplitude Correction
AVG: Distance Gain Size curve function
Crack measure: Measure and calculate the crack depth

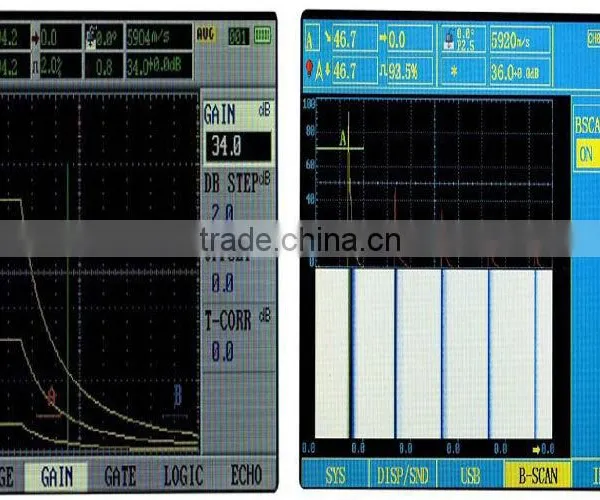

B-SCAN: Display the cross-section of the test block.
Specification:
Channels: 100 channels
Range: (0 ~ 9999) mm
Bandwidth: (0.2 ~ 20) MHz
Material Velocity: (300 ~ 15000) m / s
Dynamic Range: ≥ 36dB
Vertical linear error: ≤ 2.5%
Horizontal linear error: ≤ 0.1%
Resolution:> 40dB (5P14)
Sensitivity Leavings: 65dB (flat-bottomed deep hole 200mm2)
Rejection: (0 to 80)% Linear
Noise level: ≤ 8%
Power supply: DC 9V; lithium batteries work for 8 hours or more
Ambient temperature: (-20 ~ 50) °C
Relative Humidity: (20 ~ 95)% RH
Overall dimensions: 263 × 170 × 61 (mm)

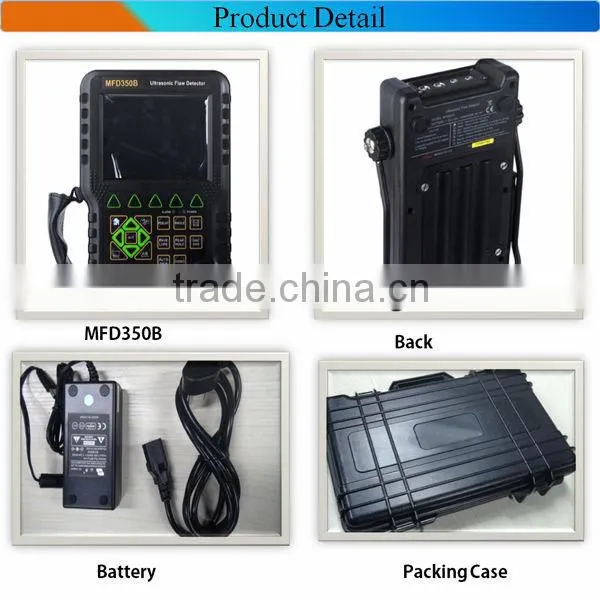

STANDARD CONFIGURATION:
1 Main Body
1 Straight Beam Probe
1 Angle Probe
1 Cable (BNC or LEMO selectable)
1 Battery Module
1 Power Adaptor
1 Support Pillar

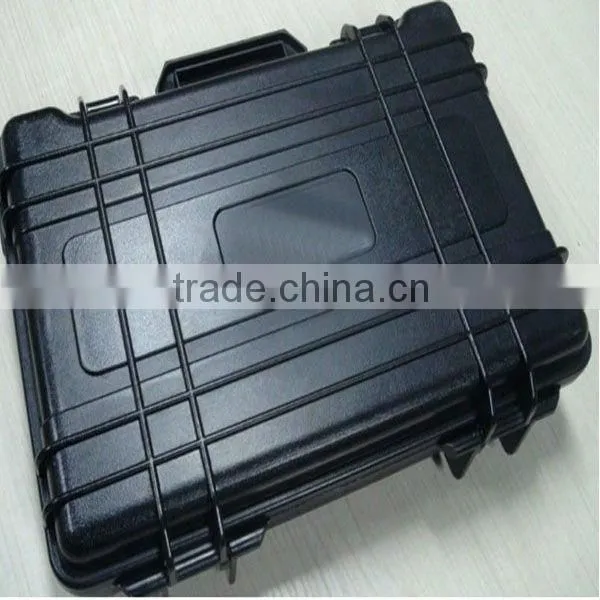

1 Instrument Case
1 Datapro Software with USB cable
1 Documents including Certificate, Manual, Packing list
Packaging Detail:
1. Inner package: dust-proof plastic bag
2. Outer package: standard export wooden case with pallet
3. Special packages: according to buyer's requirements
4. The packages suitable for international transport by sea, by air or any other delivery methods
--------------------------------------------------------------------------------------------------------------------------------------------------------
1. Pre-service
--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
Our company is one of the top-ranking manufacturers and suppliers of test machines worldwide. With many years of experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials test.
WAW-C Hydraulic unviersal testing machine
Model | WE-100C |
Max. Testing Load (kN) | 100 |
Load range(kN) and Min | 0-20/0.05 |
Max. tensile space | 560 |
Max. Compression space | 530 |
Max. Distance Between Two | 400 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
Compressive strength testing machine for concrete
Model | YES-1000 |
Load display accuracy | ±1% |
Distance between upper | 320mm |
Diameter of lower platen | 300 mm |
Piston stroke | 30mm |
Pump nominated pressure | 40MPa |
-------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------
Strength testing machine (single column):
Model | WDW-E1,E2, E3, E5, E10, E20, E30, E50, E100 |
Max. Load | 1kN,2kN,3kN,5kN,10kN,20kN |
Deformation accuracy | ≤±0.5% |
Load speed | 0.005-500mm/min |
Total crosshead travel (mm) | 1075 |
Spacing of grip to grip(mm) | 750 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
PLG 300C PC Control High Frequency Fatigue Testing Machine
Model | PLG-10C PLG-20C PLG-50C PLG-100C PLG-200C PLG-300C |
Mean load max(kN) | ±10 .... |
Load step | 1,2,5 |
Accuracy of static load | ≤±1% |
Range of frequency(Hz) | 60~300HZ |
Power | 380V, 3phs, |
-------------------------------------------------------------------------------------------------------------------------
WAW Computer Control Servo Hydraulic Universal Testing Machine
Model | WAW-300E WAW-600E WAW-1000E WAW-2000E |
Max. Testing Load (kN) | 300 .... |
Load Accuracy | ≤±1% from 2% to 100% of full scale |
Strain accuracy | ≤±0.5% |
Load frame Type | 4-column and 2-screw structure |
Max. tensile space (Including piston | 690 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
TORSION TESTING MACHINE
Item | NJS-30 |
Max torque(Nm) | 30 |
Torque resolution (Nm) | 0.01 |
Accurate measuring range of torsion (Nm) | 0.6-30 |
Full-scale reading of torsion angle (º) | 9999.9 |
Torsion angle resolution (º) | 0.01 |
-------------------------------------------------------------------------------------------------------------------------------------------------------
PLS Dyanmic testing machine
Model | PLS-50 |
Static | ±50 |
Dynamic | 50 |
Function generator Range of frequency(Hz) | 0.01~20HZ |
Stroke of piston(mm) | ±75 |
Distance between columns | 500 |
RTH CREEP TESTING MACHINE
Working Temp. range | 400°C~1200°C |
Length of effective soaking zone | 150mm |
Furnace pipe: | φ90mm |
Furnace: | φ300mm |
Furnace life: | ≥3000hours |
Timing error | ±0.2% |
