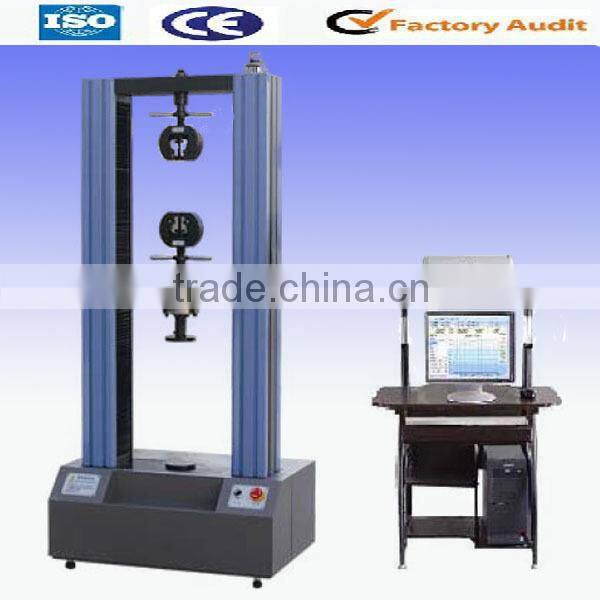

WDW-100 UTM Universal Tensile Strength Testing Machine
- 35 Set / Sets per Month
- Qingdao
- T/T Credit Card
Product Details
Brand Name: | PTE | Place of Origin: | Shandong, China | Model Number: | WDW-100 |
Power: | Electronic | Usage: | Universal Testing Machine |
Product Description
Applications:
Model WDW-100 Universal Electromechanical Testing Machine is designed and manufactured according to ASTM, ISO, DIN etc standards. It is computer-controlled precision Testing Machine, suitable for wide range of material for tension, compression, Bending and shearing test. It has high stability as well as high precision, equipped with PC system & printer for graph, test result display, test control as set program, printing & data processing. Complete with modulus for metal, spring, textile, rubber, plastic and other material testing & creep test. It is widely used in many fields such as industry factories, mineral enterprise and high schools.
Features:
1. High accuracy servo motor to control test speed.
2. Ball screw no backlash to guarantee the low noise and high driving efficiency
3. High accuracy load cell to measure the test load
4. High accuracy photoelectric encoder to measure the displacement.
5. Special testing machine software has strong function, it can show test load, displacement, test speed, test status, and also has the function of peak load holding, peak displacement holding and self return original position.
6. Thousands of test fixture can be used according to different test request;
7. Compact structure with easy operation.
8. Limit switch and setting in the software to guarantee the safety
Force Measurement:
Load accuracy meets or exceeds Grade 1 ASTM E4, ISO7500-1. EN10002-2, BS1610, DIN51221
Displacement Measurement:
Encoder over 2000pulse/turn to guarantee the accurate displacement, the encoder is installed with the ball screw, and the ball screw to drive it turning directly.
Speed setting
Speed can be set between 0.005 -500mm/min by computer, and the excellent servo motor can support the high speed, and the speed can be extended by special offer.
Load frame:
Robust compact structure guarantees the stiffness of the machine, and the step motor drives the no backlash ball screw to do test.
Product specification:

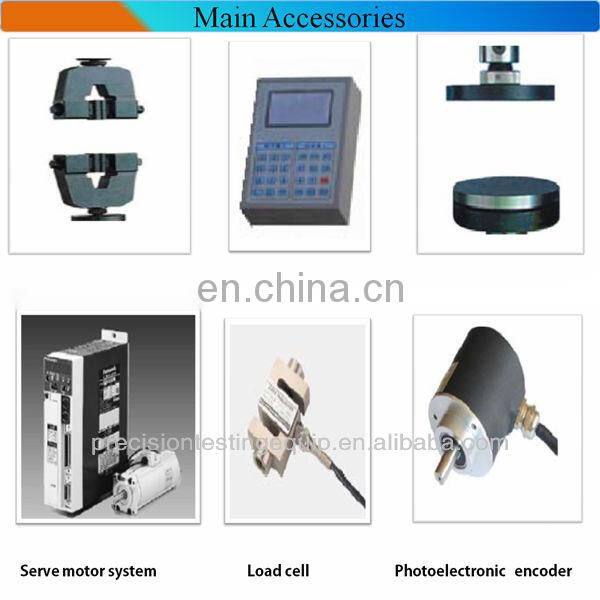

Main Accessories:
1. Mechanical wedge grip 1 set
Inserts for round specimen Φ4~Φ9mm, Φ9~Φ14mm, Φ14~Φ20mm, 1 set for each
Inserts for flat specimen 0~7mm, 7~14mm, 7~21mm 1 set for each
2. Compression test attachment 1 set
3. Bending test attachment 1 set
4. High precision load cell 1 set Flat load cell +/-100kN, Tensile & Compression type
5. Photoelectric encoder 1 set Measure the displacement
6. Extensometer Gauge length: 50mm, travel 25mm
7. Computer & printer & software 1 set Computer: LENOVA or Dell Printer: Hp
8. Servo motor and Control system 1 set

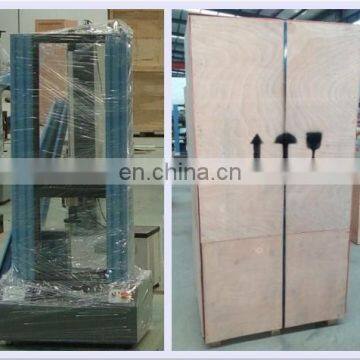

Packaging Detail:
1. Inner package: dust-proof plastic bag
2. Outer package: standard export wooden case with pallet
3. Special packages: according to buyer's requirements
4. The packages suitable for international transport by sea, by air or any other delivery methods
OUR COMPANY--
PTE- A Material Testing Machine Manufacturer
About PTE
JINAN PRECISION TESTING EQUIPMENT CO., LTD is one of the top-ranking manufacturers and suppliers of testing technologies worldwide. With many years experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials testing.
The main products from JINAN PRECISION TESTING EQUIPMENT include hardness testers, universal testing machines, Sample preparation equipment, non-metal materials testing equipment, which can used for testing metals, plastics, rubber, textiles, paper, paint, cement, concrete and packaging materials, etc. Their usage is very wide.
Welcome to enquiry and prompt reply will be done by our professional technical and sales person.
1. Pre-service
--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
