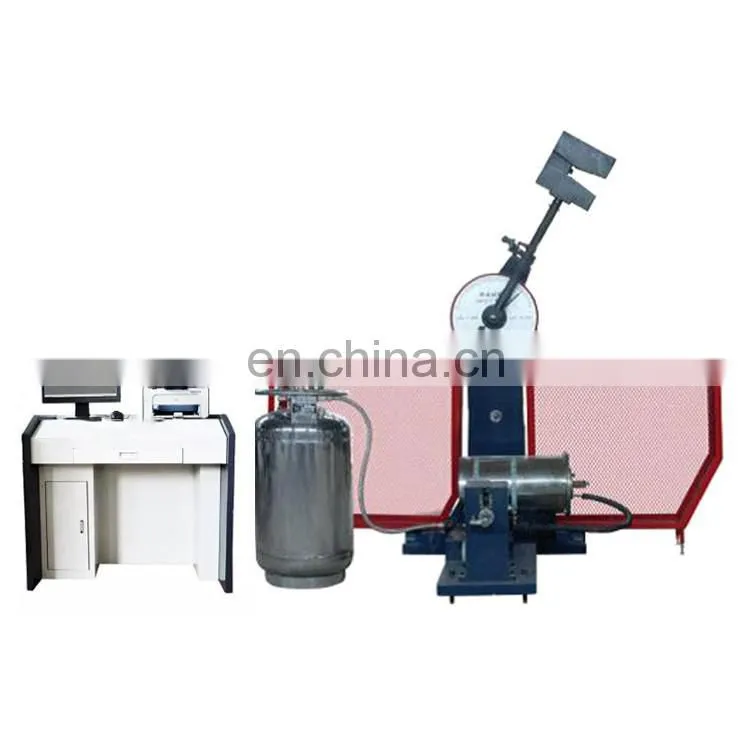

Computer Full Automatic Control Liquid Nitrogen Refrigeration Charpy Impact Testing Machine
JBDW-D Computer Control Ultralow-temperature Automatic Charpy Impact Testing Machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load.
It’s a necessary testing machine, not only used in the metallurgy, machine manufacture etc areas, but also used for the science research.
Standards:
ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007.
| Model | JBDW-300D | JBDW-500D |
| Impact Energy | 150 J / 300 J | 250 J / 500 J |
| Value Of Every Grid | 1 J | |
| Control Methods | Computer Full Automatic Control | |
| The Distance Between The Pendulum | 750 mm | 800 mm |
| Shaft And Impact Point | ||
| Impact Speed | 5.2 m/s | 5.4 m/s |
| Impact Pendulum Configuration | 150 J, 1 PC; | 250 J, 1 PC; |
| 300 J, 1 PC | 500 J, 1 PC | |
| Pre-rising Angle Of The Pendulum | 150° | |
| Specimen Bearer Span | 40+0.2 mm | |
| Round Angle Of The Jaw | R 1.0~1.5 mm | |
| Round Angle Of Impact Edge | R 2.0~2.5 mm (Special Order: R8±0.05 mm) | |
| Angle Accuracy | ±0.1° | |
| Standard Specimen Dimension | 10 mm*10(7.5 or 5) mm*55 mm | |
| Thickness Of Impact Knife | 16 mm | |
| Cooling Way | Liquid Nitrogen Refrigeration | |
| Capacity Of Sample Box | 6 PCS | |
1.It is computerized,so the computer can do data processing.
2.The software based on ISO,ASTM,DIN etc standard.
3.Full english version and also can be local language,such as Poland,Russian,Thailand etc.
Standard Accessories
1. Big Pendulum (300J): 1 pc
2. Small Pendulum (150J): 1 pc
3. Span specimen plate (L = 40mm): 1 pc
4. Specimen centering plate (L = 40mm)(U, V): 1 pc
5. Detacher: 1 pc
6. Simple-head spanner (S=30mm): 1 pc
7. Inner-hexagon spanner (S=12mm): 1 pc
8. Anchor bolts (M16x300mm): 4 pcs
9. Grips (including support) (R=1mm): 1 pair
10.Computer & Printer
11. Software (For details, please refer to Annex-1)
Optional accessories:
1. Full-close Aluminum- alloy Safe cabin 1 set
2. ASTM E23 striking edge (R8mm) 1 pc
3. Self centering tong for setting charpy test specimen 1 pc
Result Window
Pre-service---Trade manager 24 Hours online service
Middle Service ---Recommend the suitable model and give competitive price
After serivce---2 years guarantee,Free installation CD/DVD, Remote control technical consult , oversea trainning,Provide newest software vision when update
