150 300J dial show steel material charpy pendulum impact tester for sale
- 60 Set / Sets per Month
- Qing Dao
- T/T Credit Card
You May Like
-
150 300J steel bar digital charpy pendulum impact tester for sale
-
high quality and service metal 300J charpy impact tester for sale price
-
Digital Charpy Izod impact test machine for the toughness of metal
-
Microcomputer controlled Izod and charpy metal impact testing machine impact strength tester
-
ASTM E23 300JComputer Control Metal Material Charpy Impact Testing Machine
-
High Precision Touch-Screen Electronic Pendulum Impact Testing Machines for Testing Metals
Product Details
| Brand Name | PTE izod charpy impact tester | Place of Origin | Shandong, China | |
| Model Number | Charpy Structure metal impact testing machine | Power | Electronic |
Product Description

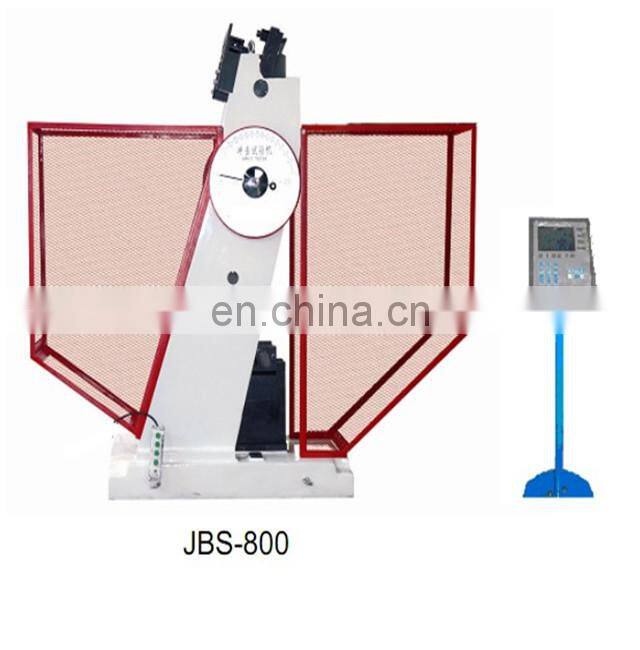

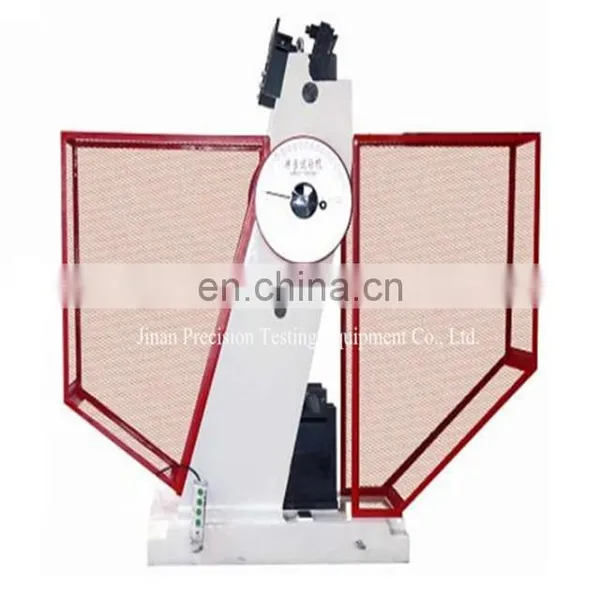

150 300J dial show steel material charpy pendulum impact tester for sale
Application:
The JBS-500 LCD Display Impact Tester was strictly designed according to national standard GB/T3038 “Inspection for pendulum Impact Testing Machine” and GB/229 “Charpy notch Impact Test Method for metal material”. It is also accordance with international standard ISO148, EN100045 and ASTM E23. It is mainly used to determine the anti-impact capability of metal materials under dynamic load. It is the ideal testing equipment for many metal material manufactories, quality inspection departments and universities. The result will display on both digital display and dial gauge, with PLC control, its reliability is very good, JBS Series can use pendulum’s residual impact energy to achieve the raising again of pendulum, so it’s applicable for batch testing tasks.
Specifications:
|
Specifications |
JBS-500 |
|
Impact energy (J) |
250, 500 |
|
Impact velocity (m/s) |
5.4 |
|
Raised angle (º) |
150 |
|
Standard span (mm) |
40 |
|
Round angle of jaws (mm) |
R1-1.5 |
|
Round angle of striking edge (mm) |
R2-2.5 |
|
Size of specimen (mm) |
10 x 10 x 55 |
|
Power supply |
3phs, 380V, 50Hz or 220V,60Hz |
|
Dimensions (mm) |
2144 x 736 x 1390 |
|
Net Weight (kg) |
650 |
|
Display |
LCD screen |
all model:
|
Specifications |
JBS-300 |
JBS-500 |
JBS-800 |
|
|
Impact energy (J) |
150, 300 |
250, 500 |
500, 800 |
|
|
Impact velocity (m/s) |
5.2 |
5.4 |
5.9 |
|
|
Raised angle (º) |
150 |
|||
|
Standard span (mm) |
40 |
|||
|
Round angle of jaws (mm) |
R1-1.5 |
|||
|
Round angle of striking edge (mm) |
R2-2.5 |
|||
|
Size of specimen (mm) |
10 x 10 x 55 |
|||
|
Power supply |
3phs, 380V, 50Hz, |
|||
|
Dimensions (mm) |
2124 x 600 x 1340 |
2144 x 736 x 1390 |
2450 x 1200 x 2455 |
|
|
Net Weight (kG) |
450 |
650 |
2300 |
|
|
Display |
LCD screen |
|||
