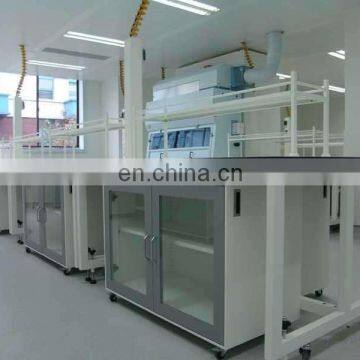

Lab Wall Bench Movable Side Bench for Chemicalt Movable Laboratory Furniture

Guangzhou Hopui Laboratory Equipment Co.,Ltd

is a large-scale production and sales professional modern laboratory company integrating laboratory planning and design, laboratory furniture manufacturing, laboratory construction, renovation and renovation engineering construction, laboratory equipment sales. The company is committed to the safe, effective, green and environmentally friendly laboratory decoration design and innovation, high-end comfortable office decoration and tight integration.

C-Frame Island Bench

C-Frame Wall Bench

(Apply to All steel and Wood-steel structure)

H-Frame Island bench

(Apply to All steel structure)

H-Frame Wall bench

(Apply to All steel structure)

C-Frame(Apply to All steel and Wood-steel structure)

C-Frame type structure is simple, flexible, can be freely combined. C-frame optional cabinet and cabinet-type structure, with the user's needs for a variety of combinations, easy to install and disassemble, is conducive to laboratory cleaning; load capacity of 250 kilograms

Remark:C-frame can apply to wood-steel and all steel structure, because the c-frame don't need to contact with the ground,so can use wood or steel material

H-Frame (Apply to All steel structure) steel structure

Dignified and generous, load-bearing performance, making the test bed load can reach 500KG above, to meet the requirements of large-scale precision instruments.(H-Frame is is made up of cabinets and has no steel frame.)

Remark:H-frame only apply to All steel structure, because the H-frame (floor model) need to Contact with the ground,so must use steel material, if use the wood material will be affected with damp

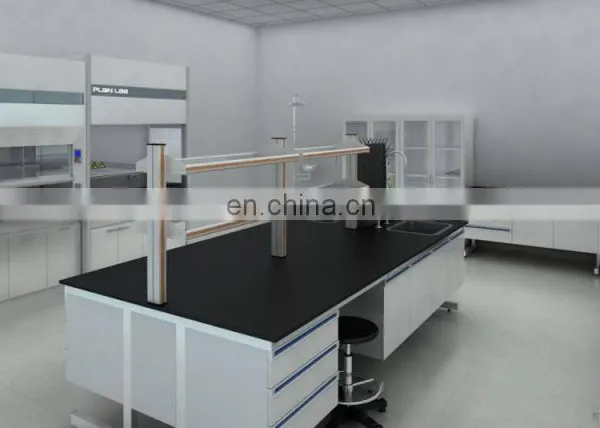

All Steel Island/Wall Bench

Wood-Steel Island/Wall Bench

Table top
(1) epoxy resin:16/19/20/25mm thickness Epoxy resin
(2) ceramic table tops(optional):20mm thickness of Laboratory Ceramics,Black Color
(3) solid physiochemical board: Use 12.7 mm thickness solid physiochemical board.

Framework
(1) Cabinet frame: 60 x 40 x 1.5mm thickness rectangular electrolytic steel square tube,support column is the same specification steel tube, double sides welding cold rolled steel,surface is with zinc plating coloring `and electrostatic powder spraying epoxy resin treatment as protective layer for acid and alkali corrosion resistance.its protective layer adhesive force is tested and qualified by falling objects impact,Static bearing > 250 kg, support column can hang on cabinets directly, no need to destroy wall body.
(2) Cabinet frame: imported 16 mm thickness double-sided pressure-viscosity melamine MDF, all round cross-section with PVC waterproof sealing treatment,waterproof, anti corrosion, moth-proofing, etc.
(3)Door plank, drawer panel: imported 18mm thickness double-sided pressure-viscosity melamine MDF, all round cross-section with PVC waterproof sealing treatment,waterproof, anti corrosion, moth-proofing, etc.
(4)Handle: use PVC in-line style handle.
(5)Hinge: use DTC 175 degree hinge.
(6)Footing: adopt special laboratory stainless steel adjustable footing, adjusting range ≥ 35 mm, for ground easy cleaning.
(7)Guide rail: use DCT trinodal steel ball slide rail.
(8)Reagent rack: use aluminum alloy column, epoxy resin coating tray, 12 mm thickness toughened glass laminate, stainless steel guardrail.
(9)Lank-off panel:12 mm thickness melamine board.Removable design,convenient for hydro-electric power system installation and maintenance.
