Internorman 01.E 3001.25VG.10.E.P Hydraulic Oil Filter Element

Internorman 01.E 3001.25VG.10.E.P Hydraulic Oil Filter Element thumbnail-1
Internorman 01.E 3001.25VG.10.E.P Hydraulic Oil Filter Element thumbnail-2
Internorman 01.E 3001.25VG.10.E.P Hydraulic Oil Filter Element thumbnail-3
Internorman 01.E 3001.25VG.10.E.P Hydraulic Oil Filter Element thumbnail-4
Internorman 01.E 3001.25VG.10.E.P Hydraulic Oil Filter Element thumbnail-5
Internorman 01.E 3001.25VG.10.E.P Hydraulic Oil Filter Element photo-1
Internorman 01.E 3001.25VG.10.E.P Hydraulic Oil Filter Element photo-2
Internorman 01.E 3001.25VG.10.E.P Hydraulic Oil Filter Element photo-3
Internorman 01.E 3001.25VG.10.E.P Hydraulic Oil Filter Element photo-4
Internorman 01.E 3001.25VG.10.E.P Hydraulic Oil Filter Element photo-5
US$ 50 - 110 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
LEFILTER
Place of Origin:
China
Model Number:
01.E 3001.25VG.10.E.P
Contact Supplier Request Quote Chat Now
Xinxiang Lifeierte Filter Corp.,LTD
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen,qingdao,shanghai etc
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LEFILTER
Place of Origin China
Model Number 01.E 3001.25VG.10.E.P
After-sales Service Provided Overseas third-party support available

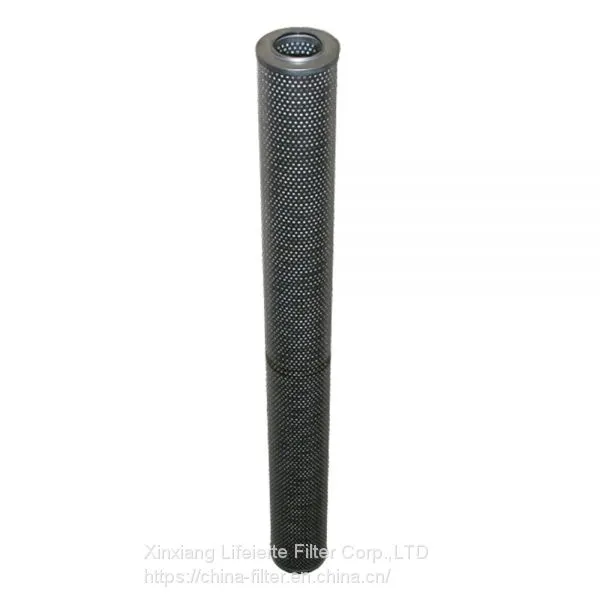

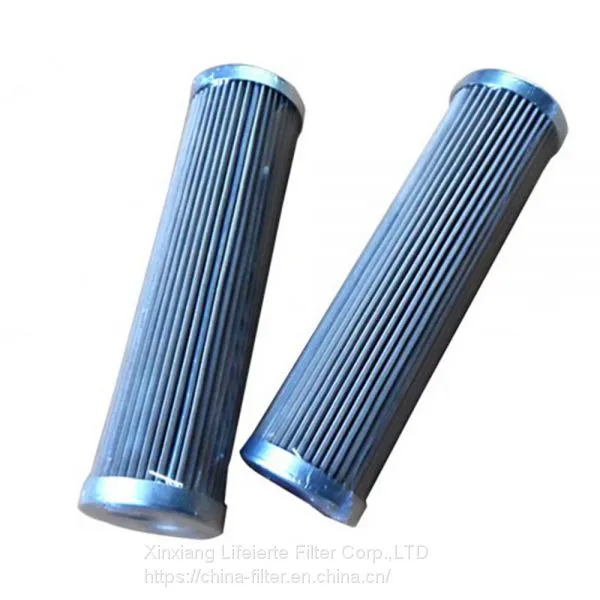

01.E 3001.25VG.10.E.P Hydraulic Oil Filter Element

TYPE CODE

SERIES:01.E (Pressure, Return-Line and Lubrication Filter Elements)
NOMINAL LENGTH (mm):41, 55, 70, 120, 175, 210, 320, 330, 425, 625, 631, 950, 1201, 2001, 3001, 4001
RETENTION: 3, 6, 10, 16, 25, 40, 80 (microns)
MATERIAL:VG=microglass
G=stainless steel wire mesh
DIFFERENTIAL PRESSURE RATING:16 bar (232 PSI)
DESIGN:E=single open end
S= bypass valve with various cracking pressure options
SEAL MATERIAL:P=nitrile
V=Viton
SPECIFICATIONS:- = standard (blank or a dash)
IS06= HFC applications (water glycol fluids for fire-resistant systems)

Data sheet:

Data items

Data sheet details

Size details

Media

Stainless steel

A:135.5mm

C:742mm

Fiberglas

Micron

3-80micron

Collapse

21-210bar (High pressure)

Seal type

NBR

By-pass

No

Fluid comp

Mineral oil, etc

Drawing:

Other P/N:

01.E3001.10P.10.E.P

01.E3001.130G.16.S.V

01.E3001.25P.16.S.V

01.E3001.40G.10.S.V

01.E3001.10P.10.E.V

01.E3001.16VG.10.E.P

01.E3001.25VG.10.E.P

01.E3001.40G.16.E.P

01.E3001.10P.10.S.P

01.E3001.16VG.10.E.V

01.E3001.25VG.10.E.P.VA

01.E3001.40G.16.E.V

01.E3001.10P.10.S.V

01.E3001.16VG.10.S.P

01.E3001.25VG.10.E.V

01.E3001.40G.16.S.P

01.E3001.10P.16.E.P

01.E3001.16VG.10.S.V

01.E3001.25VG.10.E.V.VA

01.E3001.40G.16.S.V

01.E3001.10P.16.E.V

01.E3001.16VG.16.E.P

01.E3001.25VG.10.S.P

01.E3001.6VG.10.E.P

01.E3001.10P.16.S.P

01.E3001.16VG.16.E.V

01.E3001.25VG.10.S.P.VA

01.E3001.6VG.10.E.P.VA

01.E3001.10P.16.S.V

01.E3001.16VG.16.S.P

01.E3001.25VG.10.S.V

01.E3001.6VG.10.E.V

01.E3001.10VG.10.E.P

01.E3001.16VG.16.S.V

01.E3001.25VG.10.S.V.VA

01.E3001.6VG.10.E.V.VA

01.E3001.10VG.10.E.P.VA

01.E3001.25G.10.E.P

01.E3001.25VG.16.E.P

01.E3001.6VG.10.S.P

01.E3001.10VG.10.E.V

01.E3001.25G.10.E.P.VA

01.E3001.25VG.16.E.V

01.E3001.6VG.10.S.V

01.E3001.10VG.10.E.V.VA

01.E3001.25G.10.E.V

01.E3001.25VG.16.S.P

01.E3001.6VG.16.E.P

01.E3001.10VG.10.S.P

01.E3001.25G.10.E.V.VA

01.E3001.25VG.16.S.V

01.E3001.6VG.16.E.V

01.E3001.10VG.10.S.P.VA

01.E3001.25G.10.S.P

01.E3001.3VG.10.E.P

01.E3001.6VG.16.S.P

01.E3001.10VG.10.S.V

01.E3001.25G.10.S.P.VA

01.E3001.3VG.10.E.P.VA

01.E3001.6VG.16.S.V

01.E3001.10VG.10.S.V.VA

01.E3001.25G.10.S.V

01.E3001.3VG.10.E.V

01.E3001.80G.10.E.P

01.E3001.10VG.10.S1.P

01.E3001.25G.10.S.V.VA

01.E3001.3VG.10.E.V.VA

01.E3001.80G.10.E.P.VA

01.E3001.10VG.16.E.P

01.E3001.25G.16.E.P

01.E3001.3VG.10.S.P

01.E3001.80G.10.E.V

01.E3001.10VG.16.E.V

01.E3001.25G.16.E.V

01.E3001.3VG.10.S.V

01.E3001.80G.10.E.V.VA

01.E3001.10VG.16.S.P

01.E3001.25G.16.S.P

01.E3001.3VG.16.E.P

01.E3001.80G.10.S.P

01.E3001.10VG.16.S.V

01.E3001.25G.16.S.V

01.E3001.3VG.16.E.V

01.E3001.80G.10.S.V

01.E3001.130G.10.E.P

01.E3001.25P.10.E.P

01.E3001.3VG.16.S.P

01.E3001.80G.16.E.P

01.E3001.130G.10.E.V

01.E3001.25P.10.E.V

01.E3001.3VG.16.S.V

01.E3001.80G.16.E.V

01.E3001.130G.10.S.P

01.E3001.25P.10.S.P

01.E3001.40G.10.E.P

01.E3001.80G.16.S.P

01.E3001.130G.10.S.V

01.E3001.25P.10.S.V

01.E3001.40G.10.E.P.VA

01.E3001.80G.16.S.V

01.E3001.130G.16.E.P

01.E3001.25P.16.E.P

01.E3001.40G.10.E.V

01.E3001.130G.16.E.V

01.E3001.25P.16.E.V

01.E3001.40G.10.E.V.VA

01.E3001.130G.16.S.P

01.E3001.25P.16.S.P

01.E3001.40G.10.S.P

Ivy/Overseas Saler

--------------------------------------------------------------------------------------

Add:Lefilter Mansion, No. 12 Hongli Road, Muye District,Xinxiang City, Henan Province,China

Tel: 0086-373-3392688
Max: 0086-373-3339377
Wechat & Whatsapp:+86-15836195338

Skype: frank.filter

Mail:filtersales02@le-filter.com


Product Tags: 01.E 3001.25VG.10.E.P internorman hydraulic filter , 01.E 3001.25VG.10.E.P hydraulic oil filter element , 01.E 3001.25VG.10.E.P filter
