CE certificate toughened insulating glass roof price
SUN GLOBAL GLASS have been in the field of building glass over 20 years. Professional manufacture customized glass roofing panels for safety toughened insulating glass roof. Toughened insulating glass roof is an kind of energy saving glass, which is heatproof and soundproof etc., It allows natural light go into the entrance fully.
Production line Insulated glass roof
Why choose toughened insulating glass as roof?
1- Toughened glass with high strength function, keep the exterior roof against rain, wind, snow, etc..
2- For insulating glass have a UV reduction, noise reduction and any other temperature control function.
If you have Low-E glass as Insulated glass curtain wall, welcome you to talk with us below,
we will send our parameter for your viewed.
Different between single silver coated and double silver coated:
1- Any coated glass limits the transmission of visible light to varying degrees while limiting the transmission of solar thermal radiation.
2- Double-silver Low-E glass blocks more solar heat from the radiant heat than single-silver Low-E glass. In other words, in the case of the same light transmittance, the double silver Low-E has a lower shading coefficient Sc, which can filter the sunlight into a cold light source to a greater extent.
3- The double-silver Low-E glass has a lower heat transfer coefficient than the single-silver Low-E, which can further improve the insulation performance of the outer window, and truly achieve warm winter and cool summer. In short, because the double-silver Low-E glass greatly reduces the heat exchange between the indoor and outdoor environment through the glass, when the air conditioner is heating or cooling, the air conditioner can be longer after the indoor temperature reaches the set temperature. Time is in standby, saving power.
Specification of toughened insulating glass roof:
| Size | Flat shape Max size is 3300*13000mm, min size is 150*300mm, and customized size is accepted. |
| Curved shape | Minimum radius reach 600mm, Maximum arc reach 2440mm, Maximum height reach 5500mm, etc... |
| Thickness | ESG/TVG (heat strengthened) IGU 4+9A+4mm, 4+12A+4mm, 4+15A+4mm, 5+9A+5mm, 5+12A+5mm, 5+15A+5mm, 6+12A+6mm, 8+12A+8mm 10+16A+10mm, etc |
| Spacer | Dry air, noble glass such as Argon, etc |
| Production capacity | 4,0000 per month, 15 working day production time, shipping time should be confirmed. |

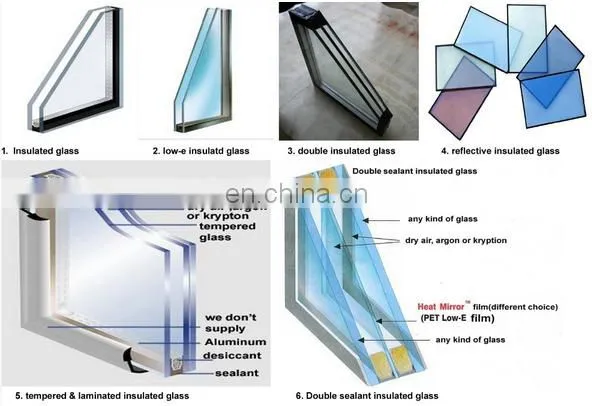

| Glass type | Clear toughened insulating glass roof, ultra clear toughened insulating glass roof, Low-E toughened insulating glass roof, tinted color(4,5,6,8,10mm) toughened insulating glass roof, reflective color(4,5,6,8,10mm) toughened insulating glass roof, |
Excepted toughened insulating glass roof, other glass roof you can get from us such as tempered laminated glass roof.
| Customized whole glass size |
6+12A+13.52mm, 8+12A+13.52mm,8+16A+13.52mm, 10+16A+17.52mm, 10+16A+21.52mm,etc... Double: 8+8mm, 10+10mm, 12+12mm, 15+15mm, etc.. Triple: 8+8+8mm, 10+10+10mm, 12+12+12mm, 15+15+15mm, etc.. Four layer: 8+8+8+8mm, 10+10+10+10mm, 12+12+12+12mm, 15+15+15+15mm, Five layer: 8+8+8+8+8mm, 10+10+10+10+10mm, 12+12+12+12+12mm, 15+15+15+15+15mm. etc... |
| PVB thickness | 0.76mm, 1.14mm, 1.52mm, 1.9mm, 2.28mm |
| SGP thickness | 0.89mm, 1.52mm, 2.28mm, 3.04mm |
| Glass type | Clear tempered laminated glass roof, ultra clear tempered laminated glass roof, color tempered laminated glass roof , frosted tempered laminated glass roof, silk screen tempered laminated glass roof, curved tempered laminated glass roof, insulated tempered laminated glass roof , etc.. |
What the difference between SGP curved lamianted glass and PVB laminated glass?
| Item | SGP film tempered laminated glass | PVB film tempered laminated glass |
| Name | Sentry Guard Plus Interlayer, produced from only one brand | Whole named Polyvinyl butyral with many different suppliers. |
| Thickness | 0.89, 1.52, 2.28, 3.04 | 0.38, 0.76, 1.14, 1.52, 1.9, 2.28, 2.66, 3.04 |
| Safety | Stand when broken | Fall down when broken |
| Strength | 100 times than PVB | High strength |
| Clarity | Yellow index is smaller than 1.5, much clear | Yellow index is 6-12 |
| Application | Widely used to against the severe weather like storms, hurricane, other bad condition environment. | General uses, if use them to against bad condition, easy to delaminate. |
Other related products you may like...

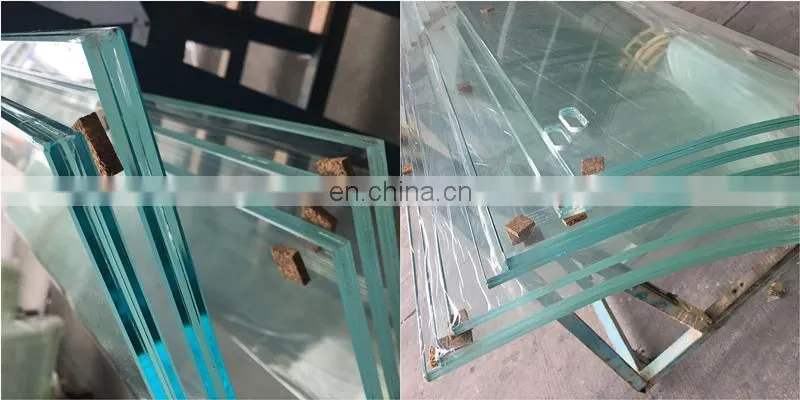

Tempered laminated glass Curved tempered laminated glass

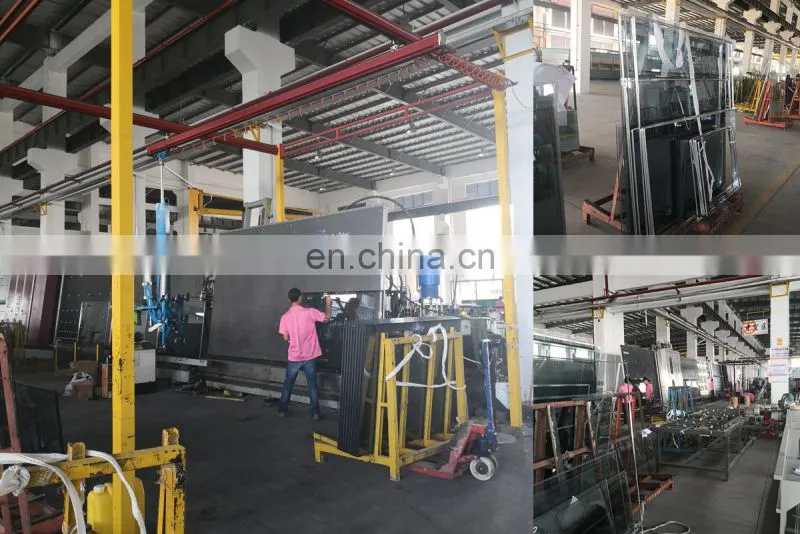

Our production capacity

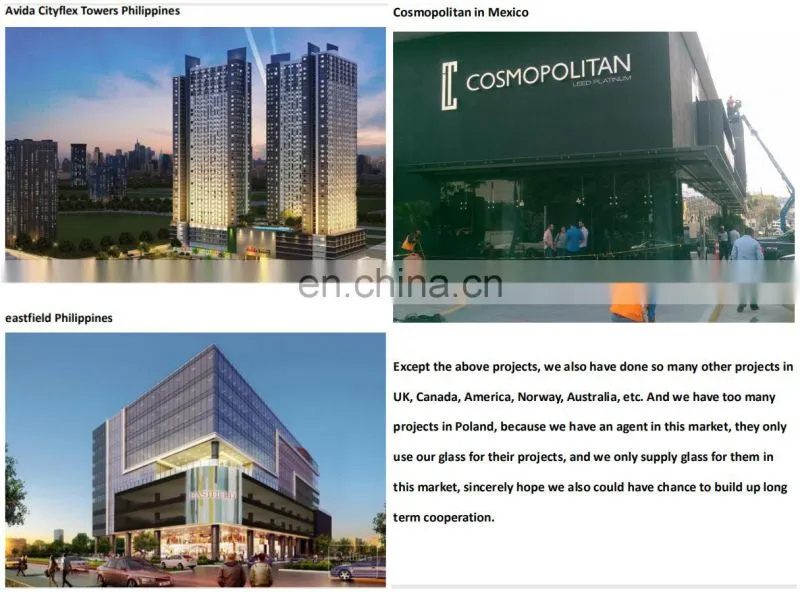

Our finished projects
Our sales team and parts of customers
Different type of certificates suitable your market
All Sun Global Glass glass packaged in strong export plywood crates and load safety in the container
with metal belt to avoid breakage.
Flat glass packing
Curved glass packing
1- Q: Can I received free sample?
A : Sure, we welcome sample to be tested and checked quality, but for fair, you should pay the express charge, but we will refund the charge when begin our formal business.
2- Q: What is the MOQ?
A: Generally, there is no MOQ for processed glass, but if you want to received best price, the more requirements, the quote will be better.
3- Q: Can I mix different type of glass in container?
A: Sorry, processed glass always customized, we support different size or thickness of processing glass, but do not accept different type, we should confirm the transportation safety and your urgent order and be responsible for you, hope you understand. :)
4- Q:Do you offer guarantee for the products?
A: Yes, generally, we offer 5 years warranty for processing glass based on your normally uses, we advise you uses in a right way can keep your products service life in a long time(more than 5 years).
5- Q:What's the fastest production time you can do?
A: Generally, for your urgent order, we can meet your requirements within 10 working days production.
6- Q: Can I visit your factory?
A: Yes, we welcome all of customers visit our factory when you have real requirements, we will take you to each of our production line, and discussing orders in our office.
7- Q: How do you control the quality of your products?
A: We have standard management on factory based on ISO system, and train our staffs regularly, our production department they will choose high quality materials for glass strictly, for finished a excellent products.
Contact us
We have built up long term business relationship with customers all around the world.
Maybe we do not have the cheapest price in the world, but we are sure have top quality and heart-heart services for you. If there is any questions we can do for you, please feel free to contact us with following details:
