Help CenterTempered Solar Panel Glass for PV Module
Related Products
-
Hot Selling AR Coating Solar Glass for PV ModuleUS$ 4 - 6MOQ: 300 Square Meters -
3.2mm 4mm Solar Patterned Glass GlassUS$ 7.5 - 10MOQ: 1000 Square Meters
-
3.2mm High Quality Solar Glass Price for Solar PanelUS$ 5 - 10MOQ: 100 Square Meters
-
Solar GlassUS$ 5 - 10MOQ: 100 Square Meters
-
Ultra Clear Glass for Solar Panels GlassUS$ 1 - 20MOQ: 1 Square Meter

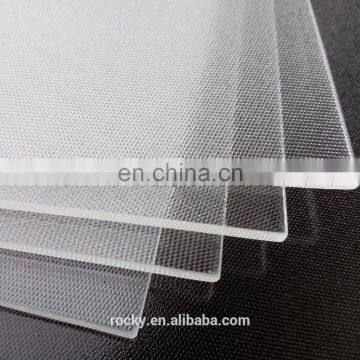

3.2mm Low Iron AR Coating Tempered solar panel Glass for PV Module combined with nanometer anti-reflective coating technology,increase solar transmittance by way of decreasing light reflectance and improve the solar cell phtotelectric conversion efficiency.Meanwhile,it reduces the reflected glare of the glass and the pollution caused by the reflectance to the environment.
The hydrophobic behavior of the AR coating could in some degree protect the dust and dirt from shading the light and improve the cleaning performance of the glass. With the outstanding characteristics of the high solar lights transmittance, the low reflectance, the low iron, the high mechanical strenght and the high flatness, it is one of the indispensable important parts of solar cell and has been widely used to photovoltaic power generation all over the world.
Applications:
Monocrystalline and Polycrystalline Solar Cells
Solar water heater,etc
Features
1. High solar lights transmittance
2. The low reflectance: visible light reflectance is less than 7.30%
3. Low iron:glass has only 0.012% of iron content;
4. High intensity,the strength is 3-5 times of ordinary annealed glass
5. The wind pressure resistance is 1.5-3 times of ordinary annealed glass;
6. Heat shock resistance: the heat shock resistance is 3 times of ordinary annealed glass;
7. Safety:if it is broken, it usually breaks into relatively small pieces, which are less likely to cause serious injury.
Specifications:
Thickness: 3.2-4mm (3.2mm&4mm)
Max.size: 2250×3500mm (annealed glass)
1830×2600 mm(tempered glass)
We can produce any size which be lower than above size
Small order also can be accepted
Pattern: Matt/patterned, matt/matt, low iron float glass
Solar energy transmittance :( 3.2mm polished samples ISO9050/2003)
>=91.7%, without AR coating
>=94.7%, with AR coating
Iron Content: ≤120ppmFe2O3
Certificate: ISO,CCC,CE,AN/NZS2208,ROHS,etc
Send Inquiry to This Supplier
