Insulating Tempered Glass ( DOUBLE GLAZING GLASS) GB/T11944,CHINESE STANDARD

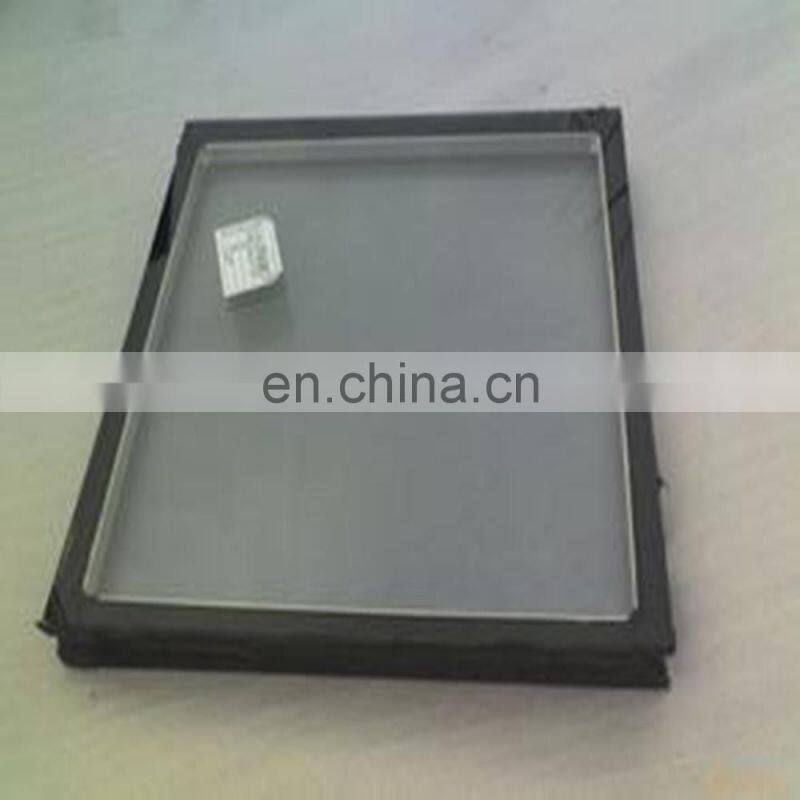

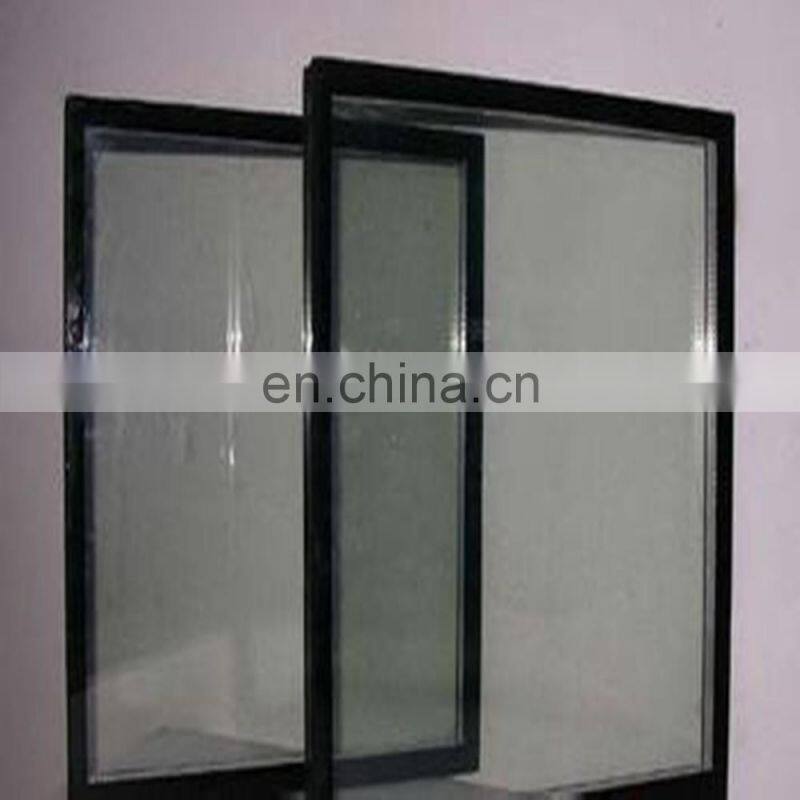

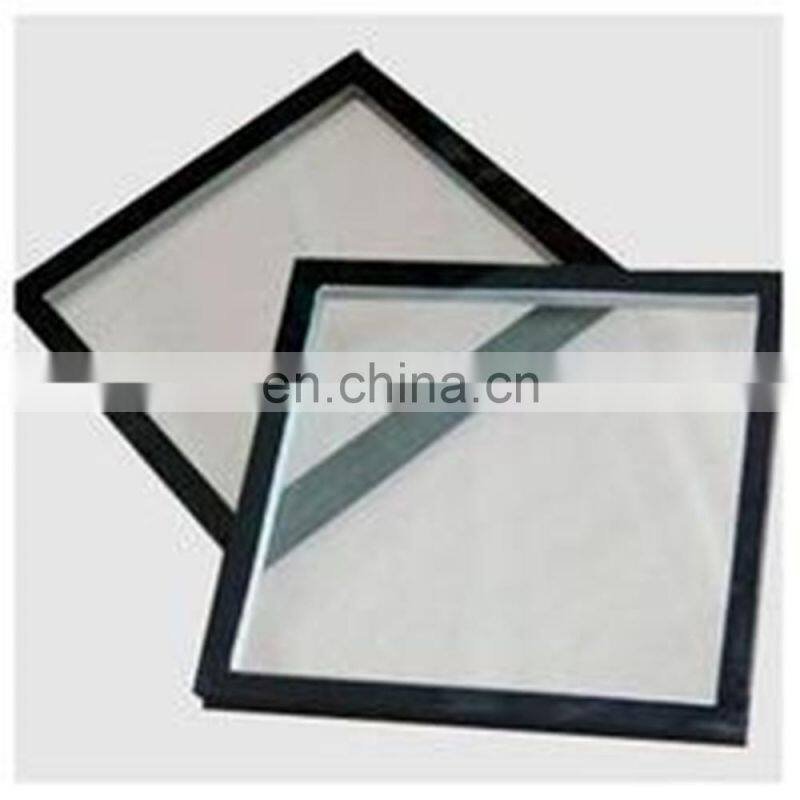

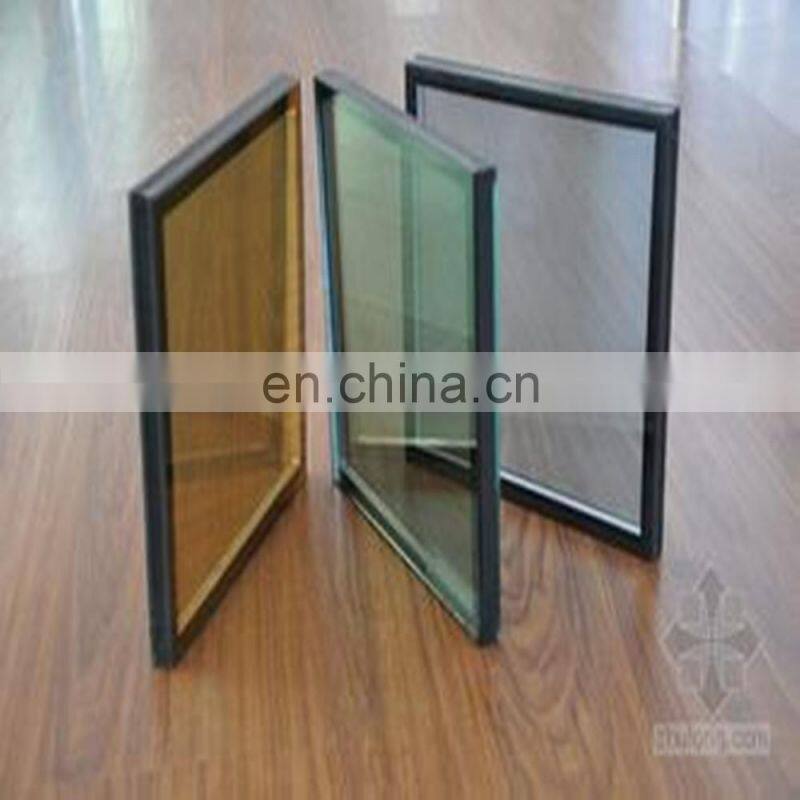

INSULATING GLASS (DOUBLE GLAZING GLASS)

insulating glass is made of two -sheet or mmulti-sheet of glass ,and the units are sealed by two process of sealing with hih strength together with aluminum spacer.

Characteristics:

energysaving:very low U value(=1.0w/mk )could be less if filled with insert gas,thus,reduce the heat transfer coefficient

Noise reduction:could reduce 30 decibels and diminish 5 decibel more if filled with inner gas

Anti-dew under even the temperature below -70C

under the conditions of same insulation effect,insulating glass can increase the ligting area, enhance interior comfort and simplify the building structure

Applications:

windows and doors in architecture

windows for train, airplane and ship

refrigerator/Freezer glass door

curtain wall

Types:

Glass types: float glass ,solar control coated glass ,tmpered glass, low e glass

gas types: air ,argon and other insert gases

Air space gap: 6A,9A,12A,15A,16A,16A,22A

thickness:3mm-19mm (single glass )

colors: clear ,ultra clear ,french green , dark green ,europ grey , dark grey , ford blue, dark blue, ocean blue, euro bronze ,dark bronze, golden, pink,etc.

MAx size:2400mmx5000mm(handmade except )

qualitystandard:GB/T11944,CHINESE STANDARD

                              ASTEM E2190.1AMERCIACAN STANDARD

                             DIN1286,GERMAN STANDARD
