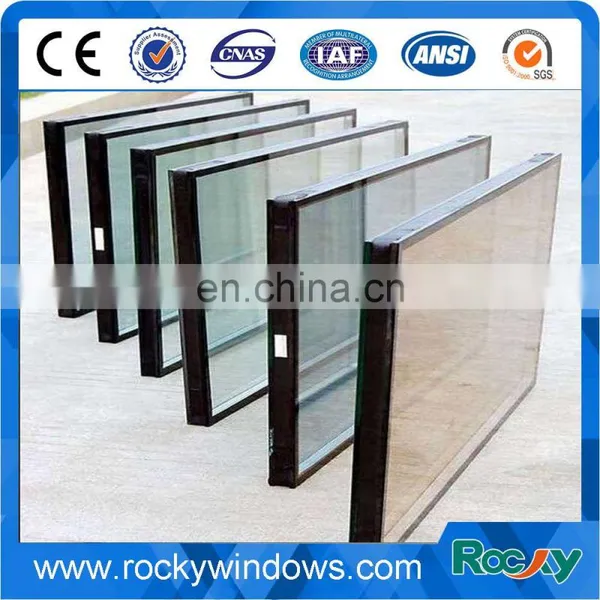

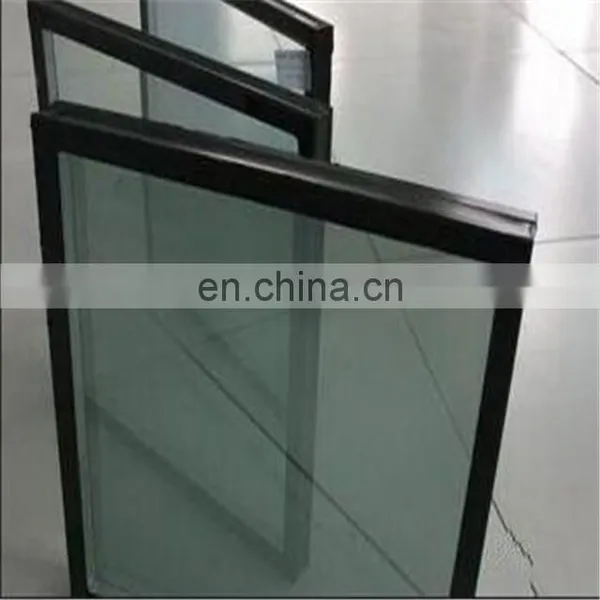

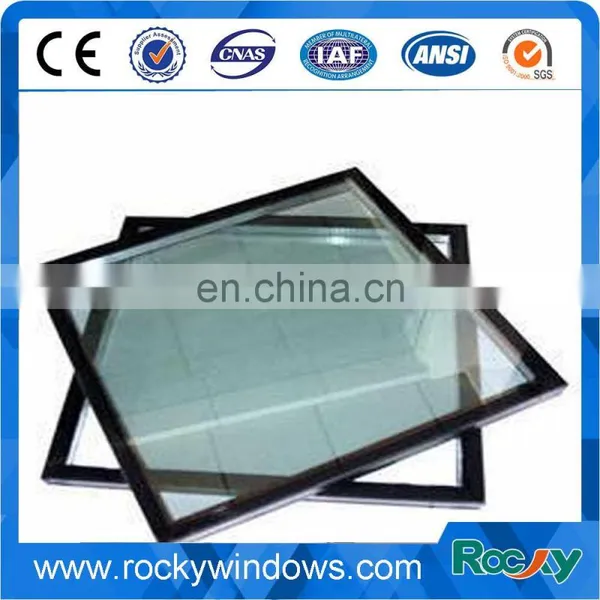

Tempered Hollow Glass, Igu, Insulated Glass
What is it ?
Insulating Glass is also called Insulated glass/Hollow glass/IGU/Double glazing glass and so on.
It is made of two or more pieces of glass sheets and used sealant gumming and aluminum spacers which was filled with desiccant together.
The hollow part is filled with dry air or inert gas with primary and secondary sealants.
Performance characteristics:
1. Thermal insulation
2. Light transmission
3. Noise insulation
4. Condensing prevention
5. Leak-proof
6. Hoarfrost and dew effect can be eliminated.
7. High wind pressure strength.
8. Not easy to be self exploded.
9. When choosing coated glass as the basal pieces, the coated layer will not come off.
Applications:
The insulated glass/ Hollow glass/IGU/Double glazing glass is widely used in glass curtain walls, facades, doors, windows and place with glass in automobile, refrigerator, ships, aircrafts and instruments.
Technical Data
| Product Name | Insulating Glass | |
| Common total glass thickness | 5+9A+5mm; 6+12A+6mm; 6+16A+6mm; 8+12A+8mm; 8+16A+8mm; etc | |
| Glass thickness | 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm,19mm | |
| Air/inert gas space width | 6mm, 9mm, 12mm, 15mm, 16mm, 19mm, 24mm | |
| Size | Max. Size | 3600mm * 18000mm |
| Min. Size | 300mm * 300mm | |
| Color |
Neutral, light blue, ford blue, dark blue, ocean blue, light gray, blue gray, light green, dark green, gold, bronze, etc |
|
| shape | Flat and curved/bent insulated glass | |
| Quality Standard | GB/T11944, Chinese standard | |
| EN 1279, European Standard | ||
| ASTM E 2190, American standard | ||
| Type |
Tempered insulating glass, laminated insulating glass, LOW E insulating glass, Color insulating glass, triple insulated glass, etc |
|
| Inert gas | Argon gas, etc | |
| Available spacer | Silver aluminum spacer, stainless steel, black warm spacer | |
PROJECT :
CERTIFICATE :
PACKING &LOADING :
OUR FACTORY :
