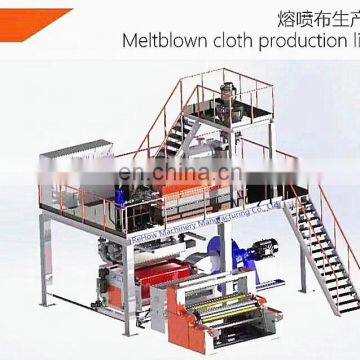

1600mm PP Melt blown Non Woven Fabric Production Line
|

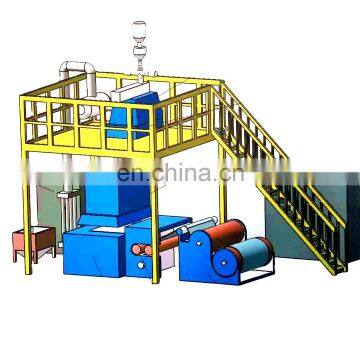

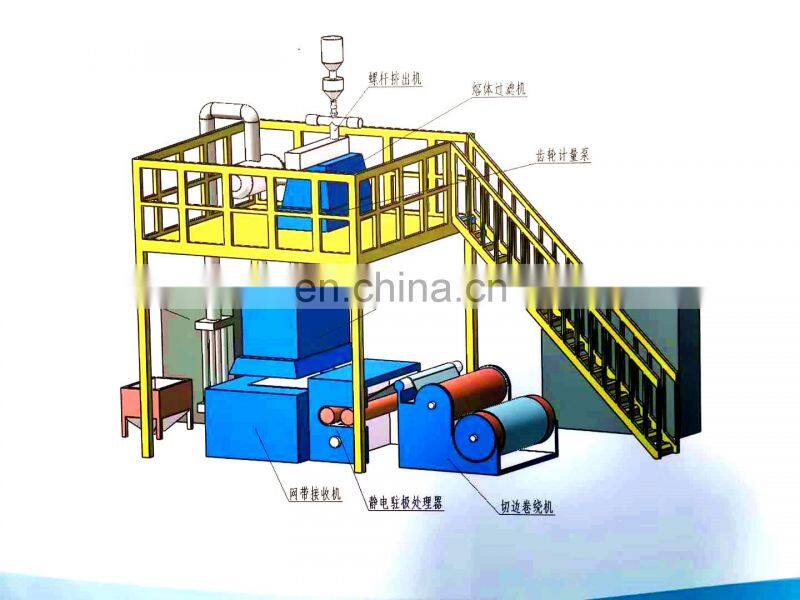

1600mm PP Meltblown Fabric Extrusion Machine List |
||
|
NO |
Item |
QTY |
|
1 |
Automatic material dosing system |
1 set |
|
2 |
Suction device |
1 set |
|
3 |
Screw extruder |
1 set |
|
4 |
Screen changer |
1 set |
|
5 |
Gear pump |
1 set |
|
6 |
Melt pipe |
1 set |
|
7 |
Combined melt-out die head |
1 set |
|
8 |
Hot-air system |
1 set |
|
9 |
Air heater |
1 set |
|
10 |
Suction fan |
1 set |
|
11 |
Connecting duct |
1 set |
|
12 |
Receive net |
1 set |
|
13 |

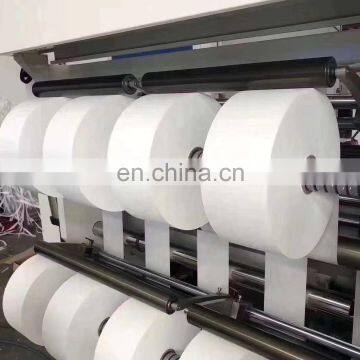

Automatic slitting and rewinding machine |
1 set |
|
14 |
Electric control system |
1 set |
Screw extruder machine
1. Screw diameter: dia100mm
2. Screw L/C: 30:1
3. Screw Material: 38CRMOAIA
4. Nitridation hardness: HV950-1100
5. Max extrude capacity: 120kg/h (grain material)
6. Center height: 550mm
7. Screw speed: 20-90r/min
8. Heating Section: 6 section
9. Heating KW: 4.6KWx6 sections=27.6kw(220v)
10. Driving Kw: 45KW/4 pole (INV adjust speed)
Melt Filter
1. Motor power: 1.5KW
2. Hydraulic control system:1set
3. Web diameter: dia100mm
4. Web Holes: 300 holes/inch
5. Melting capacity: 200kg/h
6. Melting running temperature: ≤300℃
Metering pump
1. motor: 3KW Inverter AC control
2. Pump flow: 500ml/r
3. Speed: 15~40r/min
4. Designed temperature: 280℃
5. Input pressure: ≥5±0.5MPa
6. Output pressure: ≤40MPa
Melting T die
1. Melting T die made from 1 hanger type distribution, out side heating
2. Melting T die designed temperature: 300℃
3. Melting T die designed pressure: 6MPA

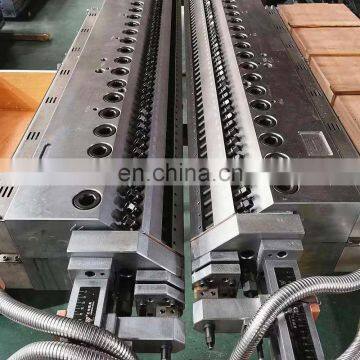

Spinnerets
1. Made from high temperature alloy material
2. Strip shape spinneret outlook size: 1970mmx210mm
3. Spinneret hole bore: 0.3mm(hole center distance 0.6)
4. Spinneret L/D: 12:1
5. Spinneret Hole Quantity: around 3833 pieces
6. Air chamber:1 piece
7. Circular air chamber: 1piece
8. Air press board: 2 pcs
9. Stand-ed air press board: 2pcs
10. Air flow speed: 200~340m/s
