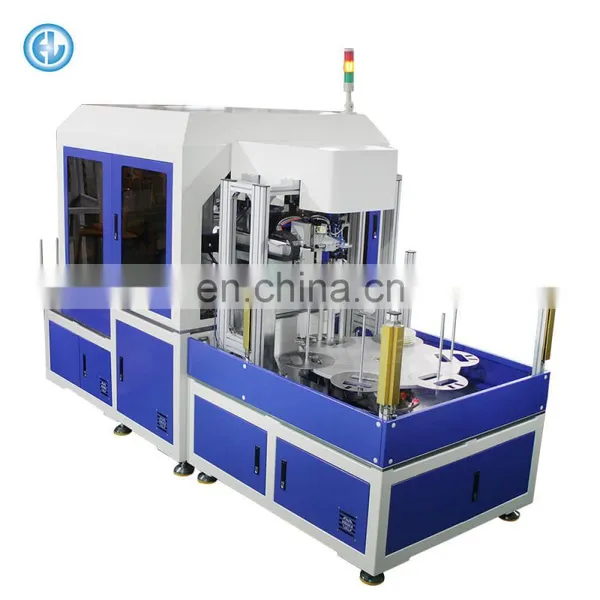

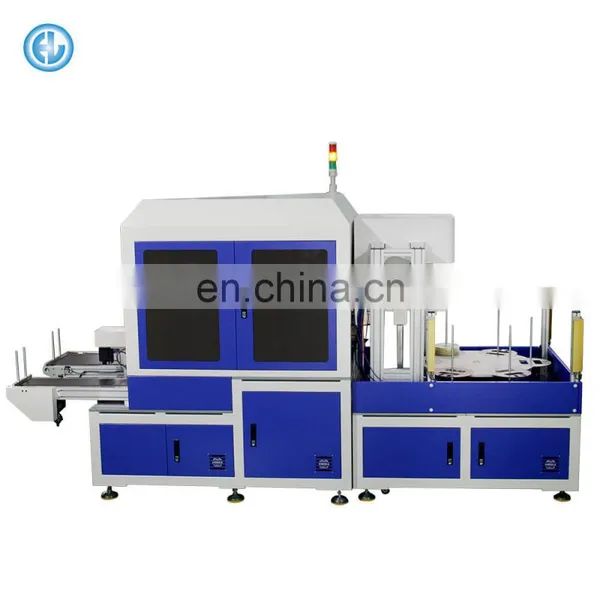

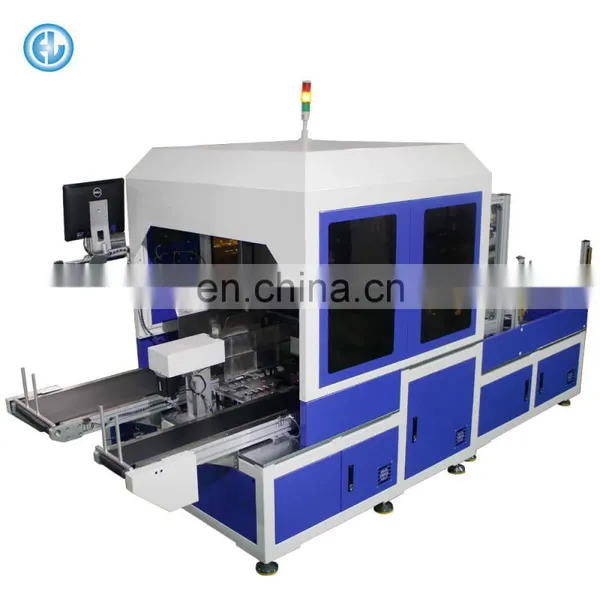

3C Electronic Industries Plate /Trays Labeling Machine

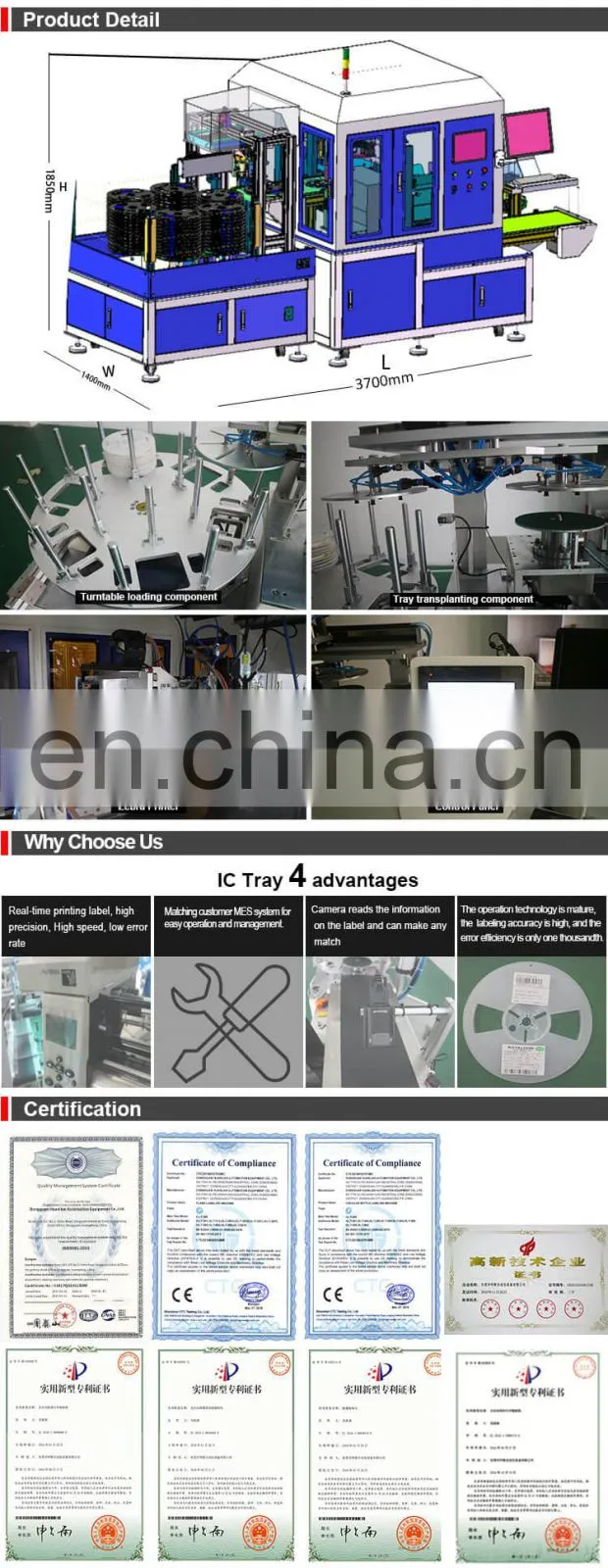

Product Name: 3C Electronic Industries Plate /Trays Labeling Machine

Suitable for scanning, printing and labeling of 7inch, 13inch trays, Adopting turntable feeding and conveying line for receiving materials

Our Advantages:

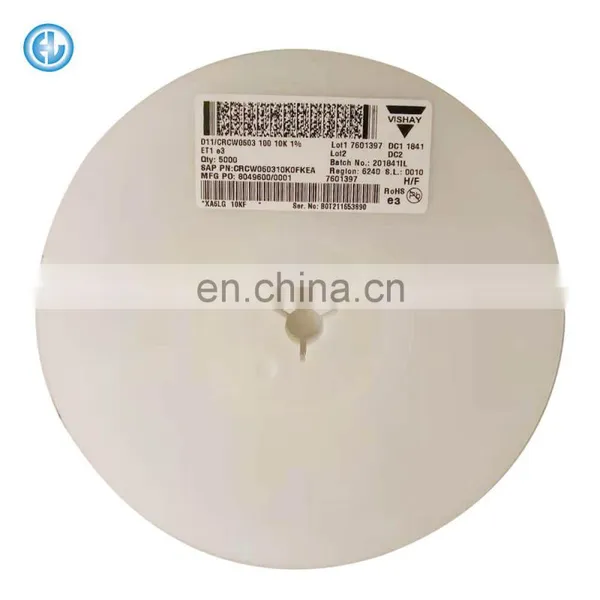

1.Compatible with 7inch, 13inch trays, diameter 180mm-330mm

2.Use CCD vision system to read code and identify various code systems on the label, including 1D code and 2D code.

3.Can identify a single label or multiple labels on the same disk

4.The software is connected with the MES communication, and the camera scans the 1D code and the QR code and uploads the MES system according to the format provided by the MES.

5.Check the printed label. The camera scans the printed label against the data returned by the MES system to check if the label is correct.

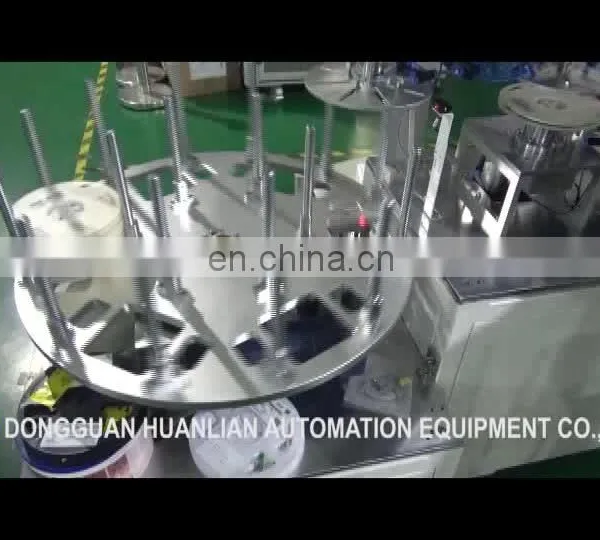

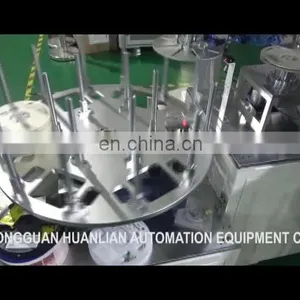

1.Manually put the product into the loading turntable

2.The turntable rotates to reach the loading position, and the lifting mechanism holds the tray up

3.The suction cup on the tray transplanting component sucks up the tray and puts on the tray correction component

4.The correction mechnaism Rotates, after arriving at the correct tray position, the transplanting component will take the tray away and put in the front belt line

5.The front belt line rotates, and the front CCD scans the code and uploads the information.

6.If the factory code is NG, the front NG tray recycling component pushes the tray into the NG box. If it is OK, continue on

7.After the loading turntable is full, manually remove the affixed tray

8.The suction cup on the transplanting and unloading component sucks up the tray and puts it into the blanking turntable.

9.If the printed code is NG , it will pushes the tray into the NG box. If it is OK code, it will flow to the end of the belt line

10.After the labeling is completed, the stopper cylinder is raised, the tray continues to move forward, the rear CCD scans the printed label and start to compared the informaiton.

 Click here for more than discount

Dongguan Huanlian automation equipment Co. Ltd, locates in Dongguan where the national light industry equipment manufacturing industry is the most developed, committed to the development of labeling machine automation technology, professional , and focuses on automatic labeling machine and ancillary equipment research and development, design, production, sales and service. In order to follow up the business development needs, we has set up East China branch: Shanghai good Yao automation equipment Co., Ltd., North China branch: Ji'nan branch automation equipment Co., ltd..

Since the company was founded , we has been adhering to the "the purpose of development of science and technology is the first productivity", "quality as the enterprise survival lifeline", constantly absorbing the advanced automation technology at home and abroad, the development of new models, optimization of labeling technology, and expanding the size of the company. With continuous innovation, and more than 9 years of design and production experience, with high quality equipment, and the support of a full range of customers, our company has now developed into professional labeling machine manufacturers in large scale with an area of 10000 square meters, more than 100 employees, and become the core of enterprises producing professional labeling machines.

1) Q:Are you a factory or trading company

   A:Yes,We are the manufacturer,Our company is engaged in the labeling machine industry for more than ten years

2) Q:Where are your products distributed?

   A:Our products are distributed all over the world,Manin market are Europe,Noth America,The united Arab emirates,Africa and so on.

3) Q:Which port is the nearest from you?

   A:Shenzhen port

4) Q:What’s your lead time?

    A:Normally 15-25days after we receive your deposit.

5) Q:We are afraid you won’t deliver us the machine after we pay you the money?

A:Please note our above business license and certificates,and if you don’t trust us,you can use Alibaba’s trade assurance service or by L/C.

6) Q:How are you after sale service?

A:Free replancement of spare parts within the warrenty period(1year).
