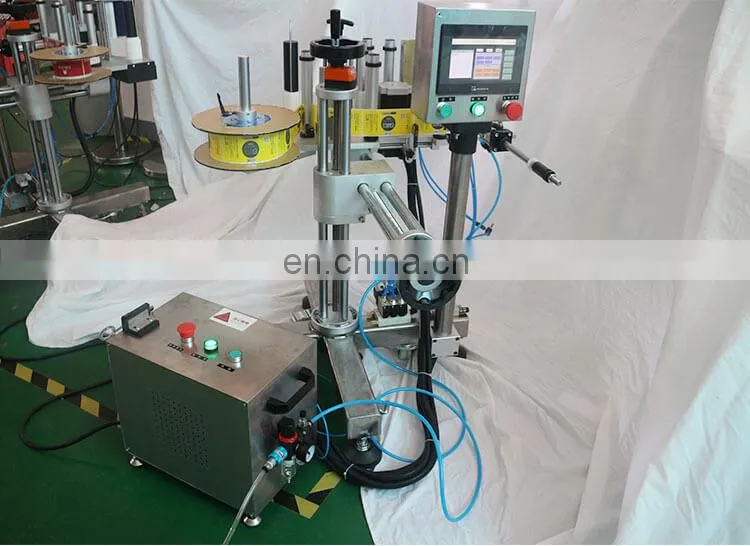

Product name:Packaging Production Line Automatic Labeler , Single Labeling Machine Heads
Basic Application
Suitable for high-speed labeling line with wider width,The labeling speed is up to 100m/min. Such as:supporting folder gluer, carton forming process to achieve a good label affixed
Technical Parameter
| Model | HL-T-9041 | |
| Labeling Accuracy | ±0.1mm | |
| Labeling Speed | 30-120pcs/min | |
| Applicable Dimensions | Length | Length:6mm~250mm |
| Width | Width:20mm~130mm | |
| Height |
Outer Diameter(mm):φ250 Inner Diameter(mm):φ76mm |
|
| Applicable Labe Size | No requirements (depending on production line parameters) | |
| Power Supply | 220V/50HZ | |
| Weight | 70KG | |
| Machine Size(LxWxH) | About 3000mm x 1450mm x 1600mm | |
| Delivery Time | 25ays | |
| Type | Manufacture, Factory,Suppier | |
| Packaging | Wooden box | |
| Shipping Method | Sea.Air and Express | |
| Payment Term | L/C,T/T,Money Graml etc | |
Characteristics of Function

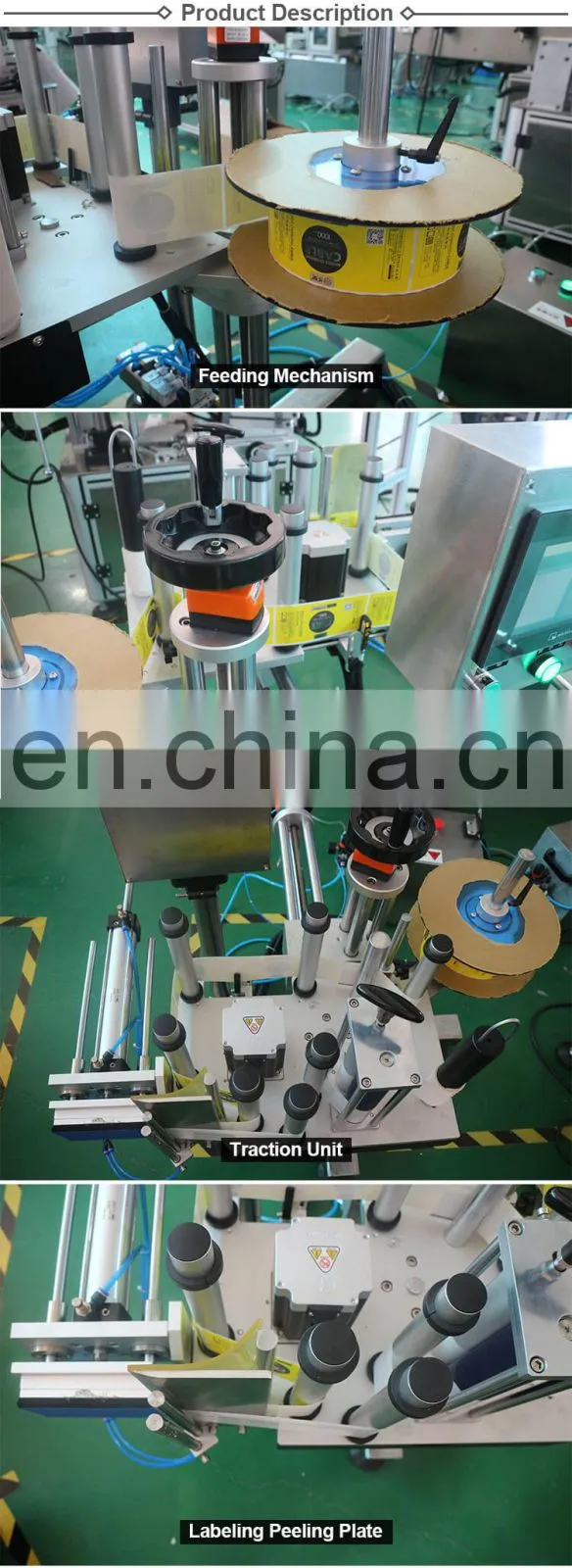

1.Core working principle:The sensor detects the signal to return products after labeling control system, signal processed by PLC,posted at the appropriate time send label attached to the product set position, products covered through the calibration device,label coated firmly, a label attached to complete action.
2.imple supporting: this device be directly installed on the assembly line and the packaging machine; it can be controlled independently or collectively for automatic labeling;
3.Flexible application: different label covering mechanisms are equipped for labeling on both even and uneven surfaces;
4.Convenient adjustment: the adjusting structure uses single rod; labeling header can be spherically adjusted in six positions to flexibly match different production lines;
5.High labeling precision: label strip rounding rectifier can prevent left or right offset of labels; fine-stepping-motor-driven label delivering ensures high accuracy of positioning in fore-and-aft direction;
6.Intelligent control Automatic photoelectric tracking that avoids idle labeling while correcting and detecting labels automatically, so as to prevent mislabeling and label waste;
7.Touch screen operation interface complete Chinese notes and improve the fault warning function, a variety of parameters to adjust the simple and quick, easy to operate;
8.High stability PLC+ touch screen + Panasonic Panasonic needle + Germany Matsushita Electric eye Leuze label consisting of senior electric eye control system, support equipment 7 x 24 hour operation;
|
| ||
|
|
|
|
|
|
Up till now, we has mastered the most comprehensive technology in the labeling machine industry, including round bottle labeling machine series, plain labeling machine series, side labeling machine series, top &bottom labeling machine series,the series of online printing labeling machine, scanning instant print labeling machine series, high accuracy labeling machine series,
FAQ
1) Q:Are you a factory or trading company
A:Yes,We are the manufacturer,Our company is engaged in the labeling machine industry for more than ten years
2) Q:Where are your products distributed?
A:Our products are distributed all over the world,Manin market are Europe,Noth America,The united Arab emirates,Africa and so on.
3) Q:Which port is the nearest from you?
A:Shenzhen port
4) Q:What’s your lead time?
A:Normally 15-25days after we receive your deposit.
5) Q:We are afraid you won’t deliver us the machine after we pay you the money?
A:Please note our above business license and certificates,and if you don’t trust us,you can use Alibaba’s trade assurance service or by L/C.
6) Q:How are you after sale service?
A:Free replancement of spare parts within the warrenty period(1year).
|
|
