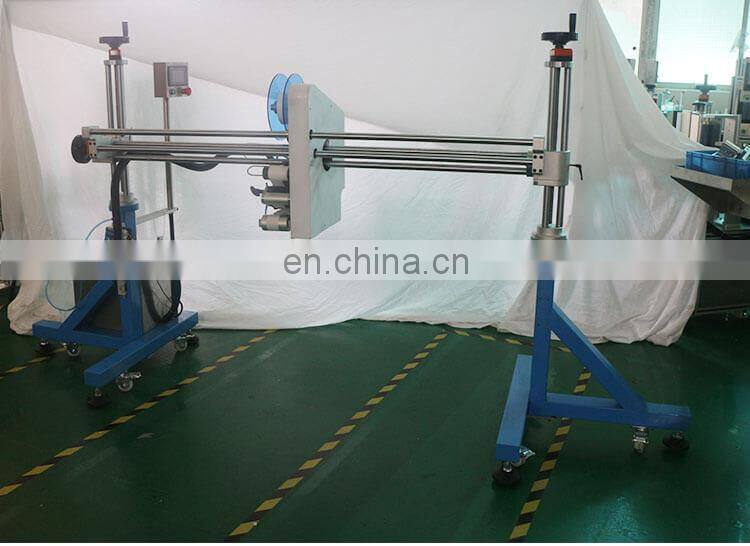

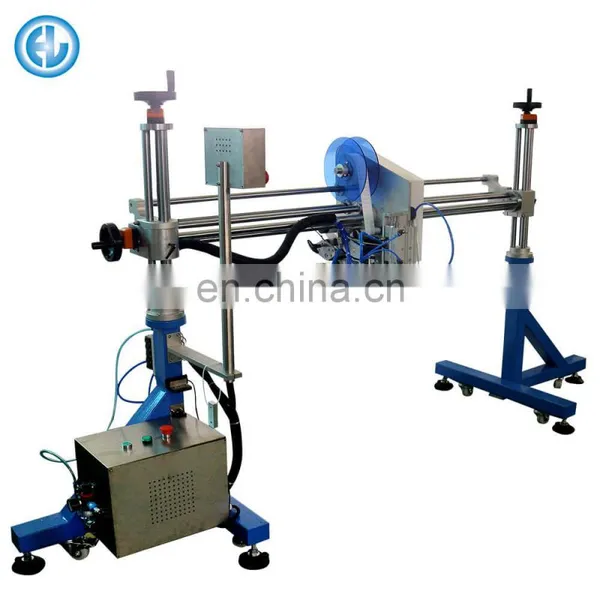

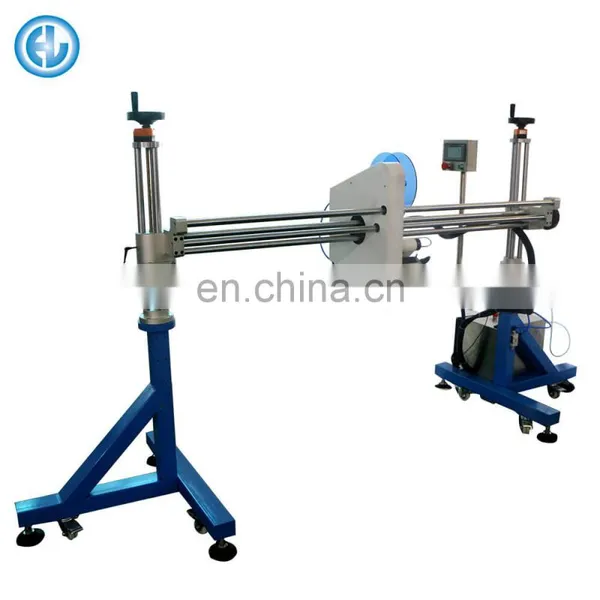

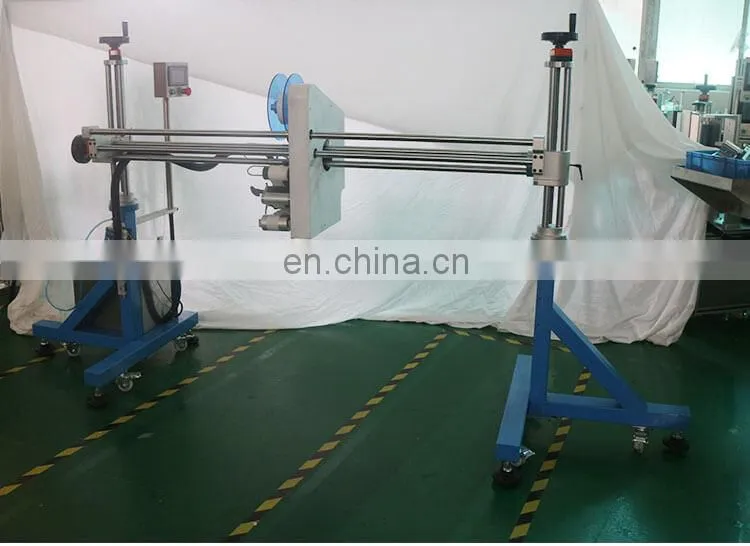

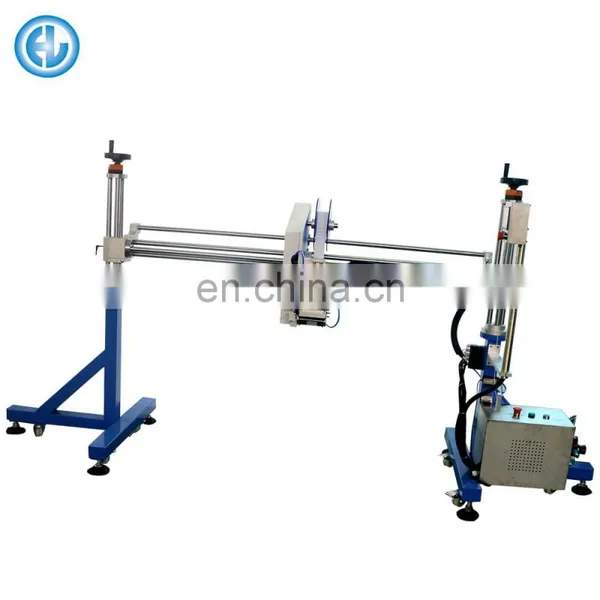

Product Name:Automatic Gantry One Header Top Surface Online Labeling Machine
Basic Application
HL-T-903 Applicable to supporting the use of larger width of the pipeline using both ends of the gantry support,
so that more secure labeling body, the performance is more stable ,you can increase the header section.
Such as: double-headed gantry labeling machine, paste double-row labels
Technical Parameter
| Model | HL-T-903 | |
| Labeling Accuracy | ±1mm | |
| Labeling Speed | Step:30-150pcs/min Servo:40-400pcs/min | |
| Applicable Dimensions | Depends on the pipeline delivery parameters | |
| Applicable Labe Size | Length | 6-160mm |
| Power Supply | 220V/50HZ | |
| Weight | 70KG | |
| Machine Size(LxWxH) | About 1300mm x 700mm x 1450mm | |
| Delivery Time | 10-15 Days | |
| Type | Manufacture, Factory,Suppier | |
| Packaging | Wooden box | |
| Shipping Method | Sea.Air and Express | |
| Payment Term | L/C,T/T,Money Graml etc | |
|
| ||
|
|
|
|
|
|
Characteristics of Function:
Core working principle:The sensor detects the signal to return products after labeling control system, signal processed by PLC,posted at the appropriate time send label attached to the product set position, products covered through the calibration device, label coated firmly,a label attached to complete action.
imple supporting: this device be directly installed on the assembly line and the packaging machine; it can be controlled independently or collectively for automatic labeling;
Flexible application: different label covering mechanisms are equipped for labeling on both even and uneven surfaces;
Convenient adjustment: the adjusting structure uses single rod; labeling header can be spherically adjusted in six positions to flexibly match different production lines;

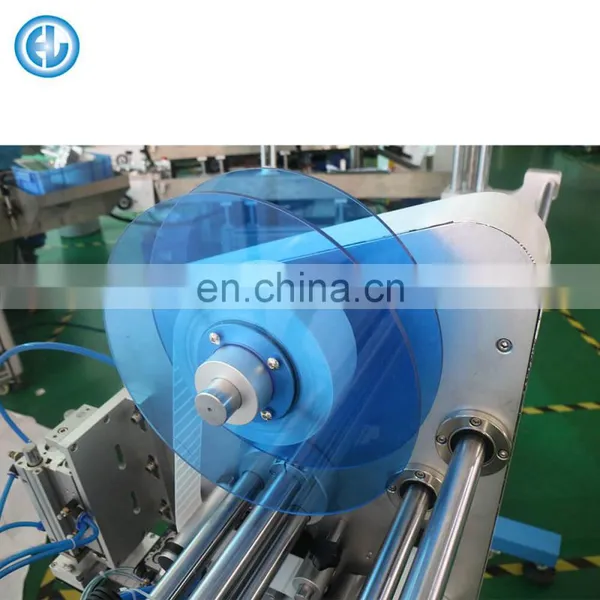

High labeling precision: label strip rounding rectifier can prevent left or right offset of labels; fine-stepping-motor-driven label delivering ensures high accuracy of positioning in fore-and-aft direction;
Intelligent Control automatic photoelectric tracking that avoids idle labeling while correcting and detecting labels automatically,so as to prevent mislabeling and label waste

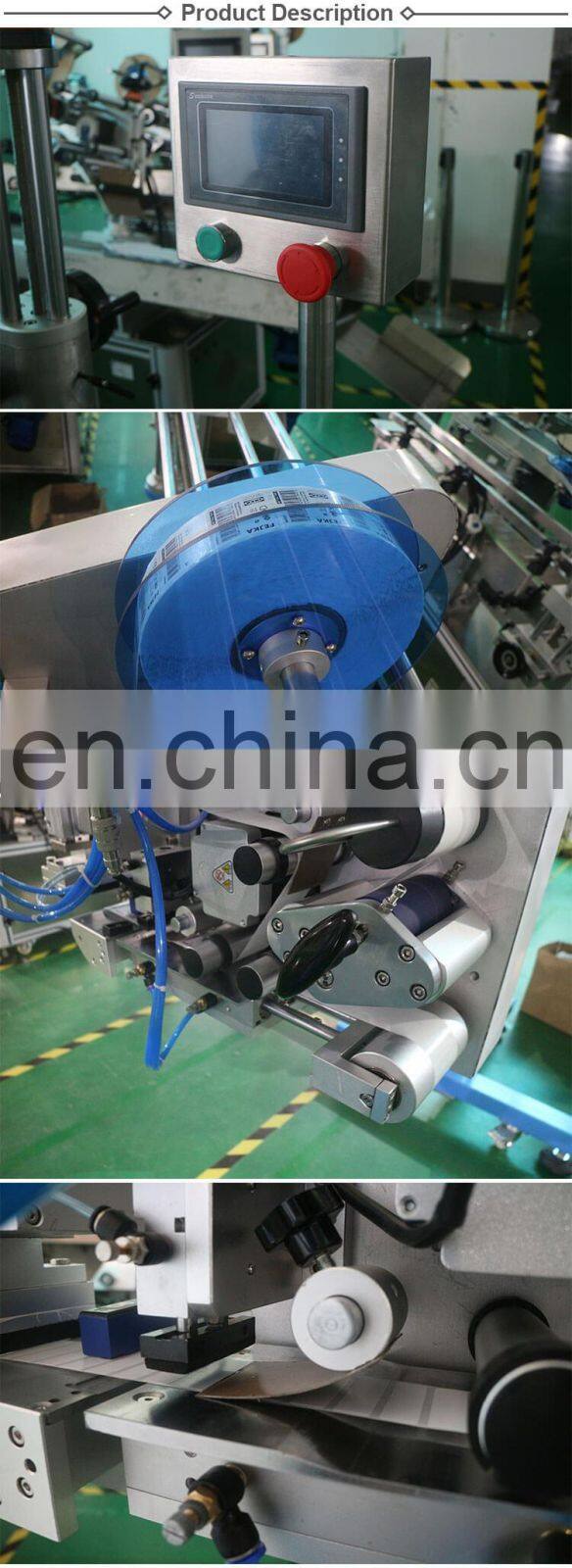

Touch screen operation interface complete Chinese notes and improve the fault warning function, a variety of parameters to adjust the simple and quick, easy to operate;
High stability PLC+ touch screen + Panasonic Panasonic needle + Germany Matsushita Electric eye Leuze label consisting of senior electric eye control system,support equipment 7 x 24 hour operation;
Dongguan Huanlian automation equipment Co. Ltd, locates in Dongguan where the national light industry equipment manufacturing industry is the most developed, committed to the development of labeling machine automation technology, professional , and focuses on automatic labeling machine and ancillary equipment research and development, design, production, sales and service. In order to follow up the business development needs, we has set up East China branch: Shanghai good Yao automation equipment Co., Ltd., North China branch: Ji'nan branch automation equipment Co., ltd..
Since the company was founded , we has been adhering to the "the purpose of development of science and technology is the first productivity", "quality as the enterprise survival lifeline", constantly absorbing the advanced automation technology at home and abroad, the development of new models, optimization of labeling technology, and expanding the size of the company. With continuous innovation, and more than 9 years of design and production experience, with high quality equipment, and the support of a full range of customers, our company has now developed into professional labeling machine manufacturers in large scale with an area of 10000 square meters, more than 100 employees, and become the core of enterprises producing professional labeling machines.
Up till now, we has mastered the most comprehensive technology in the labeling machine industry, producing 70 kinds of labeling machine, including round bottle labeling machine series, plain labeling machine series, side labeling machine series, top &bottom labeling machine series, the series of online printing labeling machine, scanning instant print labeling machine series, high accuracy labeling machine series, and has developed hundreds of customers for cosmetic, medicine, food, wine, electronics, hardware, automobile, printing, plastics, stationery and other industries service, fulfilling the automation of different product labels, and making due contributions to the development of China's automation.
FAQ
1) Q:Are you a factory or trading company
A:Yes,We are the manufacturer,Our company is engaged in the labeling machine industry for more than ten years
2) Q:Where are your products distributed?
A:Our products are distributed all over the world,Manin market are Europe,Noth America,The united Arab emirates,Africa and so on.
3) Q:Which port is the nearest from you?
A:Shenzhen port
4) Q:What’s your lead time?
A:Normally 15-25days after we receive your deposit.
5) Q:We are afraid you won’t deliver us the machine after we pay you the money?
A:Please note our above business license and certificates,and if you don’t trust us,you can use Alibaba’s trade assurance service or by L/C.
6) Q:How are you after sale service?
A:Free replancement of spare parts within the warrenty period(1year).
|
|
