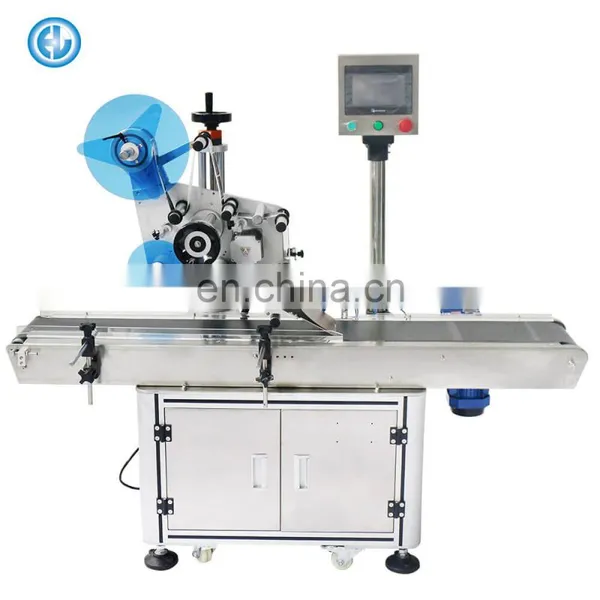

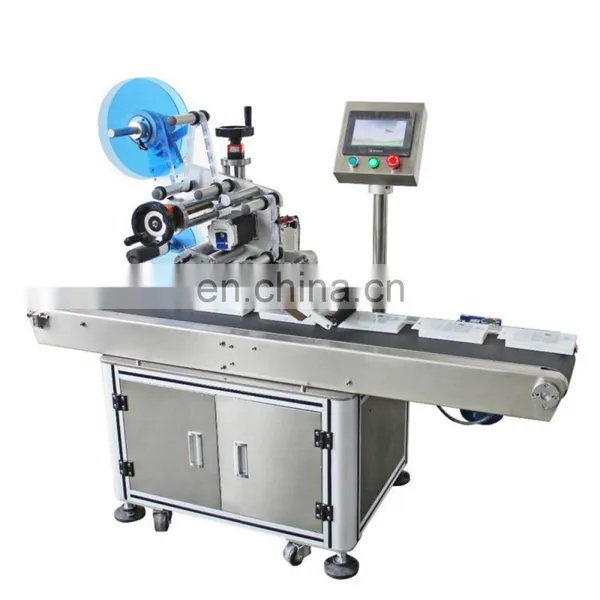

Factory Automatic Labeling Machine With Date Printer T300

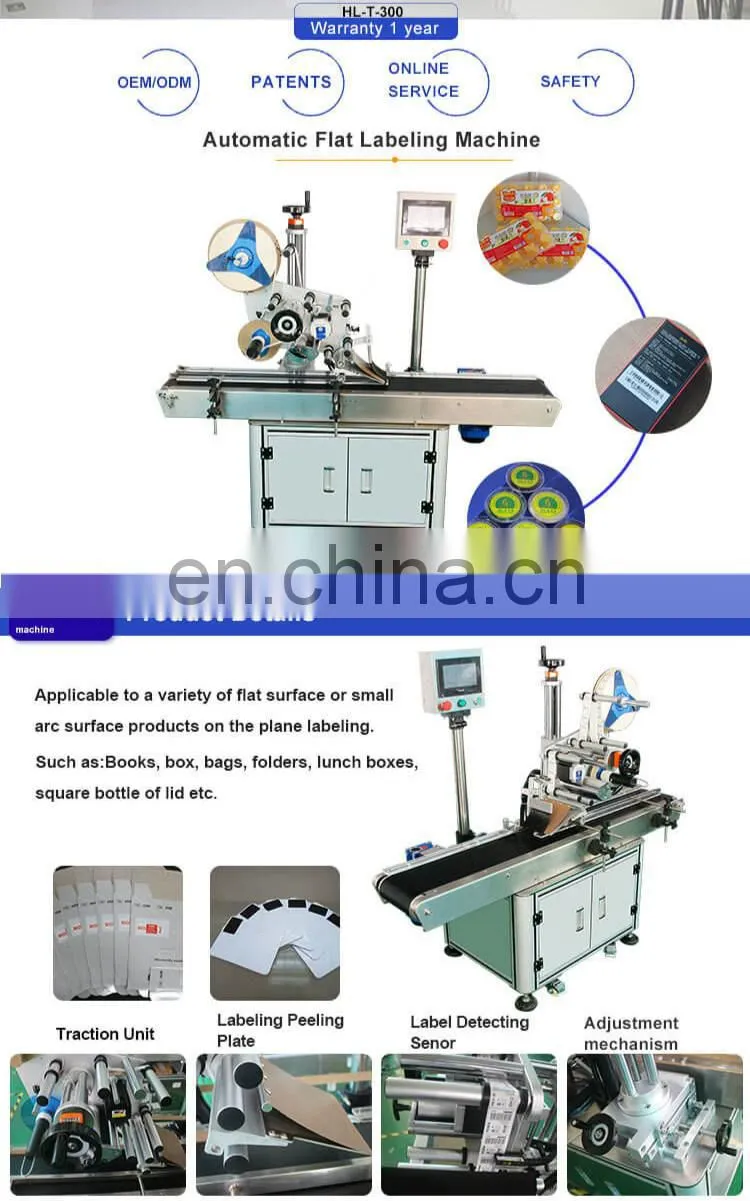

HL-T-300 Automatic card labeling machine be exclusively used in all kinds of cards labeling and all kinds of plastic surface sheets,protection film Labeling,High precision, no bubble film; have the automatic identification function is enabled automatically according to the different products with different label head work.Core working principle:The sensor detects the signal to return products after labeling control system, signal processed by PLC, posted at the appropriate time send label attached to the product set position, products covered through the calibration device, label coated firmly, a label attached to complete action
| Model | HL-T-300 | |
| Labeling Accuracy | ±1mm | |
| Labeling Speed | 40-150pcs/min | |
| Applicable Dimensions | Length | 40mm-400mm |
| Width | 40mm-200mm | |
| Height | 0.2mm-150mm | |
| Applicable Labe Size | Length | 6mm-250mm |
| Width | 20mm-160mm | |
| Power Supply | 220V/50HZ | |
| Weight | 180KG | |
| Machine Size(LxWxH) | About 1600mm x 780mm x 1400mm | |
| Delivery Time | 10Days | |
| Type | Manufacture, Factory,Suppier | |
| Packaging | Wooden box | |
| Shipping Method | Sea.Air and Express | |
| Payment Term | L/C,T/T,Money Graml etc | |
Wide application scope: support labeling on all kinds of cards, paper sheets, and unfolded cartons;
Speedy card sorting and labeling: for monitoring code labeling on drug cases, production speed can reach 200 articles/minute or above;
Stable card sorting: advanced sorting - reverse thumbwheel technology is used for card sorting; the sorting rate is much higher than common card sorting mechanisms;
Stable labeling accuracy: coping wheel is used for smoothing work piece, stable delivery, warping removing and accurate labeling; the sophisticated design of adjustment part, the label rounding and optional six positions for labeling make product change and label rounding simple and time-saving;
Intelligent control Automatic photoelectric tracking that avoids idle labeling while correcting and detecting labels automatically, so as to prevent mislabeling and label waste;
High stability PLC+ touch screen + Panasonic Panasonic needle + Germany Matsushita Electric eye Leuze label consisting of senior electric eye control system, support equipment 7 x 24 hour operation;
Automatic shutdown: labeled bottles numbering, power saving (the device will automatically change into standby mode if no labeling is detected within a given time), indication of labeled bottles and protection of parameter setting (hierarchical authority to parameter setting) bring much convenience to production and management
Technical parameters: The technical parameters of the standard model are shown as follows. Customization is available if there are any particular requirements of functions.
Click here to ask more info about the quote and the catalog
Our service
Pre-sales Services:
1.Over 5,000 professional labeling video,give you direct feeling about our machine.
2.Free labeling solution from our chief engineer.
Medium-sales Services:
Huanlian have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
After-sale Services:
1. Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Huanlian engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guranty for machine, two years guaranty for electrical part. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Huanlian has an independent team for after-sale service. Any emergency please call the saleman or our after-sale's manager.
More Related
|
|
|

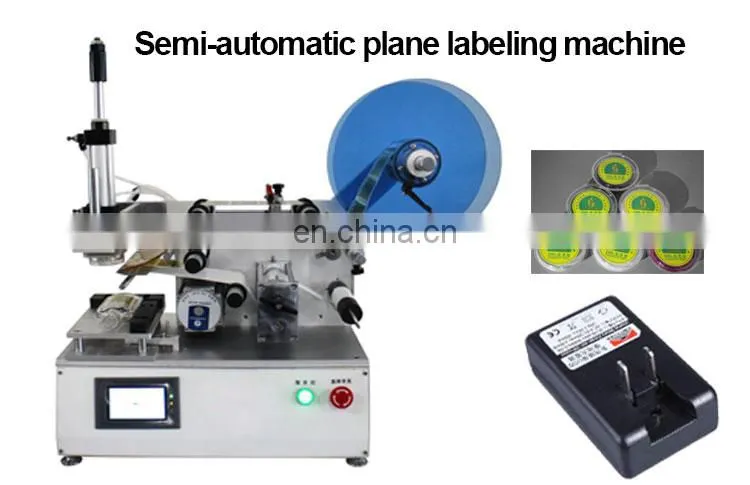

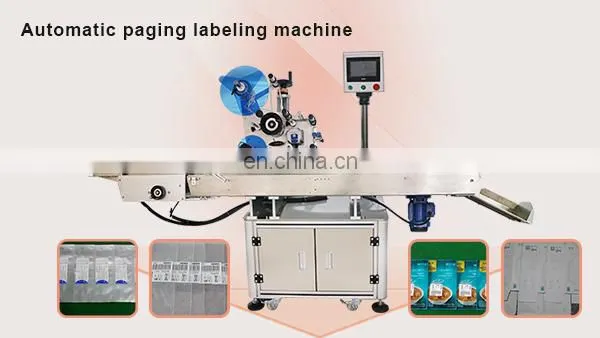

| Manual Plane Labeling Machine | Automatic Paging&Labeling Machine with Printing Barcode |
