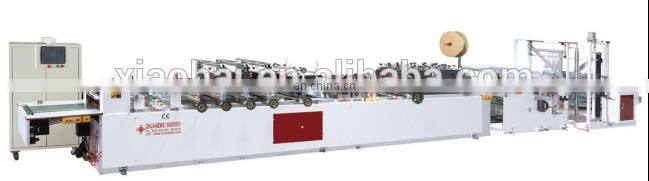

Three Sides Sealing Stand up and Zipper Bag Making Machine

wooden box

1, Characteristic of the machine:

     This machine has excellent processing, beautiful figure, reasonable structure, the whole machine running stable, low noise; convenient for adjustable zipper, nicety for standing machine punching, high speed. Adopts industrial control level computer and auxiliary double-servo control system, humidity centralized controlled by pattern theory computer, reduce the electro, temperature controlled exactly. Main-feeding and double standing bottom-folded feeding adopt constant tension control system, keeping the stable of feeding and exactly of standing punching. Middle-tension float-roller adopts dynamic compensatory pattern, reduce the up-down wave in the progress of feeding, middle tension controlled stable, traverse sealing and non-color standing bag arc bottom hot knife impressing lap over, well stability. The bound of feeding error correct can be enactment, and has a linkage with the mainframe.

2, Technical Variables:

1) Bag making function: three side sealing, and zipper bag etc…

2) Main electric scheme 3pcs servo motor for traction, with PLC used panasonic from Japn., Touch Screen from Taiwan; main driving is alternating current with yaskawa from JAPAN Transducer, automatic constant tension for unwinding.

3) Suitable material: this machine is suitable for producing multi-layer three side sealing laminated film, plating ALU laminated film, paper-plastic laminated film, pure-ALU laminated film which takes BOPP, CPP,PET, ALU, and Nylon etc plastic laminated film as base material.

4) The speed of machine: 150 hypo-minute

5) The speed of feeding: ≤35 m/min (decided according the material)

6) The length of bag making: 380mm, excess this data adopts skip material feeding (Max. skip material

feeding is 6)

Max, width: 380mm  ( after fold size of raw material)  (CWZD-400B)

Max width :480mm  ( after fold size of raw material) (CWZD-500B)

Max width :580mm  ( after fold size of raw material) (CWZD-600B)

7) The dimension of roll material:600*800mm (diameter* web-width)   (CWZD-400B)

             650*1000mm , (diameter* web-width) (CWZD-500B)

             650*1200mm , (diameter* web-width) (CWZD-600B)

8) Accuracy of orientation: ≤± 0.5mm

9) Thermal-sealing knife’s quantity of heat:

1. Vertical-sealing adopts 5 groups for heating fluctuation, cooling fluctuation from up and down..

2. bottom sealing adopt 3 groups heating fluctuation, 1 group for cooling fluctuation.

10) The quantity of temperature heating:14(CWZD-400B)

                    16(CWZD-500B)

                                    18 (CWZD-600B)

11) The bound of temperature: 0-300 ℃

12) Total power:36kw  (CWZD-400B)

   Total power: 38kw  (CWZD-500B)

   Total power: 40kw  (CWZD-600B)

13) Overall Dimension: (L*W*H) 9800×1850×2000mm  (CWZD-400B)

   Overall dimension (L*W*H) 9800X1950 X2000mm (CWZD-500B)

   Overall dimension (L*W*H) 9800X2050 X2000mm (CWZD-600B)

14) Weight of machine: About 3800 kg  (CWZD-400B)

     About 4000KG —(CWZD-500B)

     About 4200KG —(CWZD-600B)

15) Color: white of cover, white blue of fuselage+ red door

16) The type of control system: SSF-Ⅱ High speed laminating film bag making machine control system

17) solid state relay: 14 pcs   (CWZD-400B)

   Solid state relay: 16pcs—(CWZD-500B)

   Solid state relay: 20pcs—(CWZD-600B)

3,Main device of the list:
