Fully Automatic Paper Lunch Box Making Machine Price

 Description:

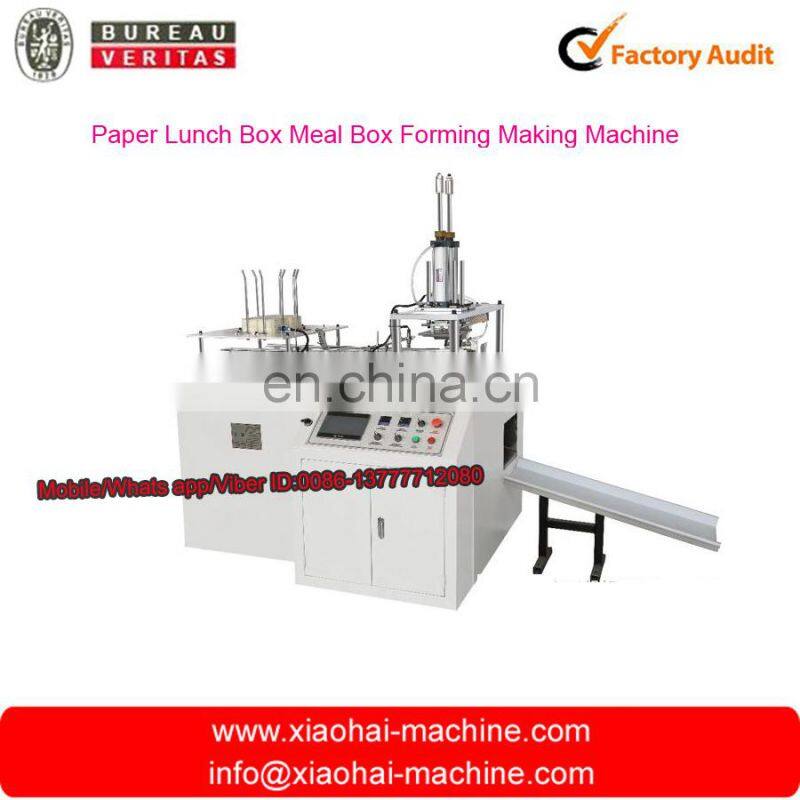

J-CHL Paper Meal Box Forming Machine is an automatic machine with the advantage of fast speed, easy operation and maintenance. It adopts ceramic hot air (hot air generator) sealing the box 4-corner, which makes it is available for single PE coated paper and double PE coated paper.
It makes single-case/compartment paper meal box after running the whole procedure of auto paper feeding, heating (hot air, by hot air generator) and forming shape (seal the 4-corner of the lunch box), auto transfer to the connection.
Easy exchange molds to make different size paper lunch box, take-away box, paper meal box, paper food container, paper food case, paper food box, paper food pail, paper food tray, paper chip tray, etc.

Technical Specification
Paper Lunch Box Size : Regular size (mold exchangeable);
Raw Material : One-side or two-side PE/PLA film coated/laminated paper;
Suitable paper weight : 150~450gsm;
Speed : 40~50 boxes/minute; (about 2400~3000 box/hour);
Total Power : 5 KW;
Power Source : 220V 50Hz or other required;
Total Weight : 700 KG;
Package Size : (L x W x H) : 1650 x 1150 x 2100 mm;
Working Air Source : Air Pressure: 0.8Mpa,
Air Out-put : 1 m3/minute; (Need to buy air compressor)
Available to design special machine or mold against the client requirement.

1. Adopt ceramic hot air (install hot air generator) to sealing the box 4-corner,
2. Available for 1PE and 2PE paper,
3. Import air-cylinder (air piston), quality valve to keep the machine fast speed;
4. Only making single-case/compartment box/tray.

* Note:
Use one-side PE coated paper or two-side PE coated paper, the mold a little different in the corner welding;
Use one-side PE paper, the paper cutting design different at the corner.
